Integrated Circuit Single Chip 2.4 GHz Transceiver IC Nrf2401AG

Name: Integrated Circuit Single Chip 2.4 GHz Transceiver IC Nrf2401AG
Brand: all-electronics-online.com
SKU: 797088255
Availability: InStock
Rating: 5 (93 reviews)

Price:	US $ 1.5-3.5/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	NRF2401AG
Number Of Transmitters:	1
Number Of Receivers:	1
Maximum Data Rate:	1Mbps
Minimum Operating Temperature (°c):	-40
Maximum Operating Temperature (°c):	85
Typical Single Supply Voltage (V):	3
Minimum Single Supply Voltage (V):	1.9
Maximum Single Supply Voltage (V):	3.6
Maximum Supply Current (Ma):	10.5
Power Supply Type:	Single

Product Description

Hello, Thank you for your visiting!

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can achieve WIN-WIN cooperation.

Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require

MANUFACTURER
Nordic Semiconductor

PRODUCT CATEGORY
Transceivers Misc

DESCRIPTION
Transceiver 1TX 1RX 1Mbps 24-Pin QFN EP

Specifications
EU RoHS Compliant
Type Transceiver
Number of Transmitters 1
Number of Receivers 1
Maximum Data Rate 1Mbps
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Typical Single Supply Voltage (V) 3
Minimum Single Supply Voltage (V) 1.9
Maximum Single Supply Voltage (V) 3.6
Maximum Supply Current (mA) 10.5
Power Supply Type Single
Temperature Grade Industrial
Mounting Surface Mount

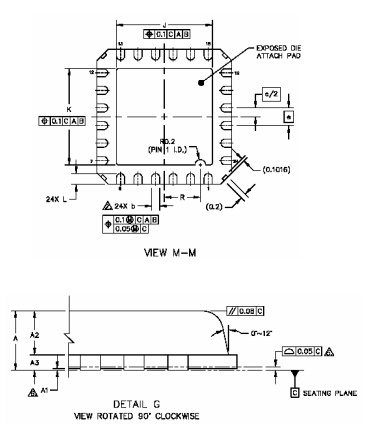

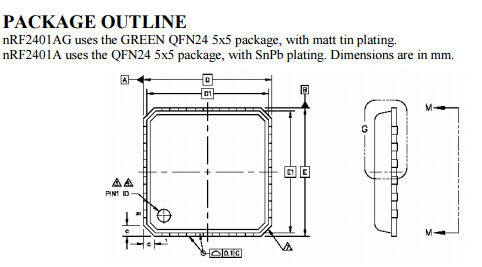

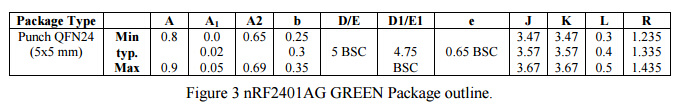

Package Height (mm) 0.83
Package Length (mm) 5
Package Width (mm) 5
PCB changed 24
Standard Package Name QFN
Supplier Package QFN EP

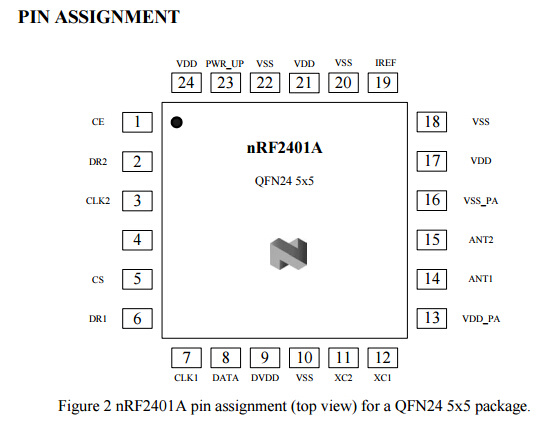

Pin Count 24
Lead Shape No Lead

FEATURES
True single chip GFSK transceiver in a small
24-pin package (QFN24 5x5mm)
Data rate 0 to1Mbps
Only 2 external components
Multi channel operation
• 125 channels
• Channel switching time <200µs.
• Support frequency hopping
Data slicer / clock recovery of data
Address and CRC computation
Power supply range: 1.9 to 3.6 V
• Low supply current (TX), typical 10.5mA peak
@ -5dBm output power
• Low supply current (RX), typical 18mA peak in
receive mode
• 100 % RF tested
• No need for external SAW filter
• World wide use

APPLICATIONS
• Wireless mouse, keyboard, joystick
• Keyless entry
• Wireless data communication
• Alarm and security systems
• Home automation
• Surveillance
• Automotive
• Telemetry
• Intelligent sports equipment
• Industrial sensors
• Toys
