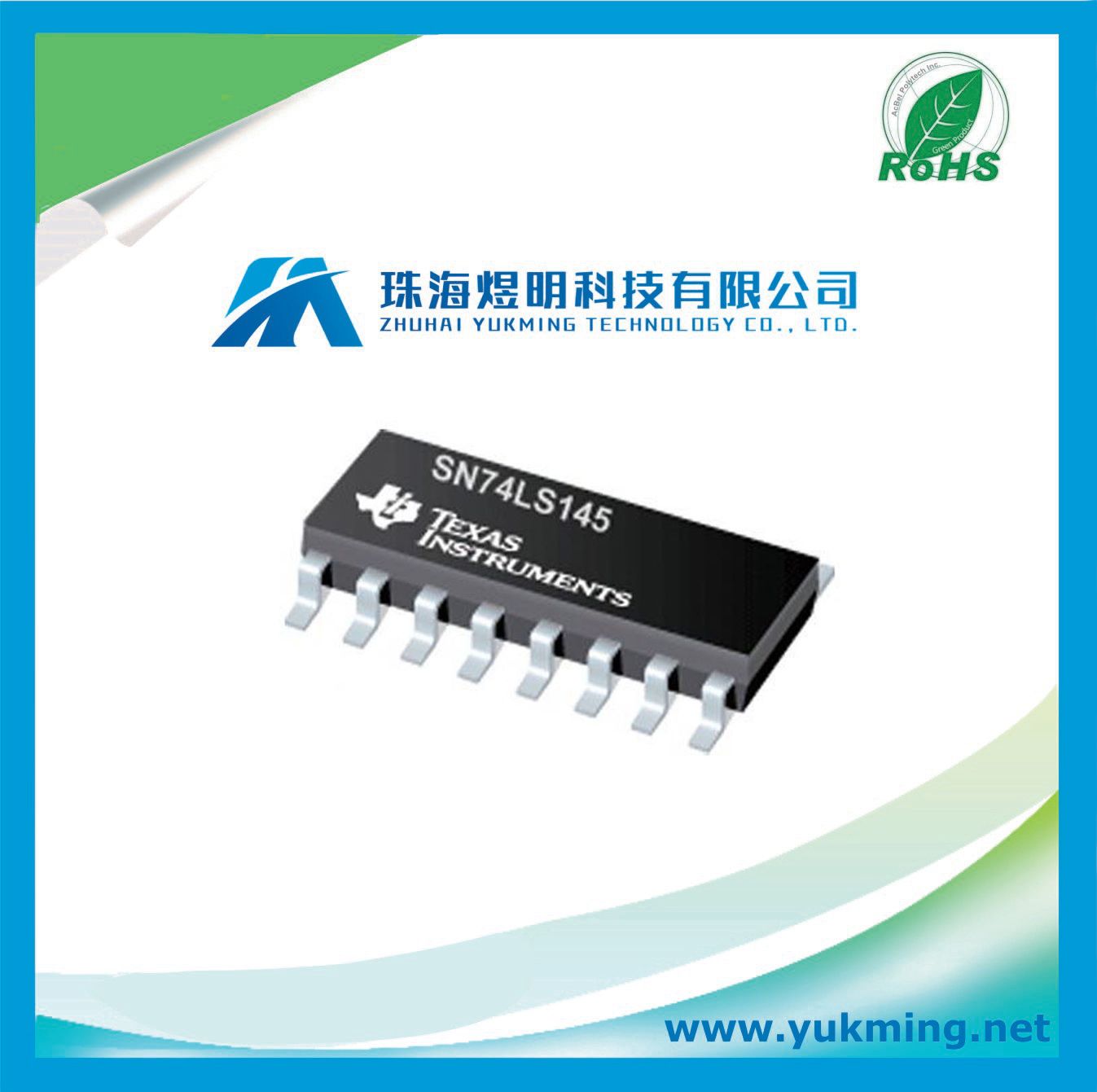

Integrated Circuit Sn74ls145n New and Original

Name: Integrated Circuit Sn74ls145n New and Original
Brand: all-electronics-online.com
SKU: 796717975
Availability: InStock
Rating: 4.8 (134 reviews)

Price:	US $ 0.5-3.0/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SN74LS145N
Logic Family:	Ls
Logic Function:	Decoder/Driver
Fabrication Technology:	Bipolar
Demultiplexing Capability:	1-of-10
Number Of Elements Per Chip:	1
Number Of Element Inputs:	4
Number Of Element Outputs:	10
Output Type:	Open Collector
Absolute Propagation Delay Time (Ns):	50
Operation Temperature Range:	0 to 70 Degree C

Product Description

Hello, Thank you for your visiting!

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can achieve WIN-WIN cooperation.

Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require

MANUFACTURER
Texas Instruments

PRODUCT CATEGORY
Decoder and Demux

DESCRIPTION
Decoder/Driver Single 4-to-10 16-Pin PDIP Tube

Choose between multiple outputs given a certain selection inputs with this SN74LS145N from Texas Instruments. With an open collector output, this is power management at its best. This decoder has a minimum operating temperature of 0 °C and a maximum of 70 °C. This device comes in tube packaging. This inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.75 V, while its maximum is 5.25 V.

Specifications
EU RoHS Compliant
Logic Family LS
Logic Function Decoder/Driver
Fabrication Technology Bipolar
Demultiplexing Capability 1-of-10
Number of Elements per Chip 1
Number of Element Inputs 4
Number of Element Outputs 10
Output Type Open Collector
Polarity Inverting
Minimum Operating Temperature (°C) 0
Maximum Operating Temperature (°C) 70
Packaging Tube
Absolute Propagation Delay Time (ns) 50
Maximum High Level Output Current (mA) -0.25
Maximum Low Level Output Current (mA) 80
Minimum Operating Supply Voltage (V) 4.75
Typical Operating Supply Voltage (V) 5
Maximum Operating Supply Voltage (V) 5.25
Maximum Quiescent Current (mA) 7(Typ)
Mounting Through Hole
Package Height (mm) 5.08(Max) - 0.51(Min)
Package Length (mm) 19.69(Max)
Package Width (mm) 6.6(Max)
PCB changed 16
Standard Package Name DIP
Supplier Package PDIP
Pin Count 16
Lead Shape Through Hole

Features
• Full Decoding of Input Logic
• SN54145, SN74145, and SN74LS145 Have
80-mS Sink-current Capability
• All Outputs Are Off for Invalid
BCD Input Conditions
• Low Power Dissipation of 'LS145 . . .
35 mW Typical
