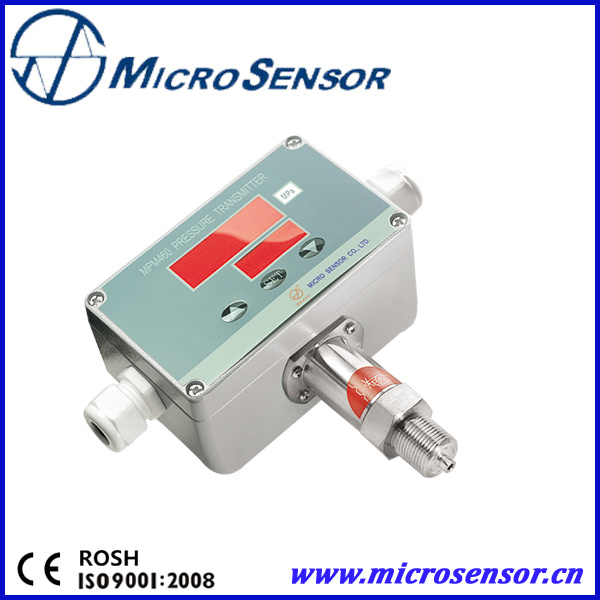

Intelligent 4~20madc Pressure Transmitter Mpm460

Prod Model:	MPM460
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measuring Range:	-0.1...0~0.01......100MPa
Transmitter +Controller:	Display
Display:	Digital
Keywords:	Intelligent 4~20madc Transmitter
Function:	Local Indication Type
Accuracy:	0.25%Fs (Typ.)
Indicating Pressure Reference:	General Pressure Gauge
Application:	Industrial, Industrial~
Structure:	100MPa
Connection Type:	Cable Exit
Accuracy Grade:	0.25%Fs (Typ.)
Pressure Range:	-0.1...0~0.01...100MPa

Product Description

                                            Intelligent 4~20madc Pressure Transmitter Mpm460

Features:
    1.        Intelligent
    2.        4~20Madc output
    3.        RS485
    4.        IP65
    5.        LED display, on site display
    6.        Maximal Five pressure control reply optional

Specifications:

MPM460

Pressure range:  -0.10~0.01100MPa Overpressure:  Min. (1.5 times FS, 110MPa)


    1.        Output signal:   analog 4~20mADC, 0~10/20mADC or 0/1~5VDC;  digital RS485
    2.        Accuracy:   +0.25%FS(typ.);    +0.5%FS(max.)  including analog output's lin.,rep. and hys.
    3.        Zero temp.drift:  +0.03%FS/ºC(≤100kPa)       +0.02%FS/ºC(>100kPa)
    4.        FS temp.drift:    +0.03%FS/ºC(≤100kPa)       +0.02%FS/ºC(>100kPa)
    5.        Long-term stability: ≤+0.5%FS/year
    6.        Relay quantity: 1~5
    7.        Load:         240V/5A(AC)or 30V/5A(DC)
    8.        Relay life:    >100000 times
    9.        Indicator:   4 digit 0.56 inch LED digit indicator;   display range: -1999~9999
                                   4 digit 0.36 inch LED situation display indicator
    10.    Power supply: 220VAC±15% or 220VDC or 24VDC
    11.    Max. consumption:  ≤3.5W
    12.    Environment temp.:  -10ºC~60ºC             Frequency: 0~300Hz
    13.    Media temp.:        -10ºC~80ºC             Acceleration:  ≤3×9.81ms-2
    14.    Storage temp.:      -40ºC~125ºC             Impact:  ≤10×9.81ms-2
    15.    Pressure port: stainless steel 1Cr18Ni9Ti        Diaphragm: stainless steel 316L
    16.    Electronic housing: aluminum-alloy             Sealing: Viton or full-welded
    17.    Pressure port: Optional

Order Information:


MPM460

Multi-functional Intelligent Pressure Transmitting Controller

MPM460W

Multi-functional Intelligent Level Transmitting Controller

MDM460

Multi-functional Intelligent Differential Pressure Transmitting Controller

Range

Pressure range: mH2O, kPa or MPa

[0~XmH2O]Lm

Level

0~1200mH2O, X=actual measuring level, L=cable length(unit: m)

[0~X]kPa or MPa

Pressure

-0.10~0.01100MPa, X=actual measuring pressure

Differential pressure

Pressure (kPa)

Overpressure kPa

Pressure (kPa)

Overpressure kPa

+

-

+

-

0~35

70

35

0~700

1400

700

0~70

150

70

0~1000

2000

1000

0~100

200

100

0~2000

4000

1000

0~200

400

200

0~3500

7000

1000

0~350

700

350

Code

Output signal

E

4~20mADC

F

1~5VDC

J

0~5VDC

Q

0~10mADC

U

0~20mADC

R4

RS485 interface

Code

Construction material

Diaphragm

Pressure port

Housing

22

SS 316L

SS

Aluminum-alloy

24

SS 316L

SS 316L

Aluminum-alloy

25

Tantalum

SS

Aluminum-alloy

35

Tantalum

Hastelloy C

Aluminum-alloy

Code

Others

C1

M20×1.5 male, face type seal

Only MPM460

C3

G1/2 male

C4

G1/4 female

Only MDM460

C5

M20×1.5 male, waterline seal

Only MPM460

G

Gauge

A

Absolute

S

Sealed gauge

PC1

Flush diaphragm, M20×1.5 male

PC3

Flush diaphragm, G1/2 male,

Jn

Relay quantity, n=1~5

V1

Power supply 24VDC

V2

Power supply 220VAC

F1

Fixed flange

Only MPM460W

MPM460    [0~200]kPa      F         22  C3AJ1V1                                    the whole spec
