Intelligent Hart Output Pressure Transducer Mpm486

Name: Intelligent Hart Output Pressure Transducer Mpm486
Brand: all-electronics-online.com
SKU: 741725045
Availability: InStock
Rating: 4.4 (98 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM486
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wiring:	2-Wire
Output Option:	Hart, 4~20madc
Accuracy:	0.15%Fs (Typ.)
Category:	Intelligent
Diaphragm:	Ss316L
Storage Temperature:	-40~85c
Compensation Temperature:	-10~80c
Power Supply:	12~36 VDC
Long Term Stability:	Less Than 0.25%Fs/Year
Display:	LCD Display

Product Description

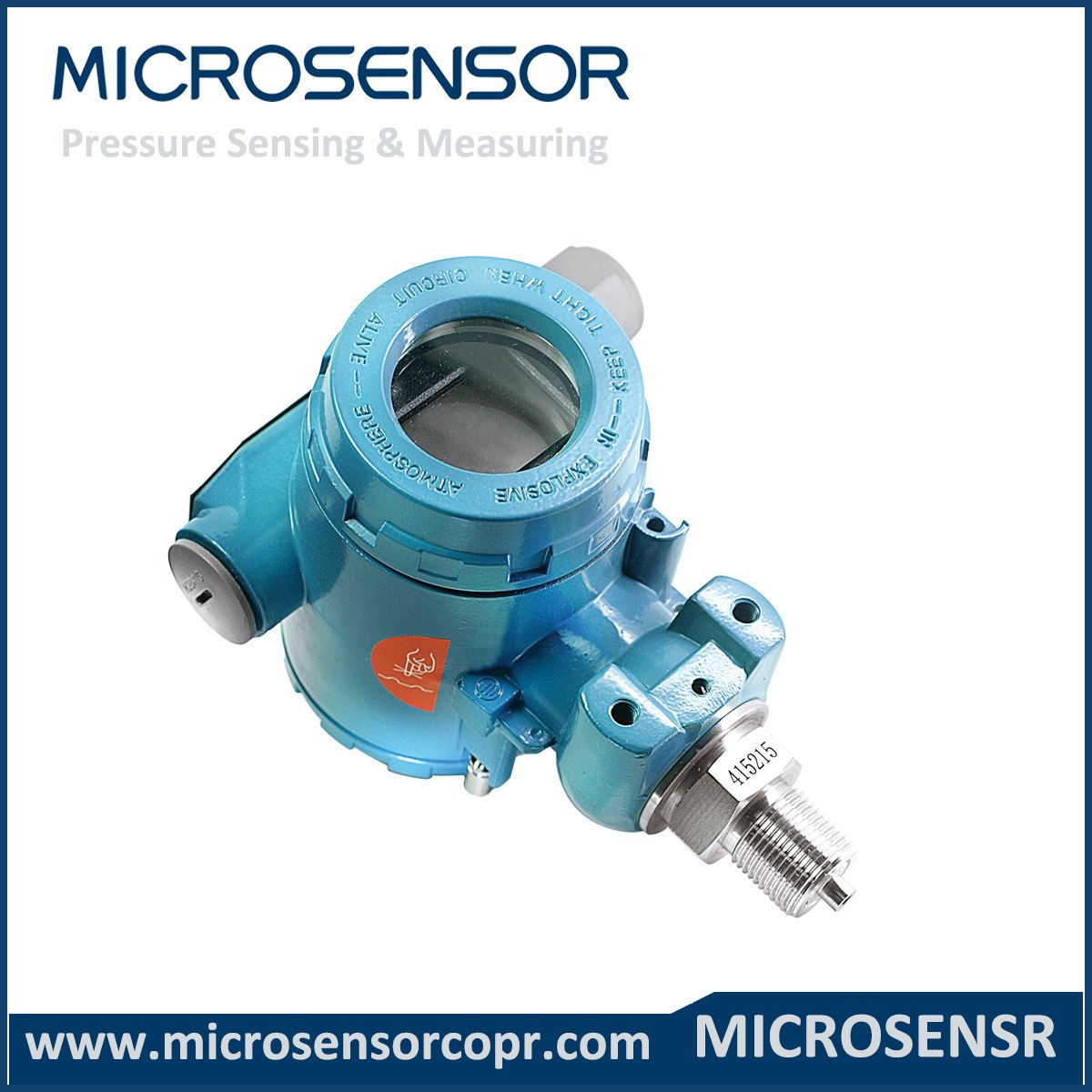

Intelligent HART Output Pressure Transducer Mpm486

Features:
1. SS316L diaphragm optional
2. Intelligent pressure transducer
3. Digital compensation
4. Adjustable local and distant
5. IP65
6. Cost-effective
7. High accuracy
8. Good stability
9. Reliable

Specifications:
1. Accuracy: ±0.1(typ.) ±0.25(max.)
2. Digital output :4~20mADC output+ HARTâ
3. Zero Thermal error : ≤±0.25(in the whole operation temp.range)
4. FS Thermal error: ≤±0.25(in the whole operation temp.range)
5. Compensation temperature: -10- 80C
6. Operation temperature:-20~80
7. Storage temperature.: -40~85

Code	02	03	07	08	09	10	12	13	14	15	17	18	19	20
Unit	kPa					MPa
Pressure	0-20 ~ 0-70	0-30 ~0-100	0-60 ~0-200	0-100 ~0-350	0-200 ~0-700	0-0.3 ~0-1.0	0-0.6 ~0-2.0	0-1.0 ~0-3.5	0-2.0 ~0-7.0	0-3.0 ~0-10.	0-4.0 ~ 0-20	0-8.0 ~ 0-35	0-16 ~ 0-70	0-20 ~0-100
Upper limit	70	100	200	350	700	1.0	2.0	3.5	7.0	10	20	35	70	100
Overpressure	100	150	300	500	1000	1.5	3.0	5.0	10	15	30	52	100	110

Order Information:

MPM486

HARTâ Intelligent Pressure Transmitter

Code

Pressure range (kPa or MPa)

[0~X] kPa
or MPa

0~2070kPa

0~1.03.5MPa

0~30100kPa

0~2.07.0MPa

0~60200kPa

0~3.010.0MPa

0~100350kPa

0~4.020.0MPa

0~200700kPa

0~8.035.0MPa

0~0.31.0MPa

0~16.070.0MPa

0~0.62.0MPa

0~20.0100.0MPa

Code

Output signal

4mA~20mA DC + HARTâ communication protocol (2-wire)

Code

Construction material

Diaphragm

Pressure port

Housing

SS 316L

Aluminum-alloy

SS 316L

Aluminum-alloy

Tantalum

Aluminum-alloy

Tantalum

Hastelloy C

Aluminum-alloy

Code

Others

M20×1.5 male, face type seal

G1/2 male

M20×1.5 male, waterline seal

PC1

Flush diaphragm, M20×1.5 male

PC3

Flush diaphragm, G1/2 male

Gauge

Sealed gauge

Absolute

MPM486 [0~200]kPa E 22 C1G the whole spec
