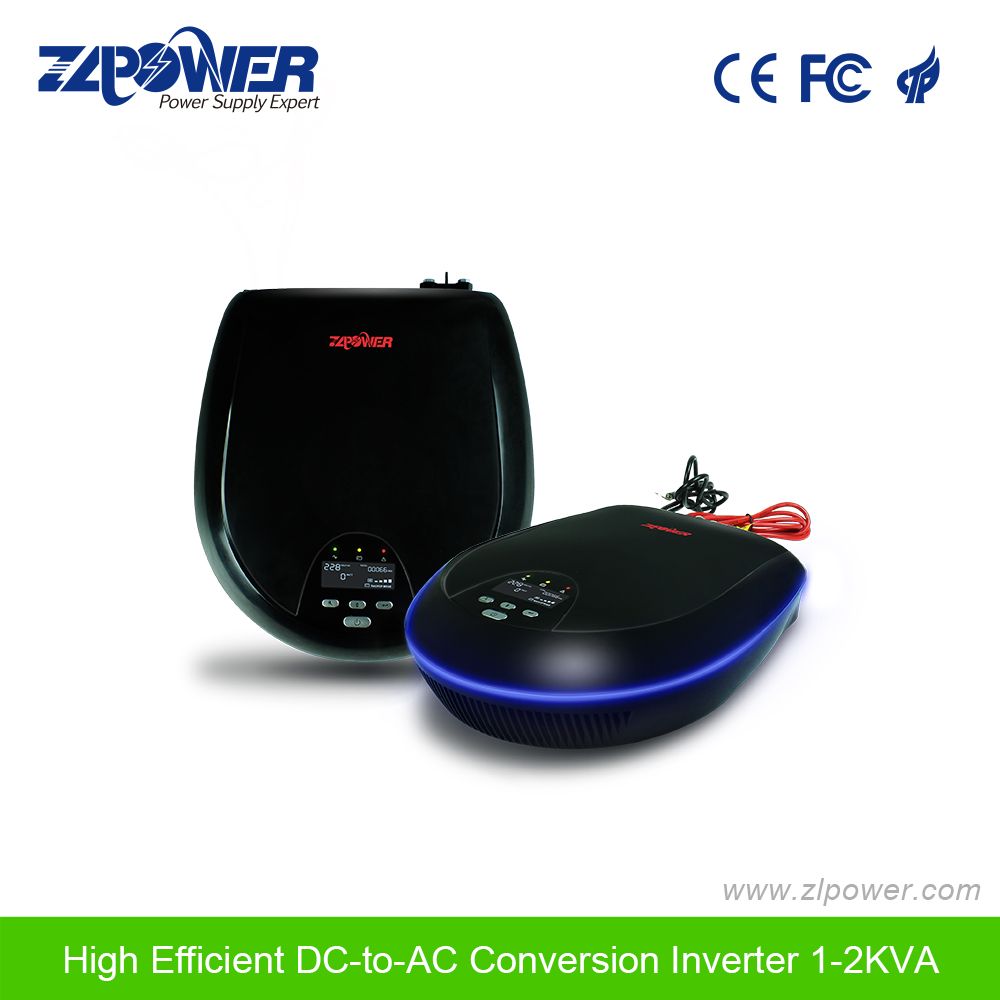

Intelligent Home Solar Inverter with PWM Scc
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
HDX Plus |
| Capacity: |
1000va~2000va |
| Input Phase: |
Single Phase |
| Input Voltahe: |
220V/230V/240V |
| Frequency: |
50Hz/60Hz |
| Wave Form: |
Modified Sine Wave |
| Power Factor: |
0.7 |
| AC To AC Efficiency: |
98% |
| DC To AC Efficiency: |
80% |
| Operation Temperature: |
0~40centi-Degree |
| Noise: |
50dB |
Product Description

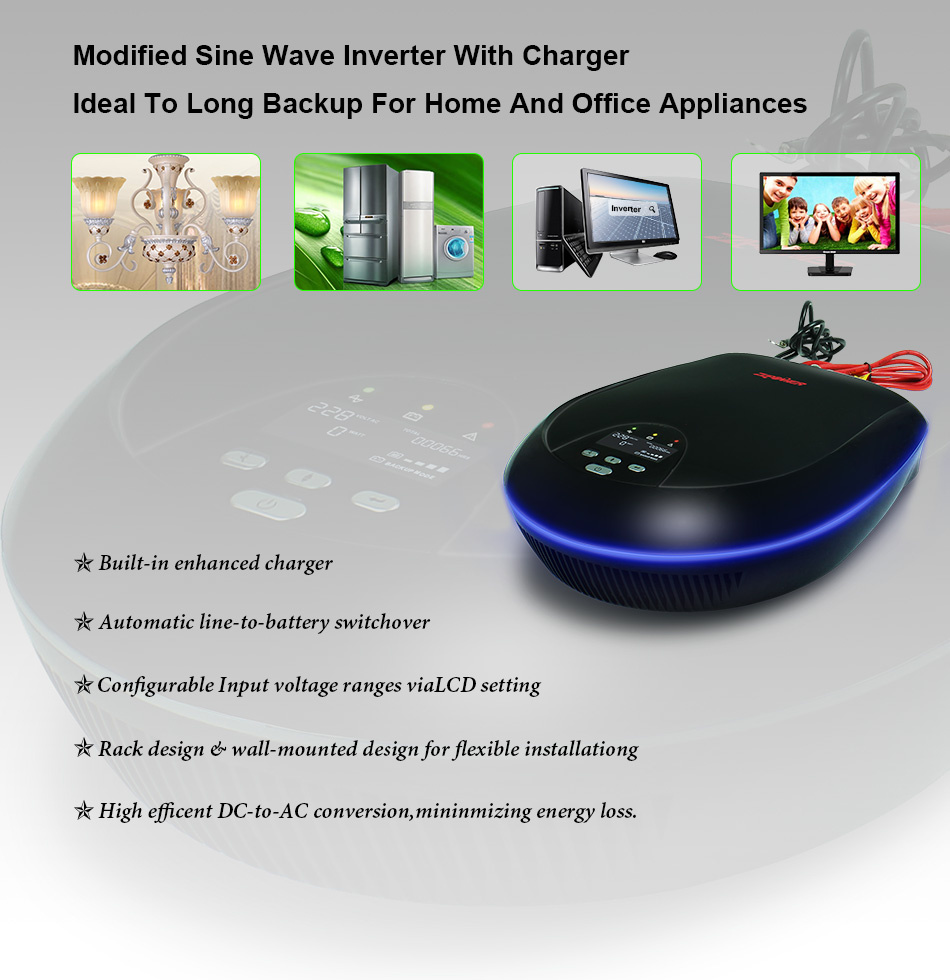

HDX Plus Inverter Series
Key Features:
♦Automatic line-to-battery switchover.
♦Configurable Input voltage ranges via LCD setting.
♦High efficient DC-to-AC conversion, minimizing energy loss.
♦Rack design & wall-mounted design for flexible installation.
♦Built-in enhanced charger.
♦Built-in solar charger controller up to 40A.
♦Intelligent 3-stage charger control for efficient charging and preventing overcharge.
♦Auto restart while AC recovery.
♦Multiple protection: low battery alarm, low battery shutdown, over charger protection, overload protection, over temperature protection, short circuit protection.
♦with the environmental temperature control charge management.
Specifications:
Model
Parameters | HDX Plus1K-12 | HDX Plus1.2K-12 | HDX Plus2K-24 |
| Capacity | VA/W | 1000VA/700W | 1200VA/900W | 2000VA/1500W |
| Battery & Charger | VDC | 12VDC | 24VDC |
AC Input | Nominal input Voltage | 220/230/240VAC |
| Selectable Voltage Range | 170-280VAC (Narrow Range);90-280VAC (Wide Range) |
| AC Ouput | Output Voltage Waveform | Modified sine wave |
| Voltage | 230VAC |
| Voltage Regulation (Batt.Mode) | 10% / -18% |
| Frequency | 50/60Hz(Adjustable); |
| Frequency Regulation (Bat. Mode) | ±1HZ |
| Display Indicator | AC Mode | Display output power, output voltage |
| Battery Mode | | The mark "Battery" will flicker every 1second. |
|
| Battery Charging Mode | Display the Battery capacity |
| Fault | Display fault |
| Efficiency | AC to AC | >95% |
| DC to AC | >80% |
| Battery & Charger | Charger Current | 20Amp | 15Amp |
| Overcharge Protection | 16V | 32V |
| Transfer Time | Typical | 15ms Typical, 40ms Max. |
| Solar Battery Charger | Max. Input Power | 450W | 900W |
| Charging Current | 40Amp |
| Nominal Batery Voltage | 12V | 24V |
| Optimal Work Voltage Range | 15V~18V | 30V~36V |
| Max.PV Input Voltage | 55V |
| Protection | Full Protection | Discharge, overcharge, overload, over temperature protection. |
General
Specifications | Operating Temperature
Range | 0- 50°C, 5%-90 % relative humidity (non-condensing) |
| Storage Environment | -15°C to 55°C, 5% to 95% humidity (non-condensing) |
| Noise Level | Less than 50dB |
| Dimension(L*W*H) | 373*121*305mm |
| Net Weight(kg) | 2.18kg | 2.49kg | 2.37kg |
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
