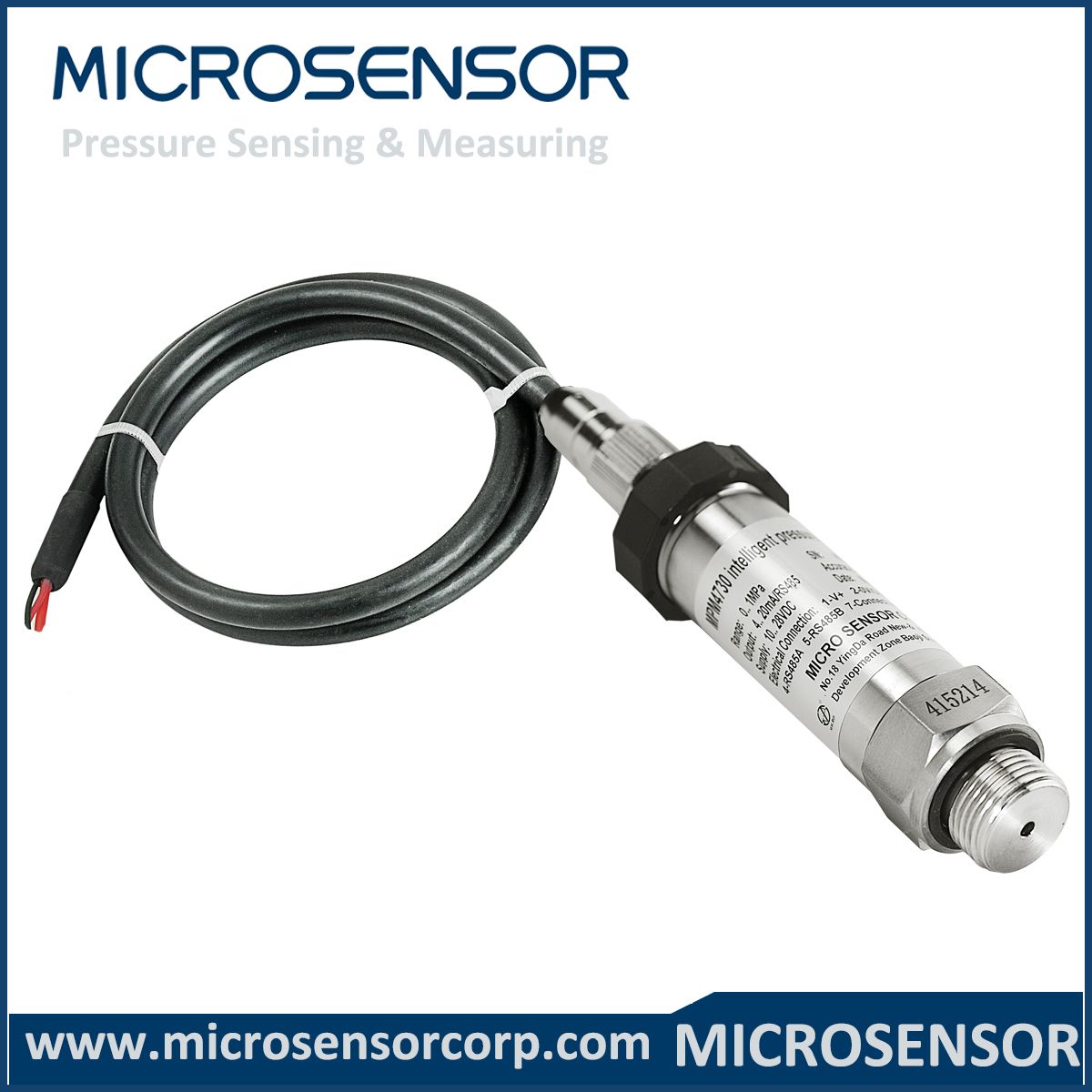

Intelligent Hydraulic Pressure Transmitter (MPM4730)

Name: Intelligent Hydraulic Pressure Transmitter (MPM4730)
Brand: all-electronics-online.com
SKU: 741185495
Availability: InStock
Rating: 4.5 (71 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM4730
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measurement Range:	-0.1MPa...0~0.01MPa...100MPa
Key Word:	Intelligent Hydraulic Pressure Transmitter
Wiring:	2-Wire
Certificate:	CE, RoHS
Construction:	Stainless Steel
Compensated Temp:	-10~80c
Output Signal:	4~20madc
Storage Temp:	-40~80c
Protection:	IP65
Accuracy:	0.15%Fs(Typ.)
Accuracy Grade:	0.15%Fs (Typ.)

Product Description

Intelligent Hydraulic Pressure Transmitter MPM4730

Features:
1.2-Wire;
2.RS485/HART communicator;
3.Special requirement available;
4.Netting available;
5.Digital compensation

Certificates:
1.RoHS;
2.Exia IIBT6 Ga;
3.Ship-use;
4.ISO

Application:
1.Precise measurement;
2.Flow pressure;
3.Chemical industry;
4.Water

Description:
MPM4730 Pressure Transmitter is a high accuracy and reliable intelligent pressure measure product, which can be widely used in many fields to measure flow pressure with its compact size, light weight, wider pressure range and other merits.

Specifications:

Total accuracy	±0.075%FS(min.) ±0.15%FS(typ.) ±0.25%FS(max.)
Stability	±0.2%FS/year
Compensated temp.	(-10~80)ºC
Operation/storage temp.	(-40~80)ºC
Power supply	(10~28)VDC(RS485)/(12~30)VDC(HART)
Output	(4~20)mADC
Output	RS485/HART(optional)
Load	(4~20)mADC output,(U-10V/12V)/0.02A(Ω)
Load	RS485 bus line could connect with 99 transmitters
Electric connection	DIN43650 4-pin plug(RS485 socket inside)
	7-pin plug(for RS485 interface output at local place)
	Φ7.2mm shielding cable
Insulation	100MΩ/50V
Shock	20g,(20~5000)Hz
Impact	20g,11ms
Protection	IP65(B1,B2) IP63(B3)
Media compatibility	Diaphragm: SS 316L
	Housing: SS 1Cr18Ni9Ti
	O-ring: Viton
Weight	~160g

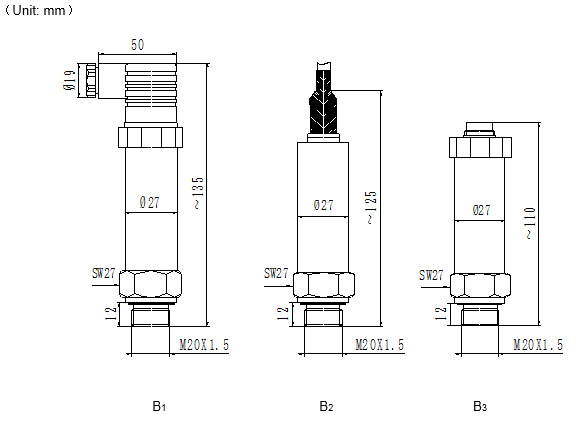

Outline Construction:

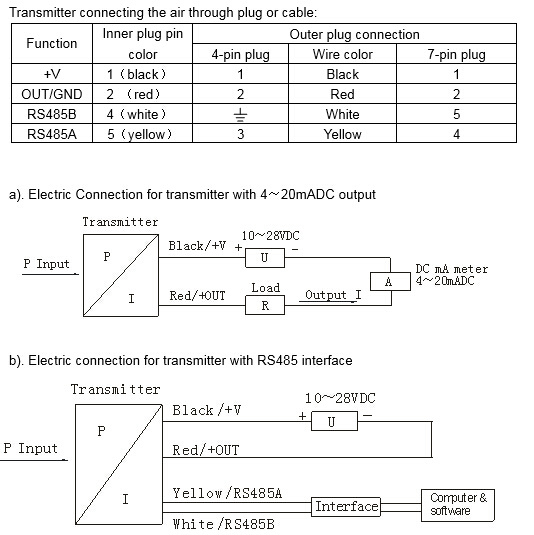

Electric Connection:

Order guide:

MPM4730

Intelligent Pressure Transmitter

Range

Pressure range: -0.10~0.01100MPa

[0~X]kPa
MPa

,X=actual pressure range

Code

Output signal

4~20mADC

RS485 communication interface

HARTâ communication protocol

Code

Construction material

Diaphragm

Pressure port

Housing

SS 316L

Code

Others

4-pin Hirschmann plug connection

Cable connection, default cable length: 1.5m

7-pin plug connection

PC1

Flush diaphragm, M20×1.5 male

PC3

Flush diaphragm, G1/2 male

M20×1.5 male, face type seal

G1/2 male

G1/4 female

M20×1.5 male, waterline seal

Gauge

Sealed gauge

Absolute

Intrinsic safe version ExiaIIBT6 Ga

MPM4730 [0~100]kPa ER4 22 B3C1G the whole spe
