Intelligent IP65 Level Transmitting Controller for Ocean Mpm460W

Name: Intelligent IP65 Level Transmitting Controller for Ocean Mpm460W
Brand: all-electronics-online.com
SKU: 706234202
Availability: InStock
Rating: 4.8 (121 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	mpm460w
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Level Transmitting Controller:	0~1...200mh2o
Output:	RS485, 4~20m ADC
Accuracy:	+0.25%Fs(Typ.)
Display:	LED
Power Supply:	220VAC
Environment Temperature:	-10~60 C
Media Temperature:	-10~80 C
Storage Temperature:	-40~125 C
Diaphragm:	Ss316L
Sealing:	Viton or Full Welded

Product Description

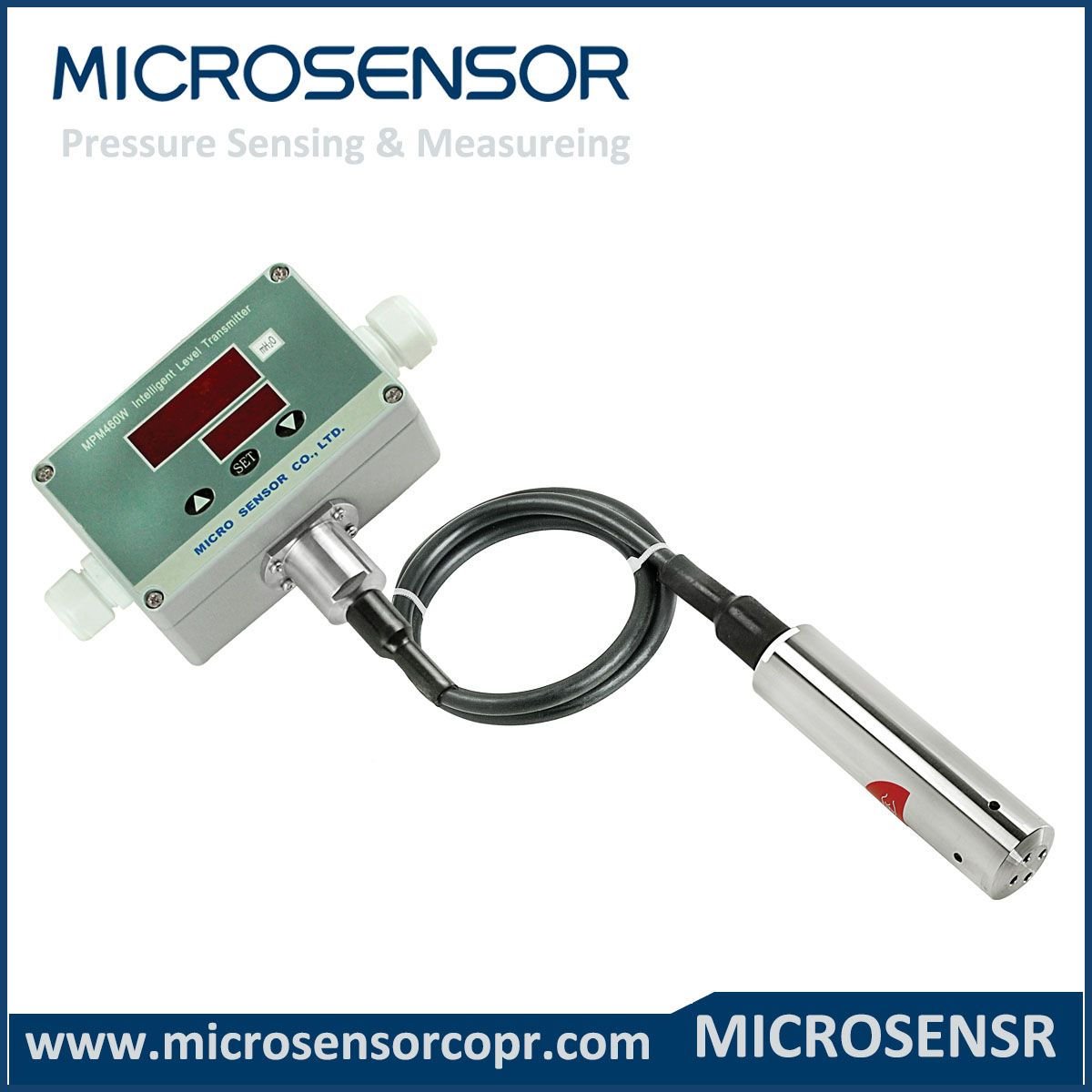

                              Intelligent IP65 MPM460W Level Transmitting Controller for ocean

Features:

1.        Intelligent
2.        Easy to MODEM coneection
3.        High accurate
4.        High performance
5.        High reliable
6.        IP65
7.        Local calibration, easy operation
8.        LED display, on site display
9.        Maximal Five pressure control reply optional

Specifications:

1.      Pressure range: -0.01...0~0.01...100Mpa
2.      Power supply:220VAC±15% or 220VDC or 24VDC
3.      Output signal: 4~20mADC,0~10,20mADC or 0/1~5VDC; RS485
4.      Accuracy: +0.25%FS(typ.);    +0.5%FS(max.)
5.      Stability: ≤+0.5%FS/year

Order Guide

MPM460

Multi-functional Intelligent Pressure Transmitting Controller

MPM460W

Multi-functional Intelligent Level Transmitting Controller

MDM460

Multi-functional Intelligent Differential Pressure Transmitting Controller

Range

Pressure range: mH2O, kPa or MPa

[0~XmH2O]Lm

Level

0~1200mH2O, X=actual measuring level, L=cable length(unit: m)

[0~X]kPa or MPa

Pressure

-0.10~0.01100MPa, X=actual measuring pressure

Differential pressure

Pressure
(kPa)

Overpressure kPa

Pressure
(kPa)

Overpressure kPa

0~35

0~700

1400

700

0~70

150

0~1000

2000

1000

0~100

200

100

0~2000

4000

1000

0~200

400

200

0~3500

7000

1000

0~350

700

350

Code

Output signal

4~20mADC

1~5VDC

0~5VDC

0~10mADC

0~20mADC

RS485 interface

Code

Construction material

Diaphragm

Pressure port

Housing

SS 316L

Aluminum-alloy

SS 316L

Aluminum-alloy

Tantalum

Aluminum-alloy

Tantalum

Hastelloy C

Aluminum-alloy

Code

Others

M20×1.5 male, face type seal

Only MPM460

G1/2 male

G1/4 female

Only MDM460

M20×1.5 male, waterline seal

Only MPM460

Gauge

Absolute

Sealed gauge

PC1

Flush diaphragm, M20×1.5 male

PC3

Flush diaphragm, G1/2 male,

Relay quantity, n=1~5

Power supply 24VDC

Power supply 220VAC

Fixed flange

Only MPM460W

MPM460 [0~200]kPa F 22 C3AJ1V1 the whole spec
