| Prod Model: |
MPM4700 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Key Word: |
Intelligent Level Transmitter |
| Measurement Range: |
0~Xmh2o |
| Long Term Stability: |
0.2%Fs/Years |
| Output Signal: |
4~20madc |
| Compensated Temp: |
-10~70c |
| Storage Temp: |
-40~100c |
| Operation Temp: |
-10~80c |
| Protection: |
IP68 |
| Housing: |
Stainless Steel |
| Certificate: |
RoHS |
Product Description

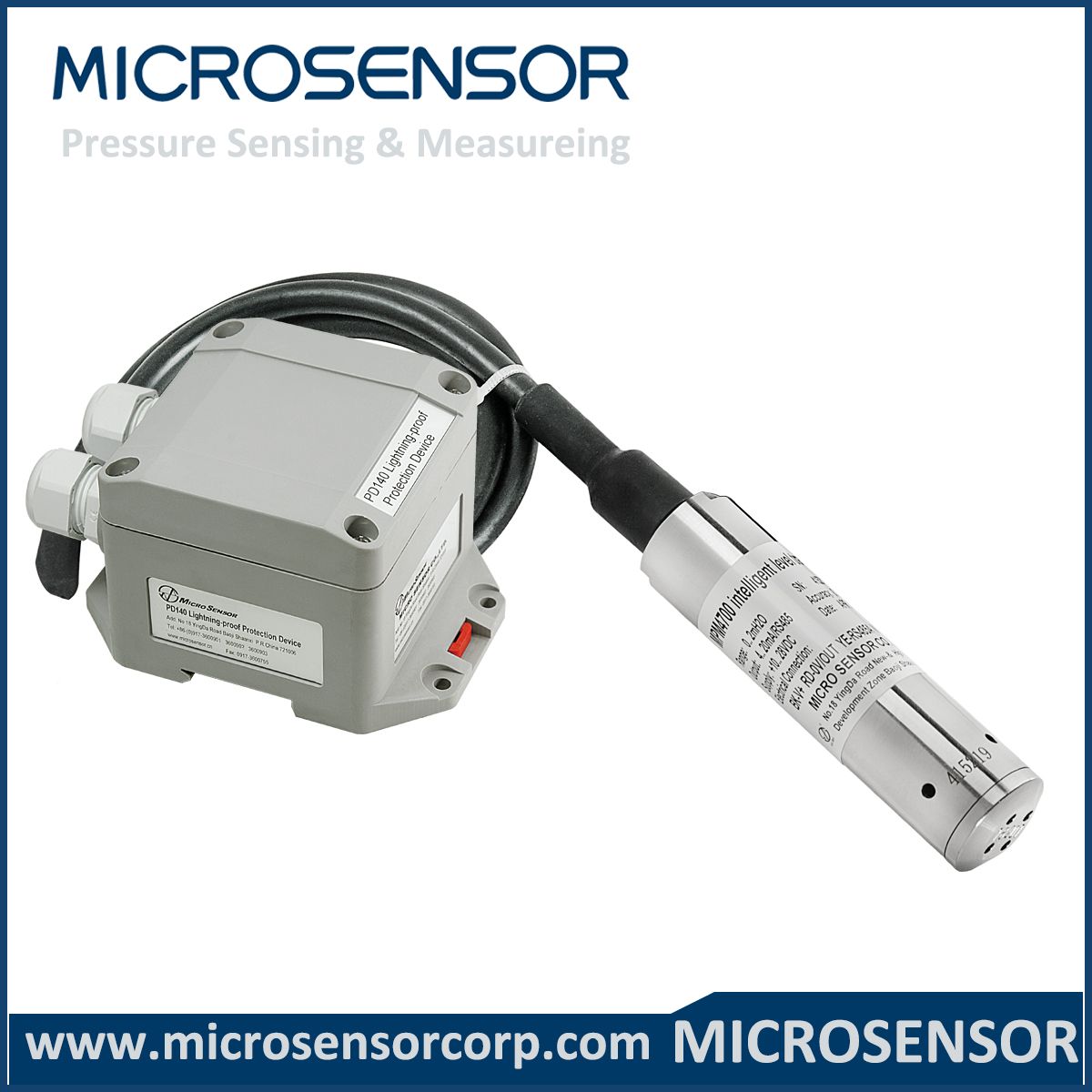

Intelligent Level Transmitter MPM4700
Features:
1. Intelligent;
2. Compensation temperature.
3. All stainless steel;
4. Special requirement available;
5. Netting available;
6. Compact size;
7. Light weight
Certificates:
1.RoHS;
2.Exia IIBT6 Ga;
3.Ship-use;
4.ISO
Application:
1.Precise measurement;
2.Liquid;
3.WaterOptions:
1.RS485&HART communicator;
2.Intrinsic safe version;
3.Fixed flange;
4.Water-proof connection box;
5.Lightening-proof protection box
Description:
MPM4700 Intelligent Level Transmitter is an excellent level measured product with precise digital temperature compensation and linearity correction technique. It has compact size, light weight and other advantages. It is widely used for industry field with 2-wiring.
Specifications:| Basic range(mH2O) | 3.5 | 7 | 10 | 20 | 35 | 70 | 100 | 200 |
| Overpressure(mH2O) | 5 | 10 | 15 | 30 | 50 | 100 | 150 | 300 |
Note: The min.shrinked available range is 1/5 of basic range;
For the other pressure range between min.range and max.range, but not indicated on the above table, we enlarge the above basic pressure range to produce (overpressure unavailable); |
| Total accuracy | ±0.075%FS(min.) ±0.1%FS(typ.) ±0.25%FS(max.) |
| Stability | ±0.2%FS/year |
| Compensation temp. | (-10~70)ºC |
| Operation temp. | (-10~80)ºC |
| Storage temp. | (-40~100)ºC |
| Power supply | (10~28)VDC(RS485), (12~30)VDC(HARTâ) |
| (10~12)VDC(Intrinsic safe version) |
| Output | (4~20)mADC |
·RS485 communication interface(Custom or MODBUS protocol)
or HARTâcommunication protocol |
| Load | (4~20)mADC output,(U-12V)/0.02A(Ω) |
| RS485 bus line could connect with 99 transmitter |
| Insulation | 100MΩ/50V |
| Shock | 20g,(20~5000)Hz |
| Impact | 20g,11ms |
| Protection | IP68(Transmitter part);IP65(Junction box part) |
| Media compatibility | Diaphragm: stainless steel 316L |
| Housing: stainless steel 1Cr18Ni9Ti |
| O-ring: Viton |
| Weight | ~160g |
Total accuracy: including non-linearity, hysteresis, repeatability and thermal error;
For special temperature requirement, please contact with our company;
For pressure range 3.5mH2O ad 7mH2O, after shrinking, the total accuracy is60.5%FS.
Order guide:| MPM4700 | HARTâ Intelligent Level Transmitter |
| | | Range | Pressure range :0~3.5200mH2O |
| [0~XmH2O]L | X=actual pressure range, L=cable length , suggested L-X=(1~2)m |
| | | Code | Output signal |
| E | 4~20mADC |
| R4 | RS485 communication interface, Custom protocol
|
| R8 | RS485 communication interface, MODBUS communication protocol |
| H | HARTâ communication protocol |
| | | Code | Construction material |
| Diaphragm | Interface | Housing |
| 22 | SS 316L | SS | SS |
| 24 | SS 316L | SS 316L | SS 316L |
| | | Code | Others |
| C1 | M20×1.5 male, face type seal |
| C5 | M20×1.5 male, waterline seal |
| Yb | Aluminum connection box without display |
| Yc | MS200 water-proof connection box(default) |
| Yd | PD140 lightening-proof protection device |
| F1 | Fixed flange |
| i | Intrinsic safe version ExiaIIBT6 Ga |
| T | Ship-use |
| | |
| MPM4700 [0~10mH2O]12 ER4 22 Yc the whole spec |
| | | | | | | | | | | | | | |
