| Prod Model: |
B605series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Jinput Power Range: |
1pH 220V/3pH 220V/3pH 380V |
| Output Power Range: |
3pH 220V/380V |
| Power(Kw): |
0.75-350 |
| Feature: |
Low Noise /High Protection |
| Phase: |
Three |
| Type: |
DC/AC Inverters |
| Power Source: |
Electric Power |
| Output Power: |
>1000W |
| Brand: |
Bedford |

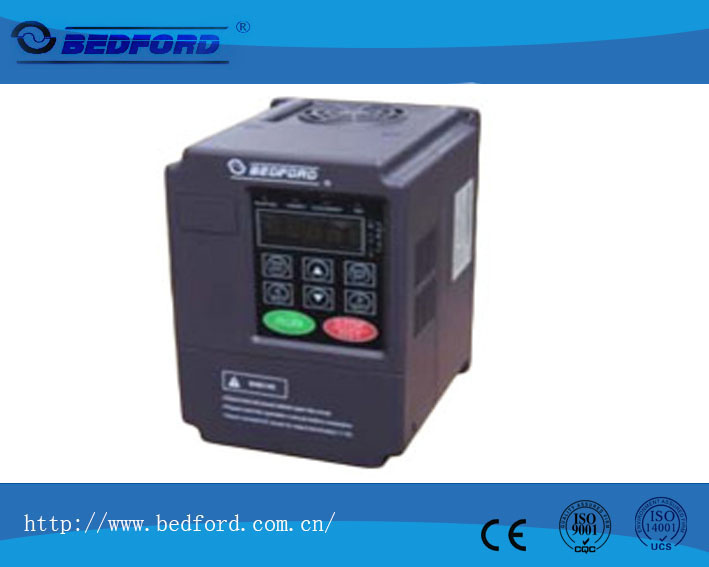

Product Description
Thanks for choosing our product, we will supply you with considerate service as well as ever.
In the traditional air conditioning system, pump and exhauster working at full-speed all the year round. It regulate flux or flowing rate by throttling and backflow, lot of power waste on it.It gains obvious energy-saving effect when insert the inverter control system into the central air-conditioning system(such as control the cooling pumps,frozen pumps or the cooling fans),regulate the flux and pressure by inverter technology, in place of the way of control flux by valve opening.
The cooling pump's inverter control has a various patterns, like pressure control, differentialpressure control, temperature control,differential temperature control,etc.. Thereinto, temperatureand differential temperature control is not only sensitive for surrounding temperature, but also weakon timeliness, it is not as good as pressure(differential pressure) control on stability and reliability.
Differential pressure control is an variable flow control, it will confirms the system adapt to the variable air-conditioning load. It is reaction rapidly, little temperature and humidity influence,balance the system's supply and demands, do well in energy-saving, and so on.With high quality, multi-function, low noise and strong commonality etc. characteristics, B605series intelligent constant pressure water supply controller is suitable to full-automatic operation;Professional design based on users' needs, suitable for differential pressure control, simplicity of operation;
According to the water condition to supply constant pressure water without manual operation after parameters were set correctly.
Alarm automatically when fault occurred;
Alternate running automatically in the multiple pump system, prolong the using life of pumps;
Adapt to many kinds of input pressure signals;
Can be connected to upper computer through RS485 communication function for centralizedmonitoring.1. INSPECTION
1.1 Technology Features
Input & Output
Input Voltage Range: 380 / 220 15% V
Input Frequency Range: 47 63 Hz
Output Voltage Range: 0 rated input voltage
Output Frequency Range: 0 50 Hz
I/O Features
Programmable Analog Input:AI1:0~10V or 0~20mA input, AI2: 0~10V or 0~20mA
input
Relay Output:2 Output
Communication Port:RS485 Communication terminals
Function Characteristics
Multi-Pump Control:Can realize 1 master and 5 auxiliary combine work at most
Constant Differential Pressure Control: PID Control based on the feedback
source of (AI1-AI2);
Power On Restart:Running automatically when power on
Alternate Running:balance every pump's running time, prolong service life of the
machine
Various of water supply Fault Alarm Function: High Pressure, Low Pressure, Low
Level, Transducer Error etc.
As many as 22 kinds of fault protection function: Over Current, Over Voltage, Low
Voltage, Phase Failure, Over Load etc.
Selection Guide| Model No. | rated input voltage (v) | reted input current(A) | reted output curret (A) | motor power (KW) |
| B605-20001 | 1AC:220V
15%~+15%
| 8.2 | 4.5 | 0.75 |
| B605-20002 | 14.2 | 7.0 | 1.5 |
| B605-20003 | 23.0 | 10 | 2.2 |
| B605-2001 | 3AC:220V
15%~+15% | 5.0 | 4.5 | 0.75 |
| B605-2002 | 7.7 | 7.0 | 1.5 |
| B605-2003 | 11.0 | 10.0 | 2.2 |
| B605-4001 | 3AC:380V
15%~+15% | 3.4 | 2.5 | 075 |
| B605-4002 | 5.0 | 3.7 | 1.5 |
| B605-4003 | 5.8 | 5.0 | 2.2 |
if you want any other specifications,please contact with us.
Check the following point
a) Inspect the nameplate and ensure it meets the order type and specification;
b) Inspect the entire exterior of the controller to ensure there are no scratches or other damage
caused by the transportation;
c) Ensure the guarantee odd number matches the controller.
If you have found any problem mentioned above, please contact the supplier.
