Intelligent Micro Wave Pet-Immunity Dual PIR Detector for Outdoor Use

Prod Model:	WL-838F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Feature:	PIR+ Mirco-Wave+Energy Analysis
Dection Distance:	18m
Pet-Immunity:	20kgs
Certificate:	Ce and RoHS
Guarantee:	2 Years Guarantee
Type:	Sensor
Installation Mode:	Wall Mounted
Application:	Home, Industry, Communication Electronic Product
Usage:	Anti-Theft

Product Description

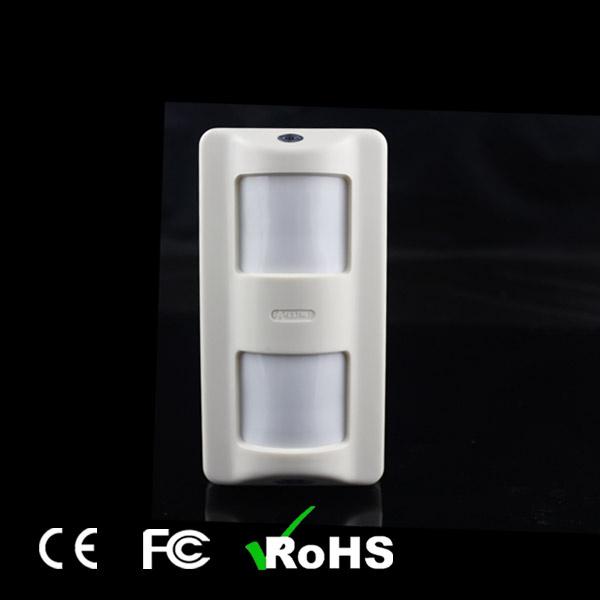

Intelligent Micro Wave Pet-Immunity Dual PIR Detector for Outdoor Use

Model: WL-838F


Feature:

1) IR dual-tech+MW+Energy analysis.
2) Anti-pet misstatement below 30kg, can prevent the misstatement of dogs, cats and other animals.
3) Has microprocessor controller, Adjustable microwave scope.
4) Real temperature compensation technology.
5) Adjustable dual polarity pulse count.
6) Resistance to white light & Rf interference. 30V/m-1GHz.
7) Super anti-false alarm technology.


Technical Specification:

1, Detecting range: 12m, detection angle: 110° ;
3, Working voltage: 9-12VDC, Working current: 45mA;
4, full range of waterproof, pest control design, the use of microprocessors;
5, Bipolar pulse count adjustable, sensor sensitivity: 4 level optional;
6, professional filters lens, anti-white light: 100000Lux Anti-sun direct interference;
7, the three-sensor composite detection and the ASTC fuzzy logic digital analysis, to exclude all the ordinary detectors can not be overcome interference, only alarm to the real human motion, the performance far beyond the ordinary outdoor detectors;
8, patent hyperbolic precision temperature compensation, regardless of how temperature ot enviorment changes, the detection sensitivity is consistent, there is no temperature dead zone
9, the super three-dimensional anti-false alarm patent technology, anti-glare, high winds, Small objects and a variety of inclement weather, pet immunity level: 25kgs


FAQ:

1. Warranty
Normally it's one year, but if you can be our agent it will be 2 years.

2. Why choose us?
AS the professional manufacturer in GSM home alarm system with 15years experience, we developed series of alarm system with high quality and competitive price. In first business, sample order is available. With professional R&D team to provide OEM&ODM service.

3. When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us by 86-18825231550.

4. Are your samples free or need cost?
It can be free, but anyway we have to charge for the samples first, the sample charge can be returned after official order placed.

5. How can I get your samples home security alarm system?
You're welcomed to email us for checking. It will be ready for delivery in 3-7 days after payment. The samples will be sent to you by express.


Model	WL-838F
Probe type	IR dual-tech+MW+Energy analysis
Working voltage	9-16VDC
Working current	35mA
Alarm contaacts	NC,12VDC,50Ma max
Tamper contact	NC,12VDC,100Ma max
Alarm time	2.2s min
Preheat time	2s
PFI characteristics	30V/m at 10Mhz to 1Ghz
Working temperature	minus 5°C to 55°C
Storage temperature	minus 20°C to 60°C
Dimensions	128*64*40mm
