Product Description

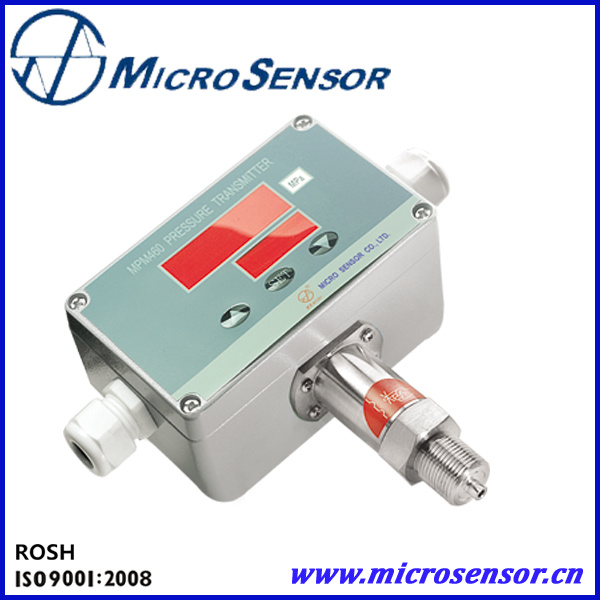

Intelligent MPM460 Pressure Transmitting Controller for science
Features:
1. Intelligent
2. Multifunctional
3. Easy to MODEM connection
4. IP65
5. RS485
Specifications:
| MPM460 | Pressure range: -0.10~0.01100MPa
Overpressure: Min. (1.5 times FS, 110MPa) |
1. Output signal: analog 4~20mADC, 0~10/20mADC or 0/1~5VDC; digital RS485
2. Accuracy: +0.25%FS(typ.); +0.5%FS(max.) including analog output's lin.,rep. and hys.
3. Zero temp.drift: +0.03%FS/ºC(≤100kPa) +0.02%FS/ºC(>100kPa)
4. FS temp.drift: +0.03%FS/ºC(≤100kPa) +0.02%FS/ºC(>100kPa)
5. Long-term stability: ≤+0.5%FS/year
6. Relay quantity: 1~5
7. Load: 240V/5A(AC)or 30V/5A(DC)
8. Relay life: >100000 times
9. Indicator: 4 digit 0.56 inch LED digit indicator; display range: -1999~9999
4 digit 0.36 inch LED situation display indicator
10. Power supply: 220VAC±15% or 220VDC or 24VDC
11. Max. consumption: ≤3.5W
12. Environment temp.: -10ºC~60ºC Frequency: 0~300Hz
13. Media temp.: -10ºC~80ºC Acceleration: ≤3×9.81ms-2
14. Storage temp.: -40ºC~125ºC Impact: ≤10×9.81ms-2
15. Pressure port: stainless steel 1Cr18Ni9Ti Diaphragm: stainless steel 316L
16. Electronic housing: aluminum-alloy Sealing: Viton or full-welded
17. Pressure port: Optional
Order Information:
| MPM460 | Multi-functional Intelligent Pressure Transmitting Controller |
| MPM460W | Multi-functional Intelligent Level Transmitting Controller |
| MDM460 | Multi-functional Intelligent Differential Pressure Transmitting Controller |
|
| Range | Pressure range: mH2O, kPa or MPa |
| [0~XmH2O]Lm | Level | 0~1200mH2O, X=actual measuring level, L=cable length(unit: m) |
| [0~X]kPa or MPa | Pressure | -0.10~0.01100MPa, X=actual measuring pressure |
| Differential pressure | Pressure
(kPa) | Overpressure kPa | Pressure
(kPa) | Overpressure kPa |
| + | - | + | - |
| 0~35 | 70 | 35 | 0~700 | 1400 | 700 |
| 0~70 | 150 | 70 | 0~1000 | 2000 | 1000 |
| 0~100 | 200 | 100 | 0~2000 | 4000 | 1000 |
| 0~200 | 400 | 200 | 0~3500 | 7000 | 1000 |
| 0~350 | 700 | 350 |
|
|
| Code | Output signal |
| E | 4~20mADC |
| F | 1~5VDC |
| J | 0~5VDC |
| Q | 0~10mADC |
| U | 0~20mADC |
| R4 | RS485 interface |
|
| Code | Construction material |
| Diaphragm | Pressure port | Housing |
| 22 | SS 316L | SS | Aluminum-alloy |
| 24 | SS 316L | SS 316L | Aluminum-alloy |
| 25 | Tantalum | SS | Aluminum-alloy |
| 35 | Tantalum | Hastelloy C | Aluminum-alloy |
|
| Code | Others |
| C1 | M20×1.5 male, face type seal | Only MPM460 |
| C3 | G1/2 male |
| C4 | G1/4 female | Only MDM460 |
| C5 | M20×1.5 male, waterline seal | Only MPM460 |
| G | Gauge |
| A | Absolute |
| S | Sealed gauge |
| PC1 | Flush diaphragm, M20×1.5 male |
| PC3 | Flush diaphragm, G1/2 male, |
| Jn | Relay quantity, n=1~5 |
| V1 | Power supply 24VDC |
| V2 | Power supply 220VAC |
| F1 | Fixed flange | Only MPM460W |
|
|
|
| MPM460 [0~200]kPa F 22 C3AJ1V1 the whole spec |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
