Product Description

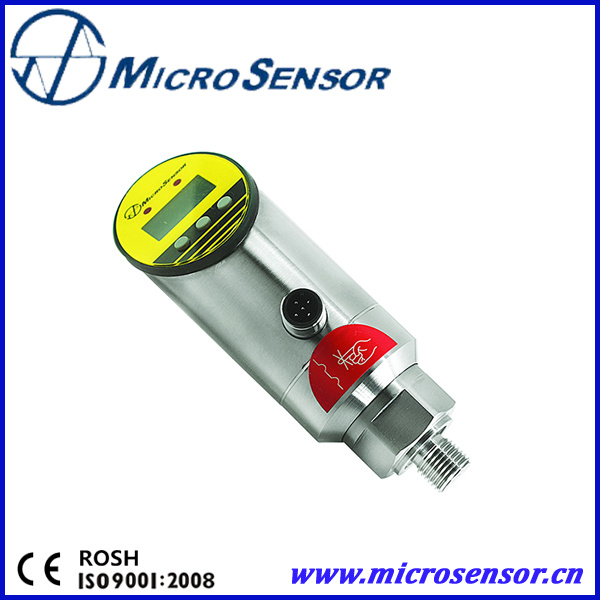

Intelligent OLED Display MPM5581 MODBUS Pressure Switch
Features:
1. Intelligent;
2. OLED display;
3. Gas and liquid measurement;
4. Body rorate 330o
Applications:
1. Chemical industry;
2. Pump industry;
3. Hydraulic equipments
Specifications:
1. Range: (MPa)
0.1,0.35,0.7,1.6,3.5,7,10,25,40,60
2. Range drift: 25%FS~100%FS
3. Pressure Type: Gauge, Absolute
4. Overpressure: 2×FS or 100MPa(min. value is valid)
5. Accuracy: ±0.5%FS
6. Hysteresis: ±0.2%FS
7. Thermal error: ±0.02%FS/ºC(Zero/FS)
8. Power supply: 12V~30VDC
9. Long Time Stability: ±0.3%FS/year | Outputs:
1 switch: 1×PNP
2 switches: 2×PNP
1 switch + voltage output: 1×PNP + 0V~5VDC/10VDC
2 switches + voltage output: 2×PNP + 0V~5VDC/10VDC
1 switch + current output: 1×PNP + 0mA/4mA~20mADC
2 switches + current output: 2×PNP + 0mA/4mA~20mADC
Switch current: 1.2A(Max.)
Switch life time: >100 times
Switch reaction: <10ms
Switch time delay: 0.00s~99.99s
Switch action pattern: Hys. Mode / Win. Mode |
Note: MS701 Communication adaptor shall be used to realize Modbus Communication function.
10. Screen display: Blue 128×64 OLED
11. Switch display: 2 red LED
12. Display units : kPaMPabarpsikgf/cm2
13. Key: 3 silicone rubber keys, pleas operate according to instructions on the screen.
14. Temperature display: referenced environment temperature
15. Peak display: Pressure peak in process | Working Temperature: -30ºC~70ºC
Storage Temperature: -40ºC~80ºC
Relative Humidity: 0%~85%
EMC: GB/T 17626.2/3/4-2006
Shoc: ≤10g/10Hz...500Hz(IEC 60068-2-6-2007)
Impact: ≤50g/11ms(IEC 60068-2-27-2008)
Protection: IP65 |
16. Housing: SS
17. Display board: PMMA
18. Diaphragm: SS 17-4/316L
19. Electric connection: M12×1 round plug
20. Gross weight: 300g |
|
Order guide:
| MPM5581 | Intelligent Pressure Switch |
| Code | Pressure Range and Type | Code | Pressure Range and Type |
| G1 | [0~0.1]MPa G | A1 | [0~0.1]MPa A |
| G2 | [0~0.35]MPa G | A2 | [0~0.35]MPa A |
| G3 | [0~0.7]MPa G | A3 | [0~0.7]MPa A |
| G4 | [0~1.6]MPa G | A4 | [0~1.6]MPa A |
| G5 | [0~3.5]MPa G | A5 | [0~3.5]MPa A |
| G6 | [0~7]MPa G | A6 | [0~7]MPa A |
| G7 | [0~10]MPa G |
| G8 | [0~20]MPa G |
| G9 | [0~40]MPa G |
| G10 | [0~60]MPa G |
| Code | Output |
| 1K | 1×PNP |
| 2K | 2×PNP |
| 1KV | 1×PNP+0V~5/10VDC |
| 2KV | 2×PNP+0V~5/10VDC |
| 1KA | 1×PNP+0/4mA~20mADC |
| 2KA | 2×PNP+0/4mA~20mADC |
| Code | Thread |
| C1 | M20X1.5 male, face-seal |
| C2 | G1/4 male |
| C3 | G1/2 male |
| C5 | M20X1.5 male, waterline seal |
| C6 | 1/4NPT male |
| Code | Others |
| R5 | 5-pin M12X1 male plug |
| R8 | 8-pin M12X1 male plug for Modbus communication |
| MPM5581 | G4 | 1KA | C2 | R5 | ←the whole spec. |
|
|
|
|
|
|
|
|
