Product Description

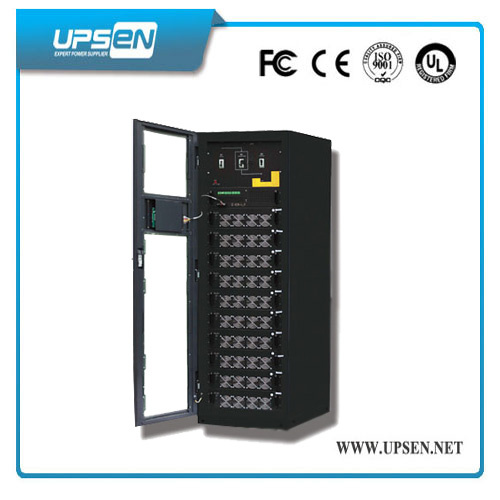

Intelligent Protection High Frequency Online Modular UPS with RS232, RS485
Key Features
1:IGBT rectifier technology.
2:Advantage data recorder.
3:Dual AC input source supportable
4:Use three level inverter technology.
5:UPS with Modular design and hot swappable.
6:Intelligent module and system protection design.
7:Modular UPS with pure sine waveform and stable output
8:System controller is used to carry out communications and diagnosis.
9:Double dsp control rectifierorbattery charger, inverter or discharger.
10:IGBT modules rather than discrete components are applied in the power module.
11:Superior capability of powering load:Output PF is 1, no need of power deration with load of leading or lagging PF.
Technical Specification
| MS Series 10K-200Kva |
Capacity |
10-200KVA |
Main Input |
Input voltage |
380V/400V/415V(line to line) |
Input frequency |
50/60Hz |
Power factor |
> 0.99 |
Input cuurent THD(Total Harmonic Distortion) |
< 3% |
Input voltage window |
-40%~+25% |
Frequency window |
40-70HZ |
Battery |
Battery voltage |
± 240VDC |
Charger power |
20%*Power |
Charger voltage precision |
1% |
Bypass |
Bypass voltage |
380V/400V/415V, three phase |
Bypass voltage window |
-20%-+15%, full load, settable |
Bypass overload capabiltiy |
150%, long time operation |
180%, shut down after 10 minutes |
> 180%, shut down after 200ms |
Output |
Output voltage |
380V/400V/415V, three phase |
Voltage precision |
± 0.5% (balance load), ± 1% (unbalance load) |
Voltage THD(Total Harmonic Distortion) |
THD< 1%(linear load), THD< 3%(nonlinear load) |
Power factor |
0.8 |
Phase tolerance |
120° ± 0.5° (balance and unalance load) |
Crest factor |
3: 1 |
Overload capabiltiy |
110%, transfer to bypass after 1hour |
125%, transfer to bypass after 10 minutes |
150%, transfer to bypass after 1 minute |
> 150%, transfer to bypass after 200ms |
System |
System efficiency |
Normal mode: 95% |
ECO mode: 99% |
Battery mode efficiency |
95% |
Display |
LCD+LED, Touch screen and keyboard |
IP class |
IP20 |
Interface (Communication Ports ) |
RS232, RS485, Dry contacts, SNMP card, EPO, Generator interface |
Installation/Connection |
Top or bottom cable connection |
Operation temperature |
0-40C |
Storage temperature |
-25~70C |
Relative humidity |
0-95% (non-comdensing) |
Noise(dB) |
< 55dB |
Weight(KG) |
6-module cabinet |
150KG |
10-module cabinet |
180KG |
Module |
10KVA: 20KG |
15KVA: 21KG |
20KVA: 22KG |
Dimension(W*D*H)(mm) |
6-module cabinet |
600*900*1600 |
10-module cabinet |
600*900*2000 |
Module |
400*600*133 (10KVA/15KVA/20KVA) |
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB boards
2: Full protection against over-discharge, overcharge, over load.
3: Strong shock resistance ability
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
