Product Description

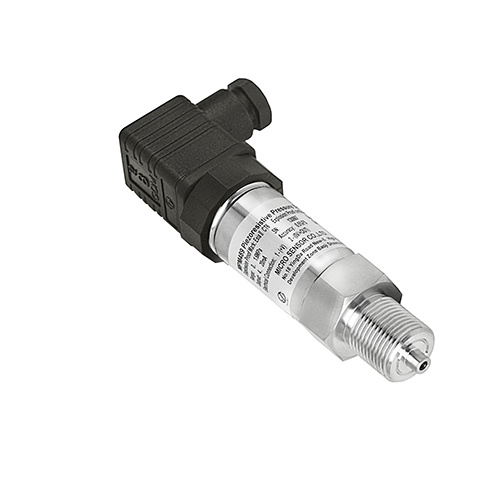

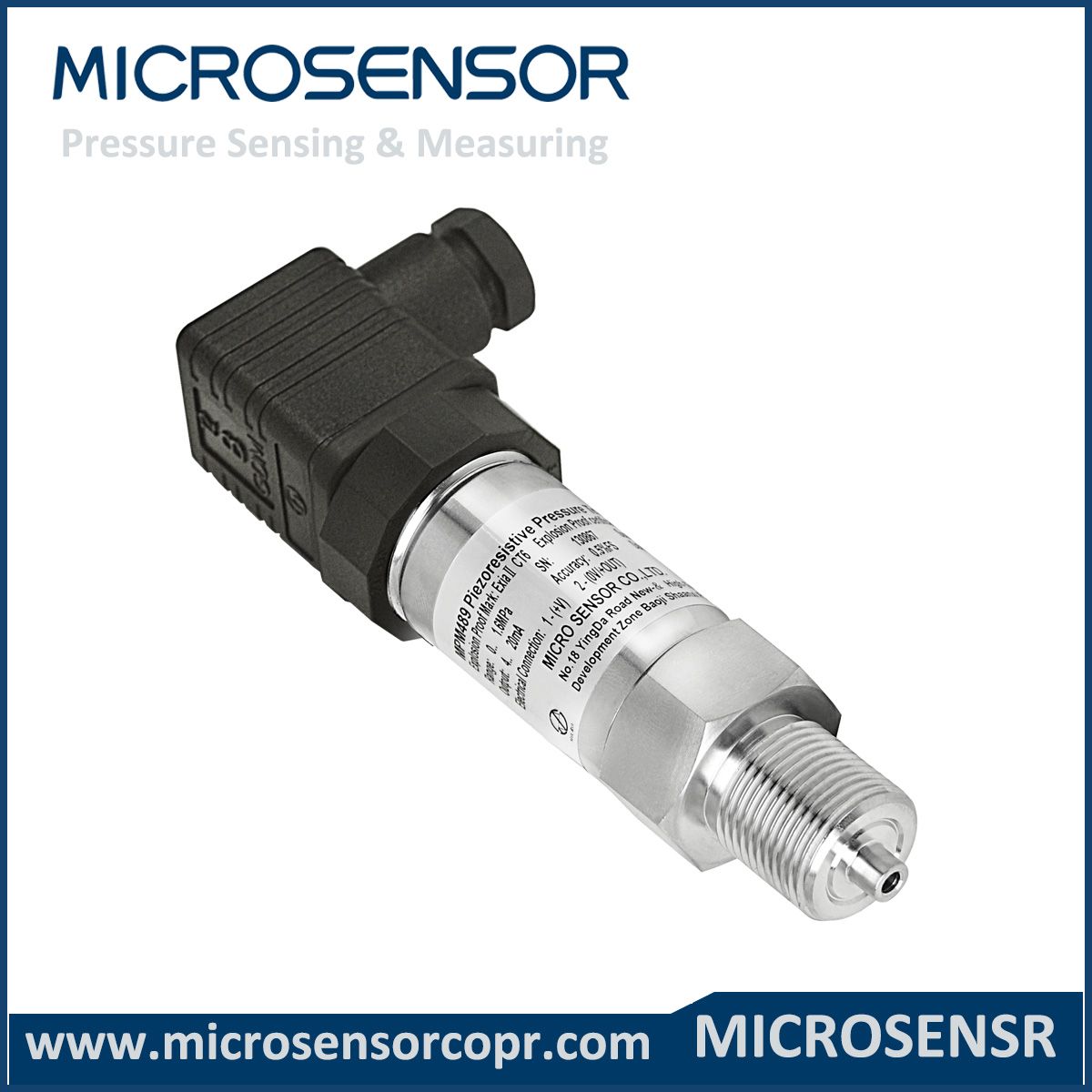

Intrinsic Safe IP65 Pressure Transmitter MPM489
Features
·Intrinsic safe
·Short protection and reverse polarity protection
·Measure gauge, absolute and sealed gauge
·Intrinsic safe version, conforming to Standard ExiaIICT6 of GB3836.4
·Exd product conforms to Standard GB3836.2, and Exd certificate is approved. Exd sign is ExdIICT6
·Ship-use product conforming to CCS Rules of Classification of Sea-going Steel Ships (2006)
·CE and RoHS approved
Introduction
MPM489 product is piezo-resistive pressure transmitter with zero and span adjustable. It uses high stable and reliable pressure sensor and special circuit board to produce transmitter, and performance is good and reliable. MPM489 pressure transmitter is used for measure and control of petroleum, chemi-industry, electric power, hydrology and flow pressure measure, etc.
Specification Performance | Pressure range | -0.1…0~0.01…100MPa |
| Overpressure | 1.5 times FS or 110MPa (min. value is valid) |
| Pressure type | gauge/ absolute / sealed gauge |
| Process connection | M20×1.5 male waterline seal (or on your demand) |
| Accuracy | 0.5%FS |
| Long term stability | +/-0.3%FS/year (max.) |
| Zero thermal drift | <=100kPa | 0.1%FS/C |
| >100kPa | 0.05%FS/C |
| Span thermal drift | <=100kPa | 0.1%FS/C |
| >100kPa | 0.05%FS/C |
| Compensation temperature | 0~50C |
| Application temperature | -30~80C |
| intrinsic safe version | -10~60C |
| EXD | -20~60C |
| Storage temperature | -40~120C |
| Power Supply | 11~28VDC |
| Output signal | 4~20mADC(2-wire) | 0/1~5VDC(3-wire) |
| Housing protection | IP65 |
| Electric connection | DIN43650 plug |

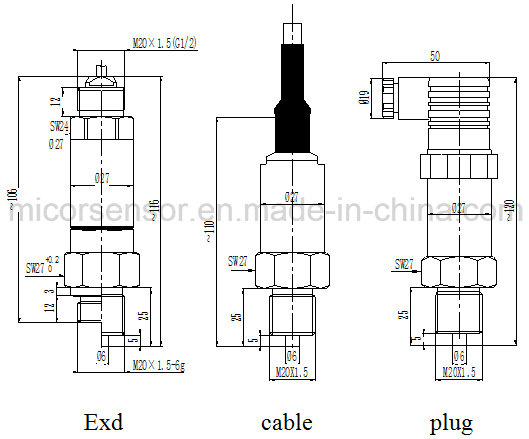

Outline Dimension
Order Information| MPM489 | Pressure Transmitter |
| | Range | Pressure range: -0.10~0.01100MPa |
| [0~X]kPa or MPa | X:the actual measured pressure |
| | | Code | Output signal |
| E | 4~20mADC |
| F | 1~5VDC |
| J | 0~5VDC |
| | | | Code | Construction material |
| Diaphragm | Pressure port | Housing |
| 22 | SS 316L | SS | SS |
| 24 | SS 316L | SS 316L | SS 316L |
| 25 | Tantalum | SS | SS |
| 35 | Tantalum | Hastelloy | SS |
| |
| Code | Others |
| B1 | Plug connection |
| B2 | Cable connection |
| PC1 | Flush diaphragm, M20×1.5 male |
| PC3 | Flush diaphragm, G1/2 male |
| M3 | 3 1/2 digits LCD digital indicator |
| M4 | 3 1/2 digits LED digital indicator |
| i | Intrinsic safe version: ExiaIICT6 |
| T | Ship-use |
| d | ExdIICT6 |
| C1 | M20×1.5 male, face type seal |
| C3 | G1/2 male (used for flush diaphragm type) |
| C5 | M20×1.5 male, waterline seal |
| G | Gauge |
| S | Sealed gauge |
| A | Absolute |
| | |
| MPM489 [0~100kPa] E 22 B1C5G the whole spec |
| | | | | | | | | | | | | |
