| Prod Model: |
GD200A |
| Application: |
General Transducer |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Invt |
Product Description

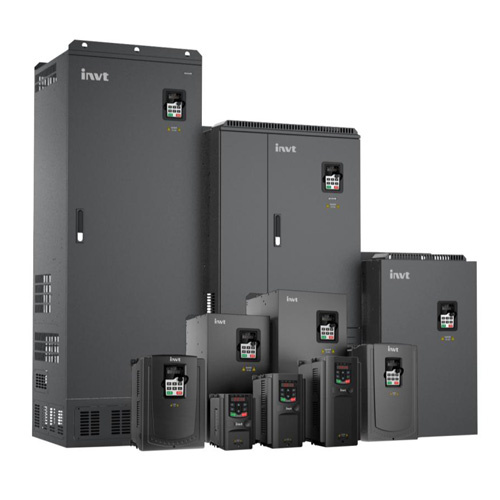

Based on DSP control system, Goodrive200A inverters apply V/f vector control and various protections to control asynchronous motors. The air duct, hardware and software have been greatly improved for better environment adaptability, operation and reliable quality certificated by TÜV SÜD.
Advantages:High performance, multi-function with simple operation and reliable quality certificated by TÜV SÜD.
Applications:Air compressor, Oil, Warming and water supply, Plastics machine, Mine, Fans and water pumps
| Function | Specification |
| Input | Input voltage (V) | AC 3PH 400V±15% |
| Input current (A) | Refer to the rated value |
| Input frequency (Hz) | 50Hz or 60Hz
Allowed range: 47~63Hz |
| Output | Output voltage (V) | 0~input voltage |
| Output frequency (Hz) | 0~400Hz |
| Technical control feature | Control mode | V/F |
| Motor type | Asynchronous motor |
| Speed ratio | Asynchronous motor 1:100 |
| Overload capability | G type:
150% of rated current: 1 minute
180% of rated current: 10 seconds
200% of rated current: 1 second
P type:
120% of rated current: 60 second |
| Running control feature | Frequency setting | Digital setting, analog setting, pulse frequency setting, multi-step speed running setting, simple PLC setting, PID setting, MODBUS communication setting.
Realize the shifting between the set combination and set channel. |
| Auto voltage adjustment | Keep a stable voltage automatically when the grid voltage transients |
| Fault protection | Provide over 30 fault protection functions: overcurrent, overvoltage, undervoltage, overheating, phase loss and overload, etc. |
| Speed tracking | Restart the rotating motor smoothly |
| Peripheral interface | Terminal analog input resolution | ≤10mV |
| Terminal switch input resolution | ≤ 2ms |
| Analog input | 2 channels (AI1, AI2) 0~10V/0~20mA and 1 channel (AI3) -10~10V |
| Analog output | 2 channels (AO1, AO2) 0~10V /0~20mA |
| Digital input | 8 channels common input, the Max. frequency: 1kHz
1 channel high speed input, the Max. frequency: 50kHz |
| Digital output | 1 channel high speed pulse output, the Max. frequency: 50kHz;
1 channel Y terminal open collector pole output |
| Relay output | 2 channels programmable relay output
RO1A NO, RO1B NC, RO1C common terminal
RO2A NO, RO2B NC, RO2C common terminal
Contactor capability: 3A/AC250V,1A/DC30V |
| Others | Mountable method | Wall, flange and floor mountable |
| Temperature of the running environment | -10~50ºC, derate above 40ºC |
| Ingress protection | IP20 |
| Cooling | Air-cooling |
| Braking unit | Built-in braking unit for below 30G/37P (including 30G/37P)
External braking unit for others |
| Braking resister | External braking |
| EMC filter | Optional built-in C3 filter: meet the degree requirement of IEC61800-3 C3
Optional external filter ,meet the degree requirement of IEC61800-3 C2 |
