Invt Mg 4kVA/4.6kVA/5kVA Single Phase Grid-Tied PV Inverter
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
4kVA/4.6kVA/5kVA |
| Display: |
LCD/LED |
Product Description

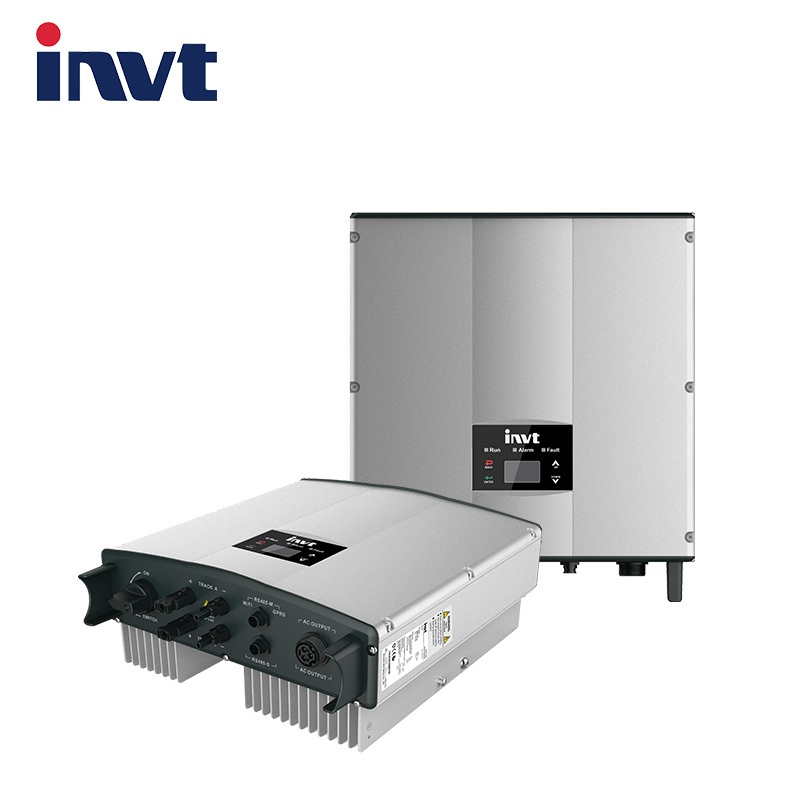

DescriptionMG series single phase inverter is developed by INVT for residential users. MG series inverters have the advantages of compact size, light weight, easy installation and maintenance, and are above all cost efficient.
Specification | | MG4KTL | MG4K6TL | MG5KTL |
| INPUT (DC) |
| Max. DC input power (W) | 4800 | 5520 | 6000 |
| Max. DC input voltage (V) | 600 |
| Starting voltage (V)/ | 120/100 |
| Min. opration voltage (V) |
| MPPT Range(V) | 120-550 |
| Number of MPPT / | 1/2 |
| String per MPPT |
| Max. DC current (A) Per MPPT | 19x1 | 21x1 | 23x1 |
| x Number of MPPT |
| DC switch | Optional |
| OUTPUT (AC) |
| Rated output power (W) | 4000 | 4600 | 5000 |
| Max. AC output current(A) | 20 | 22 | 24 |
| Grid voltage range | 230/180~277V |
| Grid frequency range | 50Hz(44~55Hz) / 60Hz(54~65Hz) |
| Power factor | ≥0.99 (at rated power) |
| THDi | < 3% (at rated power) |
| AC output | Single-phase(L,N,PE) |
| SYSTEM |
| Cooling method | Natural cooling method |
| Max. efficiency | 97.70% | 97.70% | 97.80% |
| Euro-efficiency | 96.50% | 96.70% | 96.80% |
| MPPT efficiency | 99.90% |
| Protection rating | IP65 |
| Self-consumption(at night) (W) | <1 |
| Topology | Transformerless |
| Operating temperature range | -25ºC~+60ºC(derate after 45ºC) |
| Relative humidity | 0~95%,no condensation |
| Protection | PV array insulation protection, PV array leakage current protection, Ground fault monitoring, |
| Grid monitoring, Island protection, DC monitoring, Short current protection etc. |
| DISPLAY AND COMMUNICATION |
| Display | LED (standard) / LCD(optional) |
| LCD language | English, Chinese, German, Dutch |
| Communication interface | RS485 (standard) ;WiFi,Ethernet(optional) |
| MECHANICAL PARAMETERS |

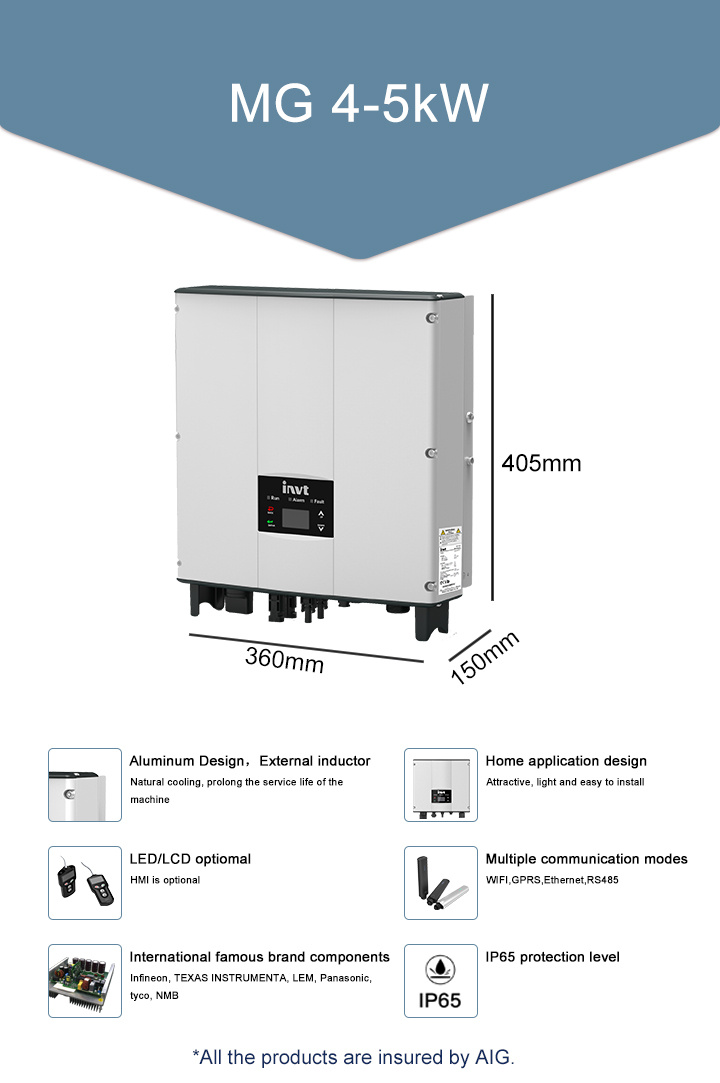

| Dimension (H x W x D mm) | 405×360×150 |
| Weight (kg) | ≤15 |
| Installation | Wall mounting |
| OTHERS |
| DC terminal | MC4 |
| Grid standard | DIN VDE 0126-1-1:2013,VDE-AR-N 4105:2011,DIN VDE V 0124-100:2012, |
| G83-2 :2012,G59/3-2:2015,IEC 61727(IEC62116),AS/NZS 4777.2:2015, |
| NB/T32004-2013,IEC 60068-2-1:2007,IEC 60068-2-2:2007, |
| IEC 60068-2-14:2009,IEC 60068-2-30:2005,IEC 61683:1999 |
| Safe certificate / | IEC 62109-1 :2010,IEC 62109-2 :2011,EN 61000-6-2: 2005, |
| EMC category | EN 61000-6-3:2007/A1:2011 |
| Factory warranty (years) | 5 |
INVT, which was established in 2002, has always been committed to be a respected global leading provider of industrial automation and power electric products and service. In 2010, it listed as an A-share company on the Shenzhen Stock Exchange (stock code: 002334). INVT has 15 years of experience in the accumulation of power electronics technology and invert technology, its iMars series grid-tied solar inverters have a better performance on the aspect of product stability, efficient power transformation, low harmonics, and safe power grid access and so on for its top-level R&D team. INVT Solar Technology (Shenzhen) Co., Ltd., whose main products include on-grid solar inverter, hybrid solar inverter, off-grid solar inverter, solar pumping inverter, terminal options, system monitoring software, etc.. They can be widely used in distributed solar grid-tied power generation systems, such as BAPV (house roof, office building roof and factory roof), BIPV (integrated residential buildings), and commercial plants and so on. The products are exported to more than 60 countries and regions in Europe, Australia, Southeast Asia, Middle East, and South America and so on. The company's products have passed a number of international and domestic certification and testing, such as TÜV/ CE / AS4777/ CEC/ CQC and so on. INVT Solar, as a PV leader, is committed to R&D high efficiency, high performance, and high-quality solar inverter, to provide clients with a full range of solutions. At the same time, based on its own powerful Internet of Things monitoring platform center, INVT independently developed a remote monitoring system to solve remote maintenance problems. It established more than 40 maintenance points all over the world, which has built a closed-loop, seamless, linking model to provide service for customers by online diagnosis and offline services.INVT Solar has a professional technical support, efficient production delivery and outstanding after-sales service. On the way to be a PV leader, we will accelerate the development of PV business and market layout in the future, and constantly close to customer needs. As well we committed to become a reliable new energy solutions provider, to make our mission come true-Power by solar, Cool the earth.
INVT, established in 2002, is committed to be the globally leading and respected provider for products and services of industrial automation and electric power. In 2010, it listed as an A-share company on the Shenzhen Stock Exchange (stock code: 002334).
INVT is a national-level high-tech company with nine subsidiaries, whose business involves AC drive, industrial control, new energy, rail traction, servo and motion control, energy management, building intelligence system, etc.
PV business is the most important part of INVT electric power products and service, which is committed to provide the most stable solar inverters to the world.
Based on the understanding of development and the requirement of solar grid-tied power generation system and following the stable, high efficient and maintenance-free product design concept, accumulated 14 years of R&D and application experience in the field of core inverter and control technology, INVT is extending its PV business and has launched the iMars series of grid-tied solar inverters successfully.
IMars series grid-tied solar inverters have a better performance on the aspect of product stability, efficient power transformation, low harmonics, safe power grid access and so on. They can be widely used in BIPV(house roof, office building roof and factory roof), BAPV(integrated residential buildings), commercial rooftop plants and on ground solar power plants, to provide customers with stable, safe and efficient renewable energy.
Up to now, INVT solar inverters have been widely used by over 200, 000 happy customers in more than 60 countries.
