Product Description

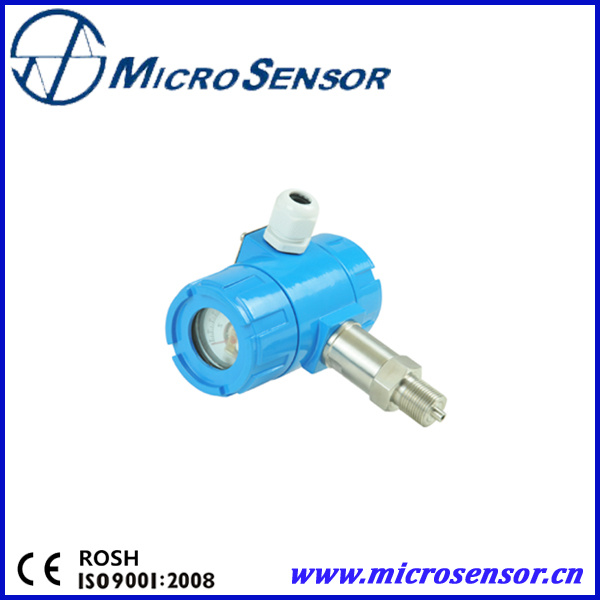

IP65 Ship Use MPM483 Pressure Transmiiter With LED display
Features:
1. IP65
2. Zero elevation and pressure range adjustable
3. Reversed-polarity, transient current &over voltage, anti-interference protection.
4. Optional output signals
5. Optional 0~100% hand pointer, LCD, LED indicator
6. Stainless steel pressure port and optional flush, tantalum diaphragm
Specifications:
| Code | 0A | 02 | 03 | 07 | 08 | 09 | 10 | 12 | 13 | 14 | 15 | 17 | 18 | 19 | 20 |
| Unit | kPa | MPa |
| Measure range | 0-10
~0-35 | 0-20
~0-70 | 0-30
~0-100 | 0-60
~0-200 | 0-100
~0-350 | 0-200
~0-700 | 0-0.3
~0-1.0 | 0-0.6
~0-2.0 | 0-1.0
~0-3.5 | 0-2.0
~0-7.0 | 0-3.0
~0-10.0 | 0-4.0
~0-20.0 | 0-8.0
~0-40.0 | 0-10.0
~0-60.0 | 0-20.0
~0-100.0 |
| Upper limit | 35 | 70 | 100 | 200 | 350 | 700 | 1.0 | 2.0 | 3.5 | 7.0 | 10.0 | 20.0 | 40.0 | 60.0 | 100.0 |
| Overpressure | 100 | 100 | 150 | 300 | 500 | 1000 | 1.5 | 3.0 | 5.0 | 10.0 | 15.0 | 30.0 | 60.0 | 90.0 | 110.0 |
| |
| Basic error | Min. | Typ. | Max. | Unit |
| Non-linearity | 0A~03 code | | 0.25 | 0.5 | ± %FS |
| 07~19 code | 0.1 | 0.25 | 0.5 | ± %FS |
| Hysteresis | 0A~03 code | | 0.15 | 0.25 | ± %FS |
| 07~19 code | 0.05 | 0.1 | 0.15 | ± %FS |
| Repeatability | 0A~03 code | | 0.25 | 0.5 | ± %FS |
| 07~19 code | | 0.15 | 0.25 | ± %FS |
| Temp. effect | 0A~03 code | 0.5 | 1 | 2 | ± %FS, @25º C |
| 07~19 code | 0.3 | 0.5 | 1 | ± %FS, @25º C |
| Stability | 0.3 | ± %, one year |
| Media temp. | -30~80 | º C |
| Environment temp. | -30~80 | º C |
| Power supply | 15~30VDC | 15~28VDC | 15~28VDC |
| Output signal | 4~20mADC | 0~10/20mADC | 0/1~5/10VDC |
| Transmitting | 2-wire | 3-wire | 3-wrie |
| Load | ≤ (U-15)/0.02Ω | ≤ (U-15)/0.02Ω | > 5kΩ |
| Pressure port | Stainless steel 1Cr18Ni9Ti |
| Diaphragm | Stainless steel 316L |
| Sealing | Viton O-ring or Full-welded |
| Electric housing | Aluminum-alloy, < , /, , SPAN, > |
| Protection | IP65 |
| | | | | | | | | | | | | | | | | | | | | | |
Order Guide
| MPM483 | Piezoresistive Pressure Transmitter | |
| | | Pressure range | Range:-100kPa0kPa~10kPa70MPa | |
| | | [0~X]kPa
or MPa | X:actual measurement range | |
| | | | Code | Output Signal | |
| | | | E | 4mA~20mA DC | |
| | | | F | 1V~5V DC | |
| | | | J | 0V~5V DC | |
| | | | V | 0V~10V DC | |
| | | | | Code | Construction Material | |
| | | | | | Diaphragm | Pressure Port | Housing | Electric Housing |
| | | | | 22 | SS316L | SS | SS. | Aluminum-alloy |
| | | | | 24 | SS316L | SS316L | SS.316L | Aluminum-alloy |
| | | | | 25 | Tantalum | SS | SS. | Aluminum-alloy |
| | | | | 35 | Tantalum | Hastelloy | SS. | Aluminum-alloy |
| | | | | | Code | Others | |
| | | | | | M1 | 0%~100% hand pointer indicator(only for 4mA~20mA DC) | |
| | | | | | M3 | 3½LCD digital indicator(only for 4mA~20mA DC) | |
| | | | | | M4 | 3½LED digital indicator(only for 4mA~20mA DC) | |
| | | | | | PC1 | Flush diaphragm, M20×1.5 male | |
| | | | | | PC3 | Flush diaphragm, G½ male | |
| | | | | | i | Intrinsic safe version ExiaIICT6 Ga | |
| | | | | | d | Exd version Exd II CT6 Gb | |
| | | | | | T | Ship-use | |
| | | | | | C1 | M20×1.5 male, face type seal | |
| | | | | | C3 | G½ male | |
| | | | | | C5 | M20×1.5 male, waterline seal | |
| | | | | | A | Absolute | |
| | | | | | S | Sealed gauge | |
| | | | | | G | Gauge | |
| | | | | | | | |
| MPM483 [0~100]kPa E 22 C5G the whole spec. | |
Micro Sensor Co., Ltd, the leading manufacturer of piezo-resistive pressure sensors and transmitters in China, was founded by Sino-US joint venture in 1993. We are providing pressure sensing & measuring solutions to customers all over the world.
With Digital Wide-Temperature Compensation, Non-linearity Correction and Data-Collection by Bus Operation, we supply users OEM pressure sensors, pressure transmitters, level transmitters, measuring and controlling instruments, which have high quality and reliable performance in the local on-site environment.
Based on more than 20 years production experiences, Micro Sensor now have manufacturing capacity of 1.2 million pieces pressure sensors and 400 thousand pieces transmitters in one year. And we are also capable to satisfy the customized specification and designs according to clients' Specified requirements.
Quality is the life of company. Micro Sensor executes I S O 9 0 0 1 International Management System strictly to make sure every procedure qualified in our production. Furthermore, the main products for pressure sensors and transmitters, are also certificated by C E, R o H S, C B, U L and A T E X respectively for different global markets.
Micro Sensor now does business with customers more than 70 countries. More and more global friends know Micro Sensor and make win-win cooperation with us. Wherever you are, whenever you are, find Micro Sensor for any pressure sensing & measuring question. We are looking forward to supporting you with our best services!
