| Prod Model: |
HBS1-BF-11, 11Z, 11D, 11DZ, 22, 22Z, 22D, 22DZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mounting Hole Size: |
16mm |
| Rating Value: |
5A/250V AC |
| Head Shape: |
Round/Square/Rectangle |
| Terminal Type: |
Pin Terminal |
| Crust Material: |
Plastic |
| Head Color: |
Red/Green/Blue/White/Orange/Yellow |
| Contact Configuration: |
1no1nc/2nocnc/3no3nc |
| Operation Type: |
Momentary/Latching |
| Protection Degree: |
IP40, IP65 |
| Illuminated Type: |
Head Illuminated |
| Usage: |
Check Button |
| Kind: |
Double-pole on-off Switch |
| Brand: |
Hban |
| Certification: |
CE, RoHS, ISO9001 |
| Type: |
1no1nc, 2no2nc |
Product Description

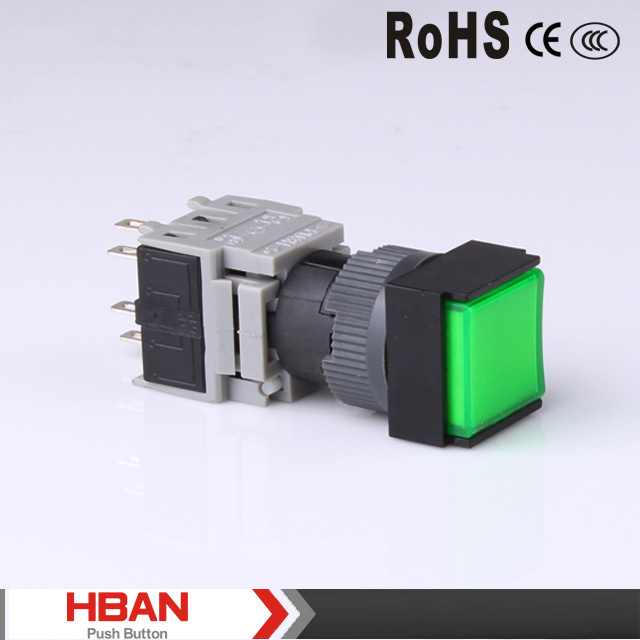

Green illuminated heavy duty pushbutton
Mounting hole size: 16mm
Rating Value: 5A/250V AC
Contact Configuration: 1NO1NC/2NO2NC/3NO3NC
Head shape: Round/Square/Rectangle
Operation Type: Momentary/Latching
Terminal type: Pin terminal
IP Degree: IP40
Packing details:
We pack 40 pieces diameter 16mm metal push button switches into 1 foam box to protect them. We supply 1 piece guarantee card with these switches. Then we packed this foam box into a kraft paper box, 25boxes will be packed into a carton.
About Us:
Yueqing Dahe Electric Co., Ltd is a professional manufacturer of push button switch, signal lamp, buzzers,
Waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.
Our products are widely used in machinery, machine tools, electric power, electronics, production control,
Medical, banks, ships, automation and other industries.
We can customize push button switch according to your specification, If you have any requirement or question, please feel free to contact us.
Tel: 0086-577-62708000 Fax: 0086-577-62708007
|
Item NO. |
HBS1-BF-11 |
HBS1-BF-11Z |
HBS1-BF-11D |
HBS1-BY-11DZ |
|
Front Head Shape |
Square,1NO1NC,non-illuminated,Momentary |
Square,1NO1NC,non-illuminated,Latching |
Square,1NO1NC,illuminated,Momentary |
Round,1NO1NC,illuminated,Latching |
|
Item NO. |
HBS1-BF-22 |
HBS1-BF-22Z |
HBS1-BF-22D |
HBS1-BY-22DZ |
|
Front Head Shape |
Square,2NO2NC,non-illuminated,Momentary |
Square,,2NO2NC,non-illuminated,Latching |
Square,2NO2NC,illuminated,Momentary |
Round,2NO2NC,illuminated,Latching |
|
Item NO. |
HBS1-BF-33 |
HBS1-BF-33Z |
HBS1-BF-33D |
HBS1-BY-33DZ |
|
Front Head Shape |
Square,3NO3NC,non-illuminated,Momentary |
Square,3N03NC,non-illuminated,Latching |
Square,3NO3NC,illuminated,Momentary |
Round,3NO3NC,illuminated,Latching |
|
Terminal Type |
Pin terminal (2.8x0.5mm) |
|
Switch Type |
1NO1NC/2NO2NC |
|
Switch Specification |
5A/250VAC |
|
Contact Resistance |
≤50mΩ |
|
Insulation Resistance |
≥100 MΩ |
|
Dielectric Strength |
2000V,AC 50Hz,1 min |
|
Operating Temperature |
1000V,AC 50Hz,1 min |
|
Shock Resistance |
≥10g |
|
Operating Temperature |
-25°C ~ +55°C |
|
Mechanical Life |
1,000,000 times |
|
Electric Life |
>30,000 times |
|
Operating Stroke |
About 3 mm |
|
Protection Degree |
IP40 |
|
Materisl |
Contact |
Sliver ,Sliver Alloy,Golden-plate silver |
|
Lamp Type |
AC LED Lamp (Standard) |
|
LED Rated Voltage |
AC/DC 6V,AC/DC12V,AC/DC/24V,
AC/DC110V,AC/DC220V |
Lamp
Parameters |
LED Color |
Red,Green,Yellow,Orange,Blue,White |
|
Life |
About 40,000 hours |
