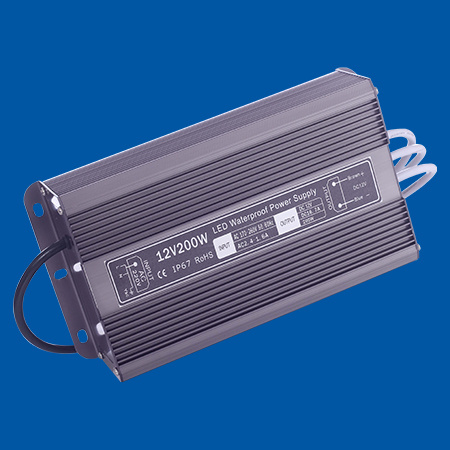

IP67 200W LED Driver DC12V Waterproof Power Supply for LED Lamp

Prod Model:	HLT-PW200D12F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item No:	Hlt-Pw200d12f
Rated Power:	200W
Output Voltage:	DV12/ DC24V
Rated Current:	16.6A/ 8.3A
Ripple And Noise Note:	100MVP-P
Input Voltage Range:	90-130V, 170-260V
Setup, Rise, Hold Up Time:	200ms 50ms 20ms
Frequency Range:	50~60Hz
Housing Shell:	Aluminum Shell Good for Heat Transfer
Product Dimension:	236*123*60mm
Output Type:	Single
Warranty:	>2 Years
Output Power:	101 - 200W
Input Voltage:	Full Range
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CB
Brand:	Huaron

Product Description

Product Item: HLT-PW200D12F
Output voltage:12V/24V
Rated Current: 16.7A / 8.33
Rated Power: 200W
Ripple and Noise Note: 100mVp-p
Setup Rise Hold up time: 200ms 50ms 20ms
Voltage Range: 90-130V, 170-260V
Frequency Range: 50~60Hz
AC  Inrush Current: 50A/230V
Leakage Current: 3.5mA/240VAC
Housing shell: Aluminum shell good for heat transfer
Product Dimension: 236*123*60mm
Products weight: 2.6kg

Description:

Built-in EMI filter 100% load test Full range of input voltage Output voltage accurate and stable Output over-voltage, over-current and short-circuit protection Output low ripple and noise Two year warranty Average working no trouble >50,000 hours

>>>Features:
Universal AC input/Full range
Protection: Short circuit/Overload/Over voltage/Over temperature
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effectively
100% full load burn-in test
Ideal for indoor or outdoor installations
New design with small size, light weight, easy for installation
Suitable for LED lighting and moving sign applications
2 years warranty

>>>Protection:
Over Current: 105-150% rated output power. Protection type: Hiccup mode, recovers automatically after fault condition is removed.
Over Voltage: Protection type: shut down o/p voltage, re-power on to recover.
Short Circuit: Auto Recover
Protection grade: IP67

>>>Enviroment:
Working Temp: - 30 ~ 50 °c / 20% ~ 90% RH (no frost)
Storage Temp: -40 ~ 80 °c / 20% ~ 90% RH (no frost)
Temp. Coefficient: 0.03%°C (0~50°C)
Vibration Frequency: 10~500Hz, 2G 10min/1cycle, period for 60 min. each long X, Y, Z axes
Certificate:
ISO 9001: 2008,CE,ROHS,LVD ETC
