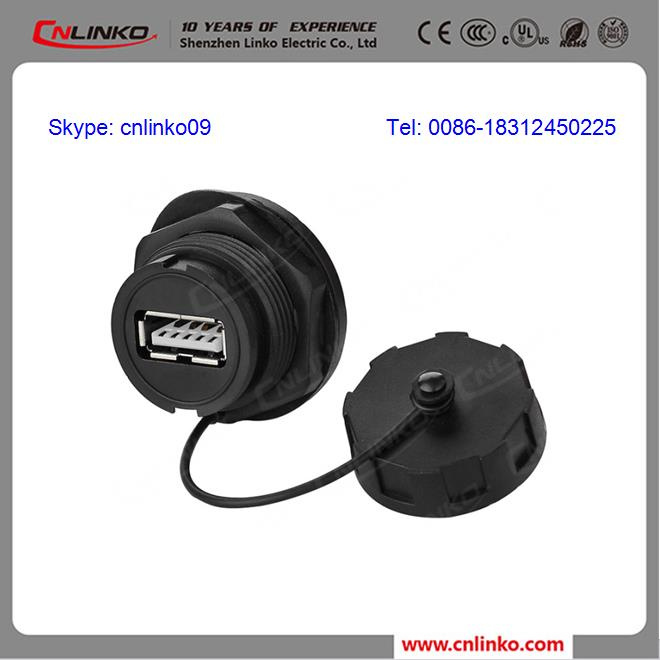

IP67 PBT Circular Waterproof USB Receptacle with High Speed for Digital Cameras

Name: IP67 PBT Circular Waterproof USB Receptacle with High Speed for Digital Cameras
Brand: all-electronics-online.com
SKU: 778015875
Availability: InStock
Rating: 4.3 (40 reviews)

Price:	US $ 2.1/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	YU-USB2-JSX-01-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connector Port:	USB3.0 Female
MOQ:	100PCS
Rated Current:	1.5A
Withstanding Voltage:	1000V
Waterproof Level:	IP65
Application:	Residential/General-Purpose
Grounding:	Standard Grounding
IP Rating:	IP65

Product Description

IP67 PBT Circular Waterproof Usb Receptacle With High Speed For Digital Cameras

With PBT shell performance stable, compression, anti-explosion and anti-deformation unique dock connecting to extend cable length and Solid connections system can provide the solutions for data transmission in harsh environments, easy to install and operate.

Widely used in:
Computers
Digital cameras,
Scanner and other transmission equipment.

Product Datasheet:

YU-USB2-JSX-01-001 Female Socket
Specification
Connecting mode:	Quickly bayonet connect
Protection level:	IP67
Cable specification:	0.15 mm2 ~ 0.2mm2 /26~24AWG
Diameter range:	Φ5.5mm ~Φ7mm
Contact diameter×Qty:	4
Current rating(A):	1.5A
Withstand voltage(AC.V)1min:	1000V
Contact resistance:	<30mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	solder
Prevent the combustion level:	UL94-V0
Produce type:	Usb Panel Mount Connector

Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel

Main characteristics:
- Sealed against dust and fluid (IP65/IP67)
- Vibration resistance,impact resistance,stretching resistance
- With one hand, can quickly insert or pull out

Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery

Packaging & Shipping

1. 10pcs to a box, 24 boxes to a carton,or use customized packing with MOQ1000 pcs/model boxes.
2. Lead time: 3-5 working days after received deposit for Usb Panel Mount Connector
3. DHL/UPS/Fedex/EMS/TNT(door to door) or use customer partner

Our Services

1.Supply OEM and ODM service for Usb Panel Mount Connector
2.With professional quality control system and R&D department
3.To make customized needs with national level laboratory
4.Free samples are available for Waterproof Usb Panel Mount Connector
5.supply the best service to you with the contact details below:

TEL: 0086-0755-86960323 FAX: 0086-0755-86960305
Cellphone: 0086-183 1245 0225 Eunice Tan

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
