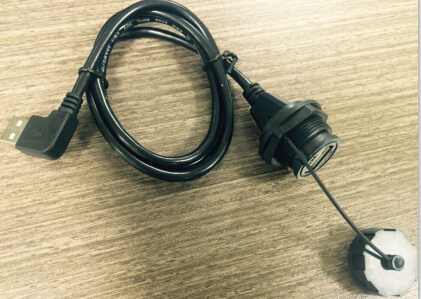

IP67 USB2.0 Waterproof Connector with 1m Cable/ Right Angle USB Connector

Name: IP67 USB2.0 Waterproof Connector with 1m Cable/ Right Angle USB Connector
Brand: all-electronics-online.com
SKU: 798321235
Availability: InStock
Rating: 4.9 (27 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	YU USB
Certification:	UL, Ce, RoHS, CCC, ISO9001
Protection Level:	IP65/67
Pin:	9pin
Connecting Mode:	Quickly Bayonet Connect
Cable Length:	1m or Customized
Gender:	Female
Application:	UHF

Product Description

ip67 usb2.0 waterproof connector with 1m cable/ right angle usb connector

Data Communication dynamic connector female solder usb3.0 connector cable usb 3.0 usb type A
USB plugs and sockets are applicable to data transmission with quickly plug,fast transfer rate and strongly extensibility.They are widely used in computers,digital cameras,scanner and other transmission equipment,Varies types,can achieve male and female conversion docking,independent female,male with cable and so on.

1.Independent USB3.0 socket design,easy to install and operate.
2.Achieve double-headed male to female adapter,snap locking,ensure safe and stable.
3.Cable can be customized.
4.Compatible with USB2.0,protection level IP67.
5.Sheath of cable protect cable outlet well.
6.Solid connections system can provide the solutions for data transmission in harsh environments.

YU-USB3-JSX-03-100 usb male to female with 1m cable
Specifications:
Connecting mode:	quickly bayonet connect,
Protection level:	IP68
Cable specification:	0.15 mm2 ~ 0.2 mm2 /26~24 AWG
Diameter range:	Φ5.5mm ~Φ7mm
Contact diameter×Qty:	9
Current rating(A):	1.5A
Withstand voltage(AC.V)1min:	1000V
Contact resistance:	<5mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	Solder
Prevent the combustion level:	UL94-V0
Temperature rise:
Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel
Main characteristics:
- Sealed against dust and fluid (IP68)
- Vibration resistance,impact resistance,stretching resistance
- With one hand, can quickly insert or pull out
Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery
