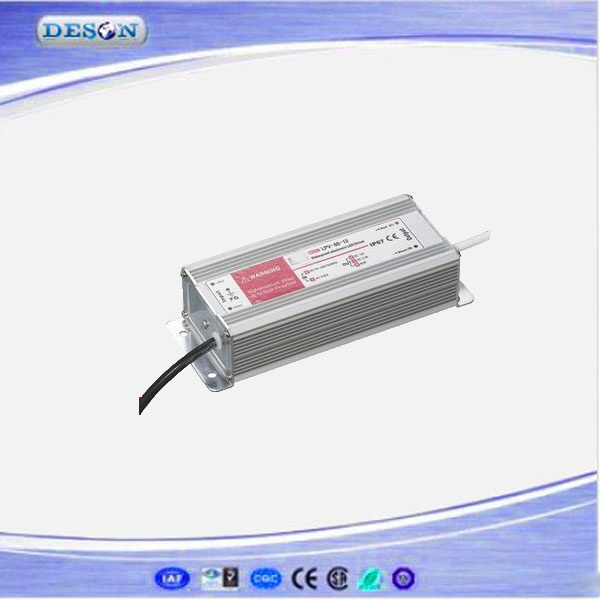

IP67 Waterproof 60W Single Output Switching Mode Power Supply

Name: IP67 Waterproof 60W Single Output Switching Mode Power Supply
Brand: all-electronics-online.com
SKU: 788312175
Availability: InStock
Rating: 4.5 (47 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPV-60
Power:	60W
Input:	85 ~ 264VAC 120 ~ 370VDC
Output:	5V/12V/24V
Size:	183X30X20mm
Weight:	1kgs
Output Type:	Single
Warranty:	2 Years
Input Voltage:	Full Range
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Output Power:	60W
Brand:	Deson
Energy Transmission:	Swithing Mode Power Supply

Product Description

IP67 Waterproof 60W Single Output Switching Mode Power Supply

1.Universal AC Input
2.Small size, light weight
3.Protection : short circuit/Overload/Over voltage/ Over temperature
4.Cooling by free air convection
5.100% full load burn-in test
6. 2 years warranty

Product Description

Model Specification	LPV-60-12	LPV-60-15	LPV-60-24	LPV-60-48
DC Output voltage	12V	15V	24V	48V
Rated output current	5A	4A	2.5A	1.3A
Output current range	0~5A	0~4A	0~2.5A	0~1.3A
Error	±5%	±5%	±5%	±5%
Wave and noise(Note:3)	100mVp-p	150mVp-p	150mVp-p	150mVp-p
DC output power	60W	60W	60W	62.4W
Efficiency	83%	83%	83%	85%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%
AC input voltage range	100~250VAC ,47~63Hz,240~370VDC
Input current	1.8A/115VAC 0.9A/230V
AC Inrush current	Cold-start current 36A/230V
Leakage current	<1mA/240VAC
Overload protection	115%-135% Type: hiccup mode Reset: auto-recovery
Over-voltage protection	115%-135% cut off the output, Reset: auto-recovery
Vibration	10 ~ 500Hz, 2G 10min./1cycle, 60min. each axes
High-temperature protection	≥85°Ccut off the output,Reset: auto-recovery
Water level	IP67
Setup, rise, hold up time	200ms 100ms 30ms
Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1 minute
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Working temperature and humidity	-10°C~+60°C,20%~90%RH
Overall dimension	1837147mm
Weight	1.0kgS 18pcs/ctns
