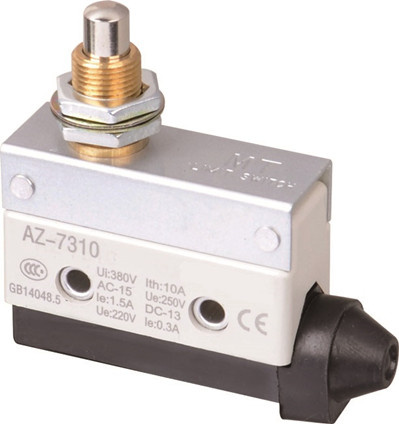

IP67 Waterproof D4mc High Utility Enclosed Switch (TZ-7310)

Name: IP67 Waterproof D4mc High Utility Enclosed Switch (TZ-7310)
Brand: all-electronics-online.com
SKU: 714596792
Availability: InStock
Rating: 4.3 (57 reviews)

Price:	US $ 0.85-1.09/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	AZ-7310
Pressing Type:	Push-Button
Size:	Small-Sized
Environment:	﹤250℃
Protection:	IP54

Product Description

Model

AZ-7100

AZ-7110

AZ-7310

AZ-7311

AZ-7312

AZ-7120

AZ-7140

AZ-7121

AZ-7141

AZ-7124

AZ-7144

AZ-7166

OF(Max.)

600g

150g

220g

180g

240g

200g

280g

120g

RF(Min.)

100g

40g

60g

50g

80g

60g

100g

PT(Max.)

2.0mm

13.5mm

8.5mm

11.0mm

6.5mm

11mm

6.5mm

250mm

OT(Min.)

0.8mm

0.5mm

6.0mm

4.0mm

2.5mm

3.0mm

2.0mm

3.0mm

2.0mm

11mm

MD(Max.)

0.8mm

3.2mm

2.0mm

2.4mm

1.5mm

2.4mm

1.5mm

OP(mm)

30.5±0.8

44±1.2

21.8±1.2

33.3±1.2

25±1

40±1

50±1.2

35mm

32mm

46mm

56mm

Weight(kg)

0.07

0.085

0.09

0.054

0.057

0.056

0.062

0.061

0.083

Characteristics of Contact Module
Rated operating characteristics	Inductive load:∼AC15,B300(Ue=240V,le=1.5A)-DC-13,R300(Ue=250V,le=0.1A) Resistive load:250V,5A
Rated insulation voltage	Ui=500V,class of pollution is 3, comply with IEC 60947-1;Ui=300V,comply with UL508,CSA C22-2n° 14
Insulation resistance	100mΩ above(megohmmeter of 500VDC)
Operating frequency	Mechanical:maximum 240 times/min;electrical:maximum 20 times/min
Electrical life	above 500,000 times
Contact resistance	Less than 15 mΩ (initial value)

Environmental Characteristics
Normative reference	Product	IEC60947-5-1,EN60947-5-1,UL508,CSAC22-2N°14
Normative reference	Components	IEC60204-1,EN60204-1
Ambient temperature	Operating	-10°C to 80°C
Ambient temperature	Storage	-40°C to 80°C
Vibration resistance	Comply with IEC60068-2-6	10-55Hz complex amplitude 1.5mm,misoperation with 1 ms (in state of FP,TTP)
Shock resistance	Comply with IEC60068-2-27	Maximum 300m/s²,misoperation within 1 ms (in state of FP,TTP)
Degress of protection		IP54
Mechanical life		10,000,000 times
Operation speed		0.01 mm to 1 m/sec (lock plug type)
