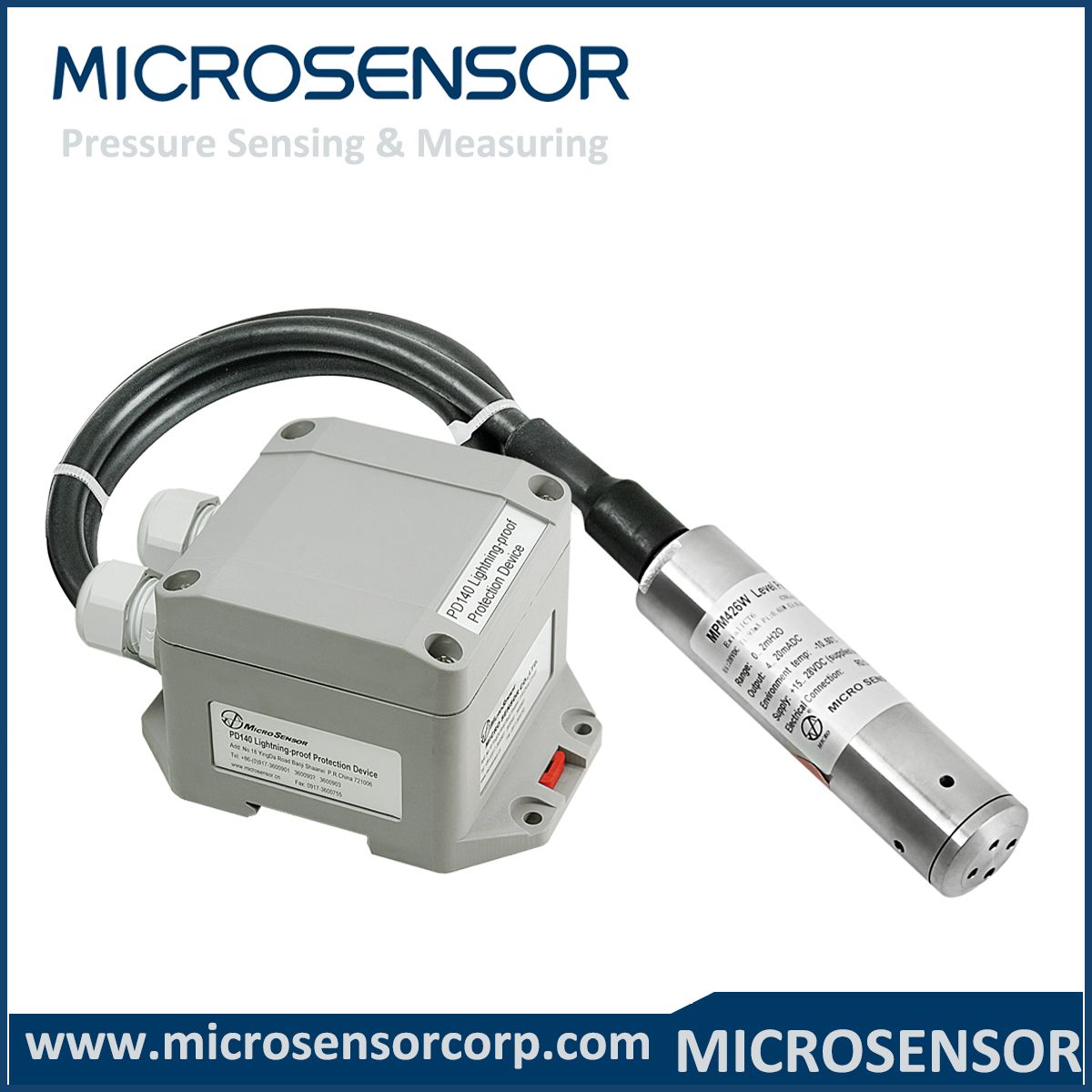

IP68 Submersible Level Transmitter (MPM426W)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
MPM426W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measurement Range: |
0~1...200m |
| Overpressure: |
1.5 Times Fs |
| Accuracy: |
0.25%Fs(Typ) |
| Output Signal: |
4~20madc |
| Housing: |
Stainless Steel |
| Storage Temp.: |
-40~100c |
| Protection: |
IP68 |
| Operation Temp: |
-10~80c |
| Certificate: |
CE |
| Wiring: |
2-Wire |
| Accuracy Grade: |
0.25%Fs(Typ) |
Product Description
IP 68 Submersible Level Transmitter MPM426WFeatures:
1.IP68;
2.Submersible;
3.Water-proof connecting box;
4.Removable top cap;
5.2-Wire;
Certificates:
1.CE;
2.Exia IICT6;
3.Ship-use;
4.ISO
Applications:
1.Petroleum;
2.Chemical industry;
3.Power Station;
4.City water;
5.Drainage and hydrology
Options:
1.4~20MADC output signal;
2. Aluminum connection box with display;
3. Fixed flange;
4. Intrinsic safe version
Description:
MPM426W IP68 Submersible Level Transmitter can achieve to measure liquid depth precisely with its stainless steel housing and compact size. It also can be widely used for water and level measure in petroleum, chemical industry, power station, city water supply, drainage and hydrology, etc.
Specifications:| Range | MPM426W | 1 2 5 10 20 50 100 200mH2O |
| MPM436W | 0.5 1 2mH2O |
| Overpressure | 1.5 times FS (MPM436W: 10 times FS) |
| Accuracy | MPM426W | + 0.25%FS(typ. ) + 0.5%FS(max. ) |
| MPM436W | + 0.5%FS (min. ) + 1.0%FS(max. ) |
| Stability error | MPM426W | + 0.1%FS(typ. ) + 0.2%FS(max. ) range> 20mH2O |
| + 10mmH2O(typ. ) + 20mmH2O(max. ) range≤ 20mH2O |
| MPM436W | + 5mmH2O(typ. ) |
| Temp. drift | MPM426W | | Zero drift, %FS/º C | Sensitivity drift, %FS/º C |
| Range> 10mH2O | 0.005(typ. ) | 0.01(max. ) | 0.02(max. ) |
| Range≤ 10mH2O | 0.01(typ. ) | 0.02(max. ) | 0.02(max. ) |
| Range≤ 5mH2O | 0.015(typ. ) | 0.03(max. ) | 0.02(max. ) |
| Range≤ 2mH2O | 0.025(typ. ) | 0.05(max. ) | 0.02(max. ) |
| | |
| |
| Transmitting © | 2-wire | 3-wire | 3-wire |
| Power supply | 15~30VDC ( Intrinsic safe version is supplied through safe barrier) | 15~28VDC | 15~28VDC |
| Output signal | 4~20mADC | 0~10/20mADC | 0/1~5/10VDC |
| Load (Ω ) | < (U-15)/0.02A* | < (U-15)/0.02A | > 5k |
| Material contacting with media | Housing: SS lCr18Ni9Ti | Seal parts: Viton |
| Rubber casing: NBR | Cable: Φ 7.5mm PVC/Polyurethane cable with vented tube |
| Diaphragm: SS 316L(MPM426W); 96% alumina ceramic(MPM436W) |
| Operation temp. | MPM426W | -10º C ~80º C; Intrinsic safe version: -10º C ~60º C |
| | |
| Storage temp. | -40º C ~100º C (MPM426W) |
| Protection | IP68 (sensor part); IP65 (connection box) |
| Ex-proof class | ExiaIICT6 |
© MPM436W only can be 2-wire transmitting; power supply 12~30VDC, load< (U-12)/0.02A-Rwire(kΩ ); U is power supply valrage, R wire is wire resistance.
|

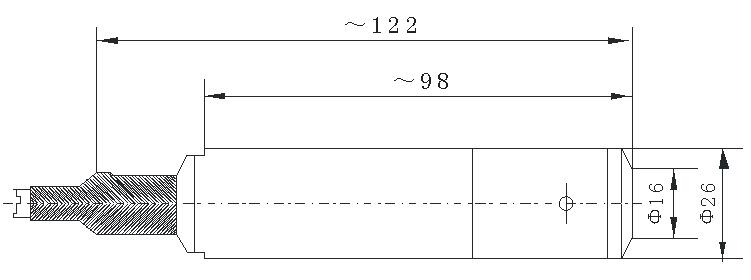

Outline Construction:

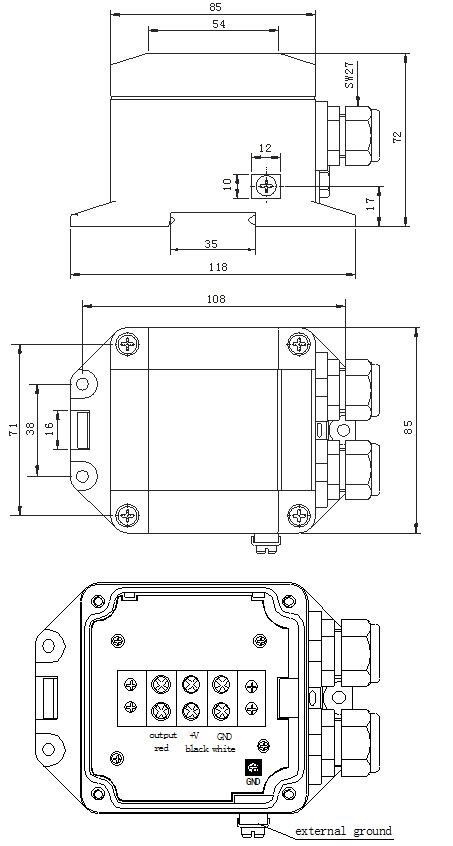

Connection box outline and dimention and Terminal electric connection
Order guide:| MPM426W/436W | Submersible Level Transmitter |
| | | Range (mH2O) | [0~XmH2O]L L: cable length; suggested L-X=(1~2)m |
| | | | code | Output signal |
| E | 4~20mADC |
| F | 1~5VDC |
| J | 0~5VDC |
| Q | 0~10mADC |
| U | 0~20mADC |
| V | 0~10VDC |
| | | | | Code | Construction material |
| | Diaphragm | Pressure port | Housing | Only for MPM426W |
| | 22 | SS 316L | SS | SS |
| | 24 | SS 316L | SS 316L | SS 316L |
| | 25 | Tantalum | SS | SS |
| | | | | Code | Others |
| | M1 | 0~100% hand pointer indicator |
| | Ya | Aluminum connection box with display |
| | Yb | Aluminum connection box without display |
| | Yc | MS200 water-proof connection box(default) |
| | Yd | PD140 lightening-proof protection device |
| | i | Intrinsic safe version ExiaIICT6 |
| | C1 | M20×1.5 male, face type seal | Only for MPM426W |
| | C3 | G1/2 male |
| | C5 | M20×1.5 male, waterline seal |
| | T | Ship-use |
| | F1 | Fixed flange |
| | | | | | | | | |
| MPM426W [0~3mH2O]5 E 22 YiC1 the whole spec |
