Isolating Switch
| Price: |
US $ 80-100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
HH15A (QA) Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Insulation Voltage: |
660 |
| Type: |
Low-voltage |
| Structure: |
Double-column Disconnector |
| Installation: |
Indoor High-voltage |
| Operation: |
Manual |
| Grounding: |
Single Ground |
| Series: |
Single-Stage |
| Run: |
Turn the Horizontal |
| Switching Mode: |
Double-Throw Type |
| Certification: |
ISO |
Product Description
Scope of Application

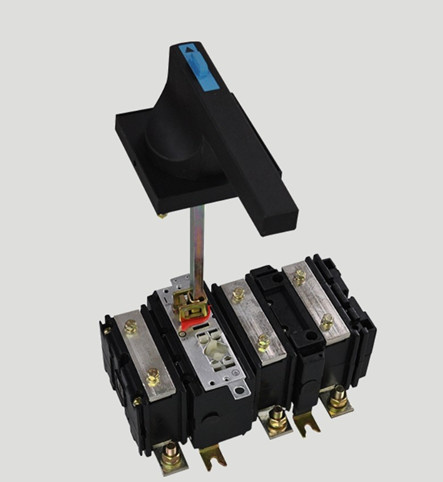

HH1SA(QA) series isolating switch is made up of short cooper platoon directly connect in series of two sets of contacts, which has high breaking capacity(AC-22B). It is mainly suitable in AC 50Hz rated working voltage 380V, rated insulation voltage 660V, rated working current up to 1000A. It is mainly used for power circuit not frequent making and breaking in the low-voltage complete power distribution equipment. It has isolation function in the off-state. Switch structure is designed into front rotary operating type mainly for drawer-type switchgear, distribution box and other control panel.
Standard:
GB 14048.3-2008, EEC 60947-3: 2005
Note:
This products standard is 3R 4P, if you need 2P, 3N, please contact with us
| Main Technical Parameters | | | | | | | |
| | | | | | | | |
| Model | HH15A-125 | HH15A-160 | HH15A-200 | HH15A-400 | HH15A-630 | HH15A-1000 |
| Number of Poles | 2,3,4 | 2,3,3N,4 |
| Rated Insulation Voltage | 660 |
|
| Rated working voltage 400V | 380 |
| Resistive Current | 125 | 160 | 200 | 400 | 630 | 1000 |
| Rated Working Current | 380V,AC-228 | 125 | 160 | 200 | 400 | 630 | 1000 |
| Rated Short-circuit Making Capacity (Peak) | 20 | 5.9 | 10.7 | 24 |
| Rated Short-circuit Withstand Voltage (RMS) | 4 | 12 | 15 |
| Mechanical Life (times) | 1400 | 800 | 500 |
| Electrical Life (times) | 200 | 150 |
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).
The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:
Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
Power equipment application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier
