Iteq Material Fr4 Multilayer PCB with Immersion Gold Board
| Price: |
US $ 1.12/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1305R3.8 |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Green |
| Board Thick: |
1.6mm |
| Legend Color: |
White |
| Outer Copper Foil: |
37.6 Um(1 Oz) |
| Inner Copper Foil: |
35 Um(1 Oz) |
| Min Line Width (Mil): |
9.99 Mil |
| Min Line Spacing (Mil): |
9.51 Mil |
| Warp-Twist: |
0.35% |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

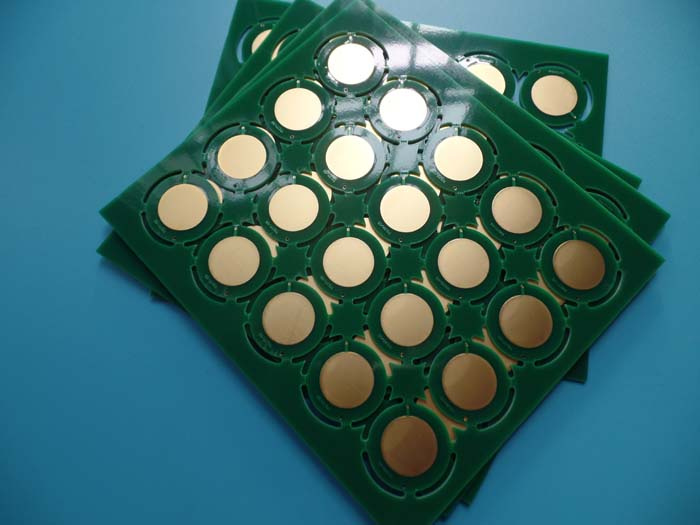

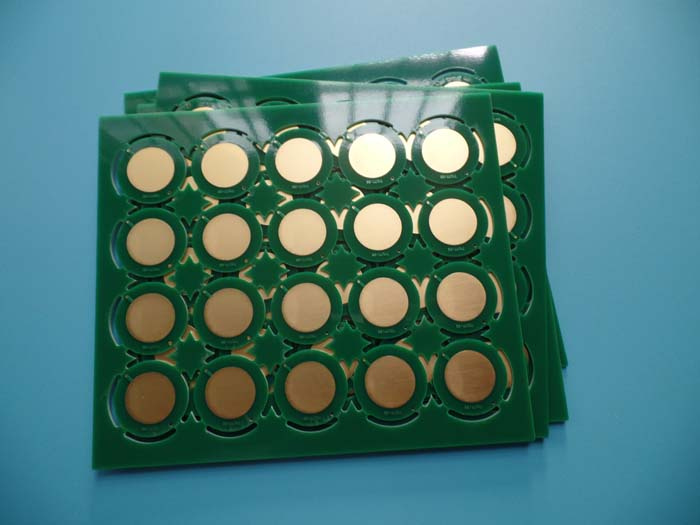

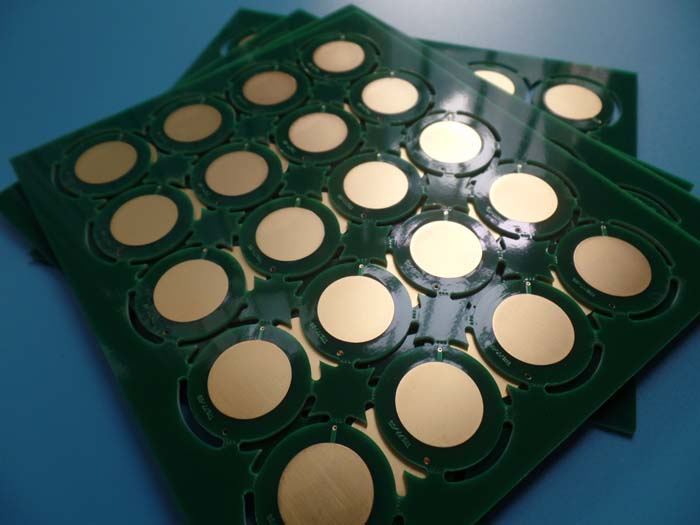

Iteq Material FR4 Multilayer PCB 1.6mm thick 1oz copper thick with Immersion Gold board
Commodity Introduction
This is a type of FR-4 PCB for the application of CODEC. It's a 6 layer board at 1.6mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| Item | Requirement | Result |
| Laminate | Type | FR-4 TG175 | FR-4 TG175 |
| Supplier | ITEQ | ITEQ |
| Board thickness | 1.60±10% mm | 1.61mm |
| Outer copper foil | >=35um | 37.6um |
| Inner copper foil | 35um | 35um |
| Warp-twist | <= 1.0% | 0.35% |
| Legend | Type | KSM-388 | KSM-388 |
| Color | White | White |
| Location | CS & SS | CS & SS |
| Marking | Co.logo | YES | OK |
| UL.logo | YES | OK |
| Date code | WWYY | 03 17 |
| Marking form | Legend | Legend |
| Location | SS | SS |
| Min line width (mil) | 10 | 9.99 |
| Min line spacing (mil) | 9.5 | 9.51 |
| Min ring width (mil) | NA | NA |
| Solder Mask | Type | KSM-S6819 | KSM-S6819 |
| Color | Green | Green |
| Thickness | >=10 um | 16.8um |
| Pencil Test | 4H | OK |
| SOLVENT TEST | NO ATTACK | OK |
| TAPE TEST | NO PEEL OFF | OK |
| Surface Treament | Immersion Gold | OK |
| Special Treament | Silk screen | / | / |
| Location | / | / |
| Forming | / | / |
| Normal Testing | Electrical test | 100% PCB passed | OK |
| Visual inspection | IPC-A-600H&IPC-6012B | OK |
| Solderability Test | 245ºC 5S 1 Cycle | OK |
