Japanese Locking Socket 080204

Name: Japanese Locking Socket 080204
Brand: all-electronics-online.com
SKU: 719004102
Availability: InStock
Rating: 4.3 (76 reviews)

Price:	US $ 0.1-1/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	080204
Port:	Single Port
Certification:	RoHS
Color:	Black
Customized:	Customized
Condition:	New
Material:	H161

Product Description

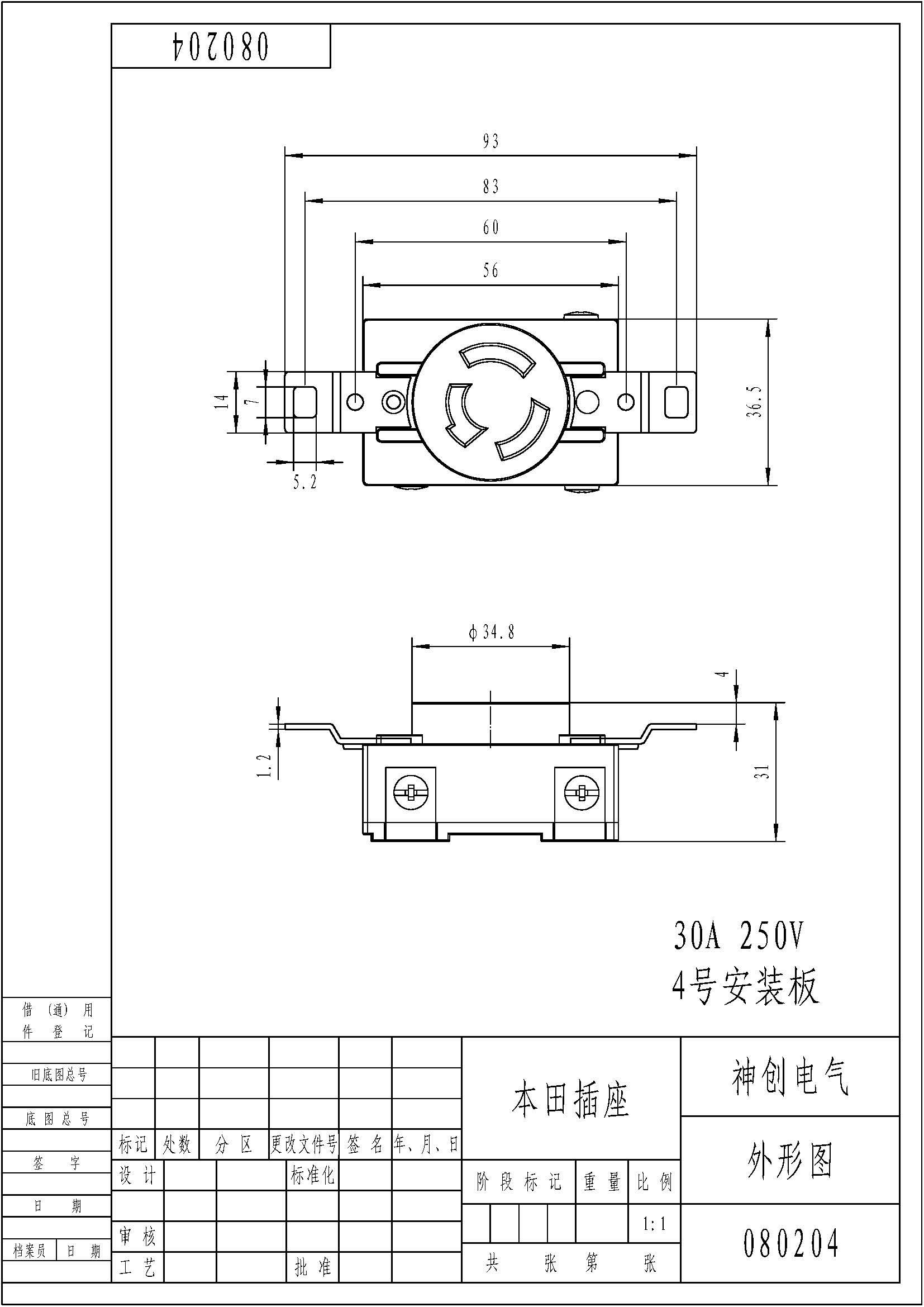

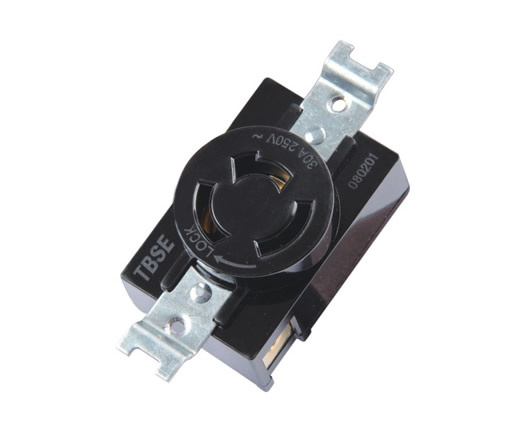

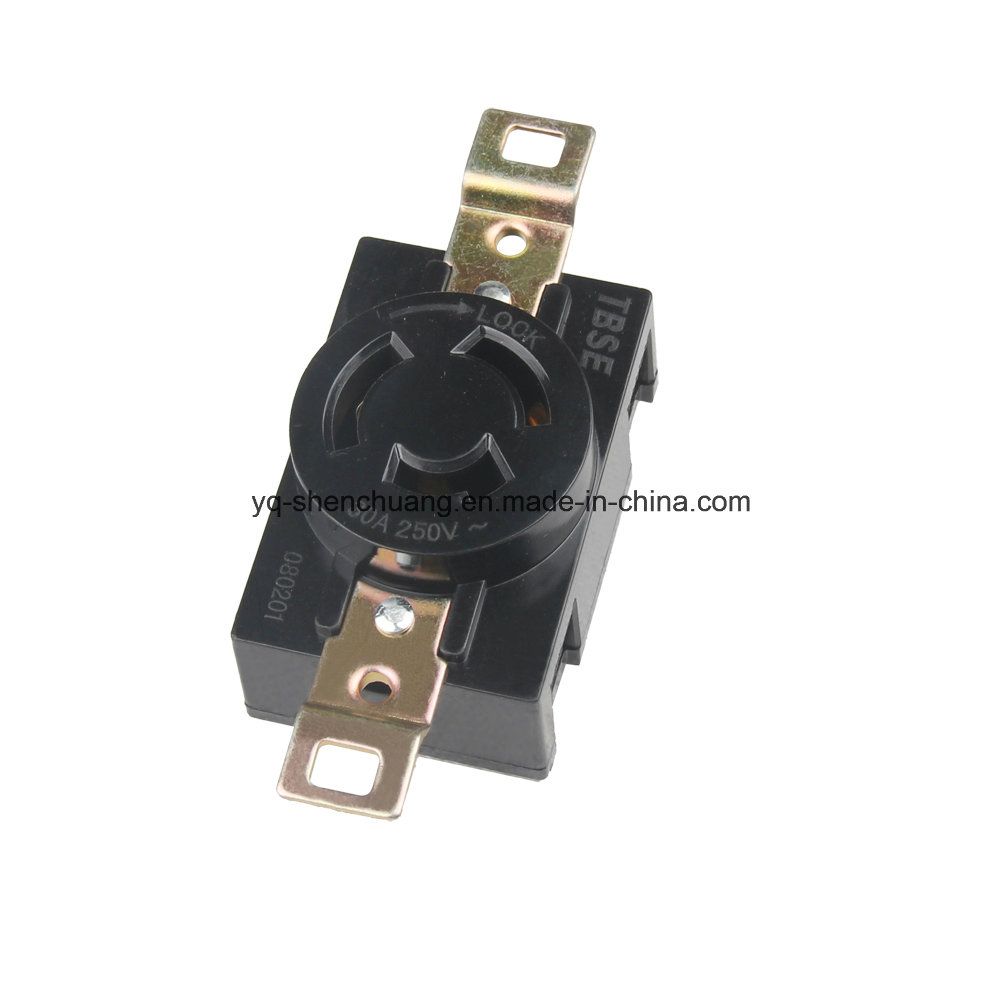

Product Name Japanese locking socket
Product Model 080204
Using standard
Rated Current 30A
Rated voltage 250V
Interface mode 2P+E
Insulation Resistance ≥5MΩ
Electrical strength AC 2000V 50HZ
Protection class IP20
The main material H161
Color Standard color: black; or according to customer requirements
Adaptation Model 100201

Application
They are widely used in Ironmaking and Steelmaking,Generator industry, Petroleum Chemical Industry, Electricity, Electronics, railway, Construction Site, Airports, mine, post-mining land, water treatment plant and port, Pier,market, hotel.

Features
This product is very durable, long-lasting life, superior stability, belonging to the patented design
Testing and Quality Control "Our product have pass lots type of test, whatever in TEMPERATURE-RISE TEST, CTI/PTI TEST, GLOW WIRE TEST, INSPERTION AND EXTRACTION FORCE TEST, SAND AND UST TEST and the other test, our product performance are over the standards and other brands' product

Certification RoHs

Shenchuang Electrical is an electrical company of invention, production and integration. We concentrate on manufacturing solar panel fairy lights, solar panel lamps and electric starter lock switch, high-current switching, American NEMA socket, plug series, German socket, , plug series, South Africa socket, plug series etc...

Shenchuang Electrical has been dedicating itself to the research and development since its inception. It has strong technical strength and complete tesing equipment. Many products have passed international safety certification organizations such as the famous U. S. "UL", Canada "cUL", German "VDE" "TUV", Australia"SAA" and the ISO90001 quality system certification. It is also widely used in the generator industry, machine tool equipments, Electric vehicle charging piles, factory production lines, construction sites, airport and docks etc. With reasonable price, superior quality and excellent services won the praise and trust of new and old customers. The products have exported to Europe, America and Southeast Asia and other regions. We also support production to Honda, YAMAHA, Generac, Cunmmins, TTI, CPI, BS, ETQ

And other multinational companies. Shenchuang Electrical has become a leader of Chinese generators supporting industry!

Our company adhere to the guidelines of "quality for survival, technology for development. ". We believe that we can achieve new heights with sincerity, ethics technology, creation, mangement.
