Jc-C01 Ceramic Piezoresistive Pressure Sensor, Low Cost Sensor, Temperature Sensor

Name: Jc-C01 Ceramic Piezoresistive Pressure Sensor, Low Cost Sensor, Temperature Sensor
Brand: all-electronics-online.com
SKU: 837289195
Availability: InStock
Rating: 4.4 (62 reviews)

Price:	US $ 25-30/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

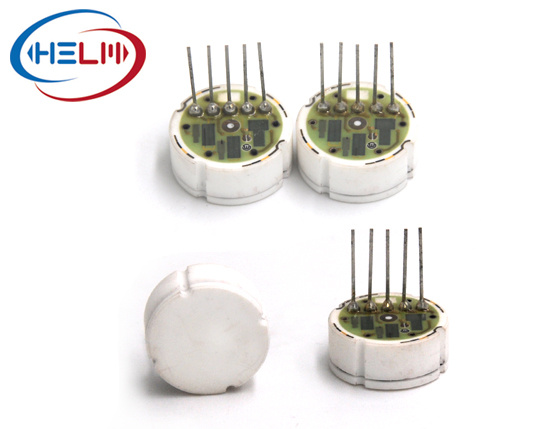

Prod Model:	JC-C01
Type:	Ceramic Pressure Sensor
Output Signal Type:	Mv
Measuring Medium:	Gas and Liquid

Product Description

Features and Application

Product Technology
* Excellent long-term stability can be directly integrated into the circuit
* Direct amplification circuit in the system
* Compact structure,easy to package
* Pressure,temperature sensor
* Editable integrated circuit (zero, linear, temperature drift digital compensation)
* Can be applied to high-volume, low-cost applications
* Flat film structure with excellent accuracy
* Low power: rated current<3ma
* Anti-impulsive and anti-vibration
* Fast response: power-on initial time 5ms, signal response time 2ms

Product Application
* Automotive applications
* Central air-conditioning refrigeration system
* Small appliances boiler
* Sewage pump
* Industrial ink printer
* Medical food industry
* Geographic application of ship equipment
* Starter bulldozer application
* Health flat film industry

Technical Parameters

Pressure range	0~1bar…0~600bar (Gauge) 0~0.1MPa….0~60MPa
Dimensions	φ18x6.35mm
Power Supply	30V DC,MAX excitation voltage
Bridge resistance	11KΩ±30%
Insulation resistance	>2kv
Full-scale output	4mV/V
Direct contact with liquid material	98%Al₂O₃
Operating temperature	-40~125ºC
Stored temperature	-50~150ºC
Temperature drift(zero+ sensitivity)	≤±0.03%FS/ºC(1bar~5bar); ≤±0.02%FS/ºC10bar - 600bar)
Accuracy(non-linear+ Hysteresis)	≤±0.3%FS
Repeatability	≤±0.1%FS
Zero drift	≤±0.2mV/V
Destroy pressure	2~3times of rated range

Ordering information

JC-C01 Ceramic pressure sensor
Model	Descrption
JC-C01	Dia.ϕ18mm
	Code	Power Supply
	C	Constant Currant
	V	Constant voltage
		Code	Pressure range
		1	0~0.1MPa
		2	0~0.2MPa
		5	0~0.5MPa
		10	0~1MPa
		20	0~2MPa
		50	0~5MPa
		100	0~10MPa
		200	0~20MPa
		XXX	customized
			Code	Pressure type
			G	Gauge

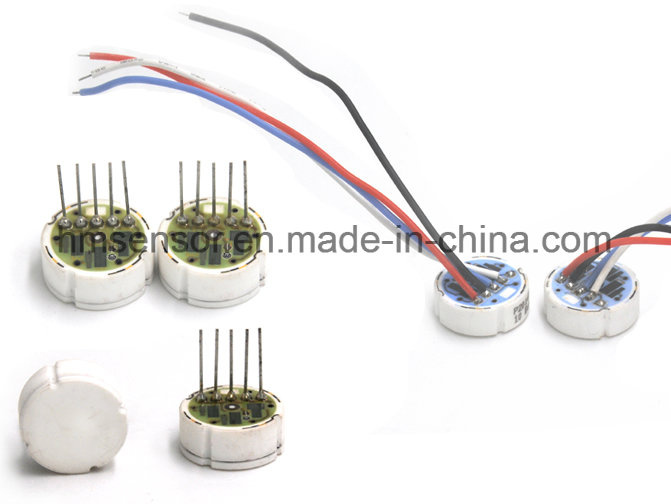

				Code	Electric
				F1	Connector Pin
				F2	Flat cable 90mm
				XX	customized
					Code	Additional function
					W1	G1/4
					W2	G1/2
					W3	M20X1.5
					X	Customized

Certifications

Packaging & Shipping

Established in 2006, Nanjing Helm Sci-tech Co., Ltd. (Nanjing Jiucheng technology Co., Ltd) is specialized in R&D and production of pressure measuring and controlling instruments. It has introduced the internationally advanced production technology, equipment and process as well as strict product quality standards and ODM cooperation concept to China, so as to manufacture and sell JC pressure / differential pressure / liquid level sensors and transducers in mainland China.

Our products have been fallen into six categories totaling hundreds of specifications in dozens of series. Main products include: High-accuracy Pressure Sensor, General-purpose Pressure transducer, Liquid Level transducer, Anti-lightning/Anti-corrosive Liquid Level transducer, Special Pressure transducer for Air Conditioner, Refrigeration and Compressor, Special Pressure transducer for Oilfield and Mining Well, Economical Pressure Sensor and transducer, Ceramic Capacitor Pressure transducer, Vacuum Pressure transducer, Sapphire Pressure transducer, Digital Pressure transducer, Micro Differential Pressure / Air Pressure transducer, Intelligent Digital Pressure Gauge, Intelligent Digital Pressure Switch, Anti-corrosive Pressure transducer, Anti-explosive Pressure transducer, Hygienically Flat-membrane Pressure transducer, High-temperature Pressure transducer, High-frequency Pressure transducer, Micro Pressure transducer, Integrated Temperature transducer, and Capacitance Pressure transducer.
