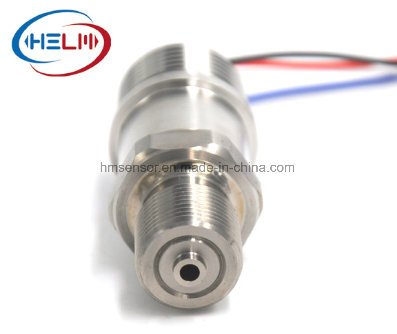

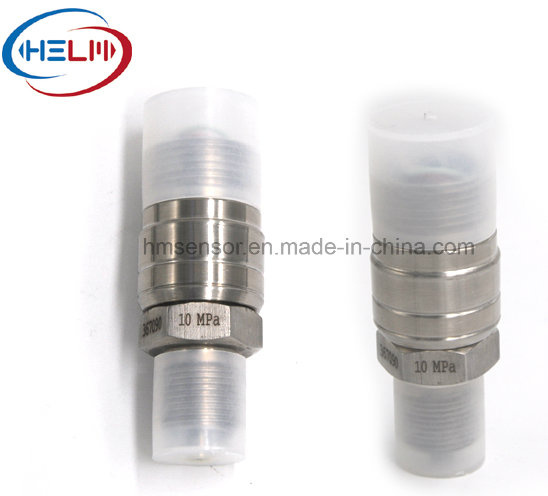

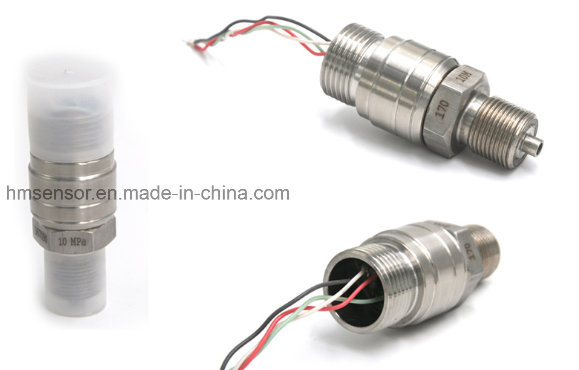

Jc-Ce01 Silicon Sapphire Core, Sapphire High-Temperature Pressure Sensor, High Pressure Sensor, High Accuracy Sensor
| Price: |
US $ 120-260/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |
| Prod Model: |
JC-CE01 |
| Thread Type: |
Customized |
| Measuring Medium: |
Gas Liquid Steam |
Product Description
Product overview Sapphire is composed of single crystal insulator elements without hysteresis, fatigue and creep. Sapphire has very good elasticity and insulation properties (up to 1000 ° C) and is insensitive to temperature changes, even at high temperatures Work characteristics; sapphire with radiation resistance; silicon - sapphire semiconductor sensitive components are no P-N drift,so can be applied to a variety of complex environments. The sensor consists of a double diaphragm: a titanium alloy pressure sensitive diaphragm and a titanium alloy diaphragm. Sapphire heteroepitaxial silicon strain sensitive circuit film, was welded on the titanium measuring diaphragm. The measured pressure is transmitted to the measuring diaphragm. Under pressure, the titanium measuring diaphragm has micro-deformation which will change the bridge output, the magnitude of the change is proportional to the measured pressure. The imbalance signal of bridge circuit is replaced by the voltage signal output.
Features and ApplicationProduct Features Product Application* Widely pressure range(0~25KPa~260MPa) * Navigation and shipbuilding industry * Widely temperature range(-65ºC~150ºC) * Aerospace * Pressure type:Gauge,absolute,negative * petroleum and chemical industry* High accuracy, high stability * Power station, nuclear power station* Light weight, cost-effective, strong radiation resistance * Industrial process pressure control, pressure calibratorProduct Specifications| Measuring medium | Gas and liquid compatible with titanium, stainless steel |
| Pressure range | 0~25KPa ….0~260MPa |
| Pressure type | MG-Gauge MA-Absolute MV-= Negative |
| Overload pressure | 2time(pressure range≤2.5MPa); 1.5times(pressure range≤60MPa);1.25times(≥100MPa) |
| Compensated temperature | -20~120ºC |
| Operating temperature | -65~150ºC |
| Thermal drift over the temperature range | ≤3% |
| Year drift | <0.1%FS |
| Nonlinear | <±0.1%FS |
| Hysteresis | <0.05%FS |
| Repeatability | <0.05%FS |
Overall accuracy
(non-linear,hysteresis,repeatability) | <±0.1%FS |
| Zero output | <±1mV |
| Full-scale output | 20~30mV;70~80mV |
| Input/output impedance | Rin≥5kΩ,Rount ≤8kΩ |
| Constant voltage | 0~5VDC, 5~10VDC, |
| Available voltage range | DC2-15V |
| Weight | 0.15kg |
| Process connection | M20X1.5(customized) |

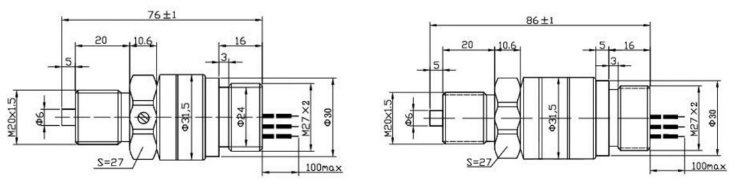

Dimensions(mm)
JC-CE01-MG-70 JC-CE01-MA-70 Connection method
Ordering information| JC-CE01 Silicon - sapphire core |
| Model | Description |
| JC-CE01 | Silicon - sapphire core |
| | Code | Power Supply |
| | C | Constant current |
| | V | Constant voltage |
| | | Code | Pressure range | Code | Pressure range |
| | | P05 | 0-25Kpa | P18 | 0-6MPa |
| | | P06 | 0-40Kpa | P19 | 0-10Mpa |
| | | P07 | 0-60Kpa | P20 | 0~16MPa |
| | | P08 | 0-100Kpa | P21 | 0~20MPa |
| | | P09 | 0-160Kpa | P22 | 0~25MPa |
| | | P10 | 0-250Kpa | P23 | 0~35MPa |
| | | P11 | 0-400Kpa | P24 | 0~40MPa |
| | | P12 | 0-600Kpa | P25 | 0~60MPa |
| | | P13 | 0-1MPa | P26 | 0~80MPa |
| | | P14 | 0-1.6Mpa | P27 | 0~100MPa |
| | | P15 | 0~2MPa | P28 | 0~160MPa |
| | | P16 | 0~2.5MPa | P29 | 0~200MPa |
| | | P17 | 0~4MPa | P30 | 0~260MPa |
| | | XX | Customized |
| | | | Code | Pressure type |
| | | | G | Gauge pressure |
| | | | A | Absolute pressure |
| | | | | Code | Wire connection |
| | | | | 1 | Pin |
| | | | | 2 | Flat cable 90mm |
| | | | | X | Customized |
