Jc-CT03 PC Board Mountable Pressure Sensor, Piezoresistive Silicon Pressure Sensor

Name: Jc-CT03 PC Board Mountable Pressure Sensor, Piezoresistive Silicon Pressure Sensor
Brand: all-electronics-online.com
SKU: 836842535
Availability: InStock
Rating: 4.7 (25 reviews)

Price:	US $ 18-30/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JC-CT03
Output Signal Type:	Mv

Product Description

Introduction
JC-CT03 1psi is a temperature compensated,piezoresistive silicon pressure sensor packaged in a dual-in-line configuration. It is intended for cost sensitive applications where excellent performance and long-term stability are required.
Integral temperature compensation is provided over arrange of 0-50°C using laser-trimmed resistors. An additional laser-trimmed resistor is included to normalize pressure sensitivity variations by programming the gain of an externaldifferential amplifier. This provides sensitivity interchangeability of ±1%.

Features&Application
Product Features Product application
* Dual-in-line package * Medical Instruments
* 1.0% Interchangeable Span(provided by gain set resistor) * Airspeed Measurement
* ±0.3% Non Linearity * Factory Automation
* Solid State Reliability * Leak Detection
* 0~50ºC temperature compensation * Process Control
* 0~100mV output: Gauge pressure & differential pressure

Technical Parameters
Excitation current 1.5mA, Environment temperature 25ºC

Parameters	0~1psi
Parameters	Min.	TYP	Max.	Notes
Full scale output Spam mV	65	100	150	1
Zero Pressure Output(offset) mV	-2.0		2
Non-Linearity %Span	-0.3	±0.2	0.3	2
Hysteresis %Span	-0.05	±0.01	0.05
Input/output Resistance KΩ	1.8		4.5
Temperature Error-Span %Span	-1.0	±0.05	1	3
Temperature Error-Zero %Span	-1.0	±0.05	1	3
Thermal Hysteresis %Span		±0.01		3
Supply Current mA		1.5	2
Response Time ms (10% to 90%)		0.1		4
Output Noise uV p-p		1
Long-term stability %Span/year		±0.2		5
Pressure Overload psi			10
Compensation temperature °C	0		50
Operating Temperature °C	-40		125
Storage temperature °C	-50		150
Weight g			3
Welding temperature	Max. 250°C(5s)
Media	Non-Corrosive Dry Gases Compatible with wetted materials

Note:
1. Output span of unamplified sensor.
2. Best fit straight line.
3. Temperature range: 0°C to 50°C with reference to 25°C.
4. For a zero-to-full scale pressure step change.
5. 1 year of Long-term stability under power-supply and normal temperature

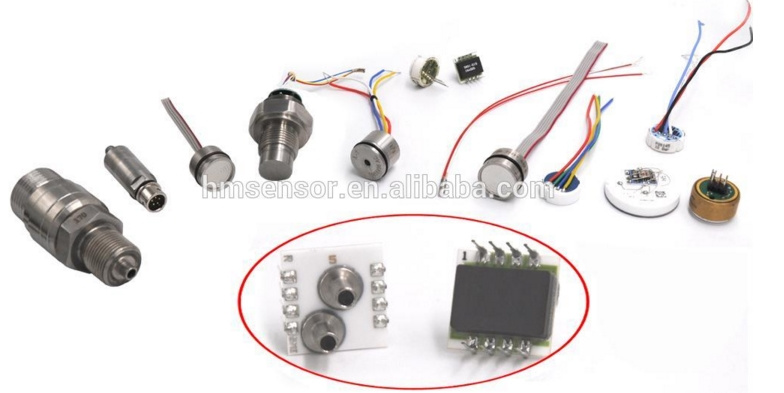

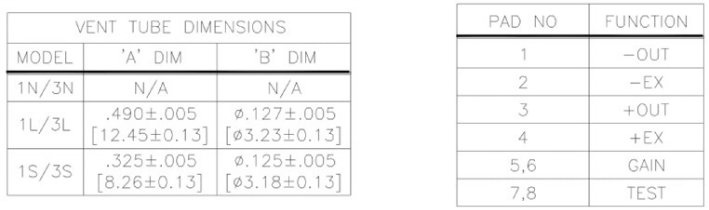

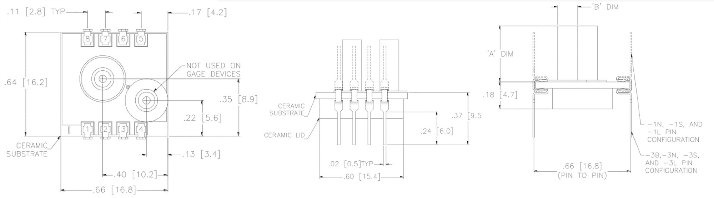

Dimensions
Tube version(mm)

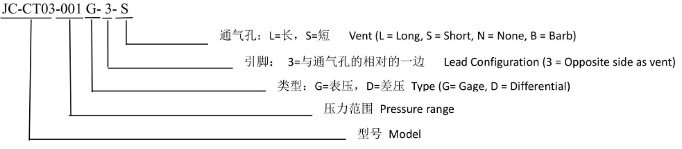

Ordering information

001=1KPa, 003=2KPa, 008=5KPa,015=10KPa, 030=20KPa

Certifications

Packaging & Shipping
