Jc-CZ01 (1) Silicon-Diffused Pressure Sensor, Oil Filled Sensor, Gas Air Pressure Sensor

Name: Jc-CZ01 (1) Silicon-Diffused Pressure Sensor, Oil Filled Sensor, Gas Air Pressure Sensor
Brand: all-electronics-online.com
SKU: 836842175
Availability: InStock
Rating: 4.8 (100 reviews)

Price:	US $ 14-20/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JC-CZ01(01)
Output Signal Type:	Mv
Wiring Type:	Custmiaed
Measuring Medium:	Gas and Liquid

Product Description

Description
  JC-CZ01 series are based on piezoresistive silicon pressure sensors packaged in a 316L stainless steel housing. The sensing package utilizes silicon oil to transfer pressure from the 316L diaphragm to the sensing element.
   It is designed for o-ring mounting for the applications where compatibility with corrosive media is required. Each sensor at the factory have carried out a strict zero and full temperature compensation to ensure the accuracy of measurement in complex environments

Features and Application
Features Application
* High accuracy, high stability * Automatic control system
* Compatible with corrosive media * Pressure instrument
* widely temperature compensation range * Pressure transmitter
* Standard mounting size,mV output * Level instruments

Specifications
Technical Parameters: Excitation current 1.5mA,  Environment temperature 25ºC

Parameter		MIN.	TYP	MAX.
Accuracy (%FS)non-linear	40Kpa		±0.10	±0.15
	100 Kpa ~7MPa		±0.10	±0.20
	10Mpa ~70MPa		±0.20	±0.30
Hysteresis			±0.05	±0.10
Repeatability			±0.05	±0.10
Zero output(mV)	0-40Kpa…7MPa	-2	±1	2
Zero output(mV)	0-10MPa…70MPa	-1	±0.5	1
Full scale output (FS)	0-40Kpa…7MPa	50	100	150
Full scale output (FS)	0-10MPa…70MPa	50	100	200
Operating temperature(ºC)		-40		125
Compensation temperature(ºC)	40Kpa	0		50
	100Kpa	0		70
	100Kpa-70MPa	-10		70
Zero temperature Error(%FS)	0-40Kpa…7MPa		±0.75	±1.0
Zero temperature Error(%FS)	0~10MPa…70MPa		±0.5	±0.75
Full-scale temperature Error(%FS)			±0.75	±1.0
Temperature Hysteresis(%FS)			0.1
Zero long-term stability(±%FS/year)			0.1
Full-scale long-term stability(±%FS/year)			0.1
Supply Current(mA)		0.5	1.5	2
Input resistance (kΩ)	0-40Kpa…7MPa	2	2.5	3
Input resistance (kΩ)	0-10MPa…70MPa	3	4.5	6
Output resistance (kΩ)	0-40Kpa…7MPa	2.5	3	3.7
Output resistance (kΩ)	0-10MPa…70MPa	3.5	5	6.5
Output load resistance(MΩ)		5
Insulation resistance(MΩ/50V)	0-40Kpa…7MPa	50
Insulation resistance(MΩ/50V)	0-10MPa…70MPa	100

Excitation voltage 10VDC, Environment temperature 25ºC, the following informations apply only to 0~40KPa…7MPa

Parameter		MIN.	TYP	MAX
Accuracy (%FS)non-linear	40Kpa		±0.20	±0.30
Accuracy (%FS)non-linear	>40Kpa		±0.10	±0.20
Hysteresis			±0.05	±0.10
Repeatability			±0.05	±0.10
Zero output(FS)mv		-2	±1	2
Full-scale output(FS)mv		98	100±1	102
Operating temperature(ºC)		-40		125
Compensation temperature(ºC)	40Kpa	0		50
	100Kpa	0		70
	>100Kpa	-10		70
Zero temperature Error(%FS)			±0.75	±1.0
Full-scale temperature Error(%FS)			±0.75	±1.0
Temperature Hysteresis (%FS)			0.1
Zero long-term stability(±%FS/year)			0.1
Full-scale long-term stability(±%FS/year)			0.1
Power supply(VDC)			10	14
Input resistance(kΩ)		6	8	10
Output resistance(kΩ)		2.5	3	3.7
Output load resistance(MΩ)		5
Insulation resistance (MΩ/50V)		50

Pressure range		0-40KPa…7MPa or 0-10MPa…70MPa
Pressure overload 0-40KPa…7MPa	≤4Mpa	2times
Pressure overload 0-40KPa…7MPa	7Mpa	1.5times
Pressure overload 0-10MPa…70MPa	≤40Mpa	2times
Pressure overload 0-10MPa…70MPa	70Mpa	100MPa
Measuring medium		Liquid, gas and steam compatible with 316L stainless steel

Dimensions(mm)

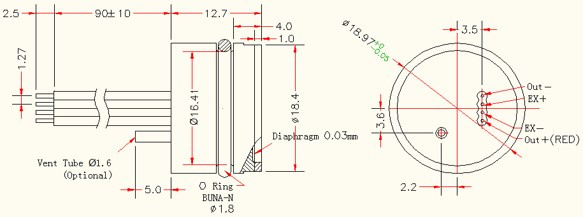

Ribbon cable

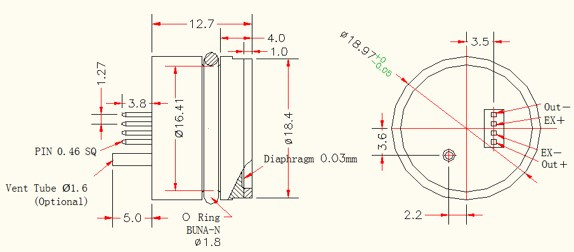

Connect Pin

Ordering Informaiton

JC-CZ01 Pressure Sensor
Model	Descrption
JC-CZ01	Dia.ϕ 19mm
	Code	Powder Supply
	C	Constant current
	V	Constant voltage
		Code	Pressure Range
		40K	0-40Kpa
		100K	0-100Kpa
		160K	0-160Kpa
		400K	0-400Kpa
		600K	0-600Kpa
		1M	0-1Mpa
		1.6M	0-1.6Mpa
		2.5M	0-2.5Mpa
		4M	0-4Mpa
		7M	0-7Mpa
		10M	0~10MPa
		20M	0~20MPa
		40M	0~40MPa
		70M	0~70MPa
		XX	Customized
			Code	Pressure Type
			G	Gauge pressure
			A	Absolute pressure
			SG	Seal Gauge pressure
				Code	Electric
				1	Connector pin
				2	Ribbon Cable 90mm
				X	customized

Remark

1. Best fit straight line.

2. Measured at vacuum for absolute (A), ambient for gage (G).

3. Maximum temperature range for product with standard cable is -20°C to +105°C.

4. Over the compensated temperature range with respect to 25°C.

5. Load resistance to reduce measurement errors due to output loading.

6. Between case and sensing element.
