| Prod Model: |
JC-CZ01 |
| Output Signal Type: |
Mv |
| Measuring Medium: |
Gas and Liquid |
Product Description

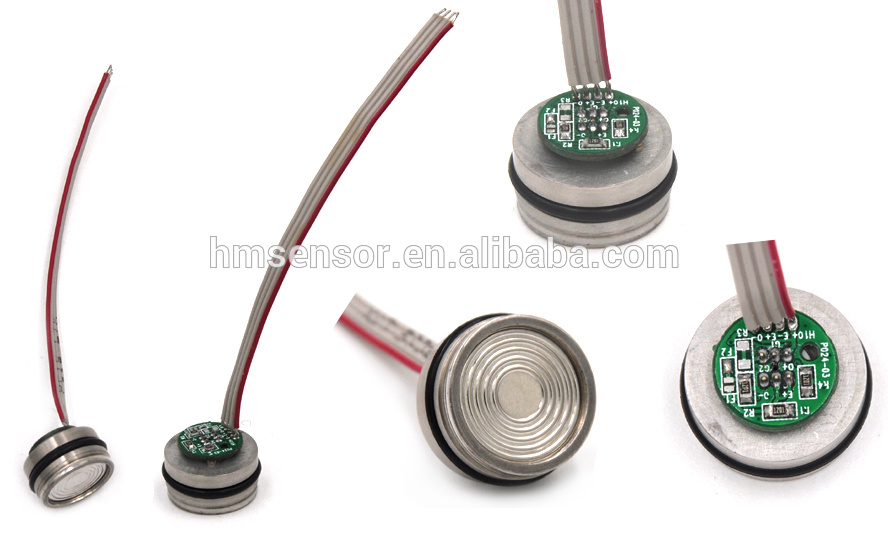

Introduction JC-CZ01 series are based on piezoresistive silicon pressure sensors packaged in a 316L stainless steel housing. The sensing package utilizes silicon oil to transfer pressure from the 316L diaphragm to the sensing element.
It is designed for o-ring mounting for the applications where compatibility with corrosive media is required. Each sensor at the factory have carried out a strict zero and full temperature compensation to ensure the accuracy of measurement in complex environments
Features and ApplicationFeatures Application
* High accuracy, high stability * Automatic control system
* Compatible with corrosive media * Pressure instrument
* widely temperature compensation range * Pressure transmitter
* Standard mounting size,mV output * Level instruments
Specifications
Technical Parameters: Excitation current 1.5mA, Environment temperature 25ºC
| Parameter | MIN. | TYP | MAX. |
| Accuracy (%FS)non-linear | 40Kpa | | ±0.10 | ±0.15 |
| 100 Kpa ~7MPa | | ±0.10 | ±0.20 |
| 10Mpa ~70MPa | | ±0.20 | ±0.30 |
| Hysteresis | | ±0.05 | ±0.10 |
| Repeatability | | ±0.05 | ±0.10 |
| Zero output(mV) | 0-40Kpa…7MPa | -2 | ±1 | 2 |
| 0-10MPa…70MPa | -1 | ±0.5 | 1 |
| Full scale output (FS) | 0-40Kpa…7MPa | 50 | 100 | 150 |
| 0-10MPa…70MPa | 50 | 100 | 200 |
| Operating temperature(ºC) | -40 | | 125 |
| Compensation temperature(ºC) | 40Kpa | 0 | | 50 |
| 100Kpa | 0 | | 70 |
| 100Kpa-70MPa | -10 | | 70 |
| Zero temperature Error(%FS) | 0-40Kpa…7MPa | | ±0.75 | ±1.0 |
| 0~10MPa…70MPa | | ±0.5 | ±0.75 |
| Full-scale temperature Error(%FS) | | ±0.75 | ±1.0 |
| Temperature Hysteresis(%FS) | | 0.1 | |
| Zero long-term stability(±%FS/year) | | 0.1 | |
| Full-scale long-term stability(±%FS/year) | | 0.1 | |
| Supply Current(mA) | 0.5 | 1.5 | 2 |
| Input resistance (kΩ) | 0-40Kpa…7MPa | 2 | 2.5 | 3 |
| 0-10MPa…70MPa | 3 | 4.5 | 6 |
| Output resistance (kΩ) | 0-40Kpa…7MPa | 2.5 | 3 | 3.7 |
| 0-10MPa…70MPa | 3.5 | 5 | 6.5 |
| Output load resistance(MΩ) | 5 | | |
| Insulation resistance(MΩ/50V) | 0-40Kpa…7MPa | 50 | | |
| 0-10MPa…70MPa | 100 | | |
Excitation voltage 10VDC, Environment temperature 25ºC, the following informations apply only to 0~40KPa…7MPa
| Parameter | MIN. | TYP | MAX |
| Accuracy (%FS)non-linear | 40Kpa | | ±0.20 | ±0.30 |
| >40Kpa | | ±0.10 | ±0.20 |
| Hysteresis | | ±0.05 | ±0.10 |
| Repeatability | | ±0.05 | ±0.10 |
| Zero output(FS)mv | -2 | ±1 | 2 |
| Full-scale output(FS)mv | 98 | 100±1 | 102 |
| Operating temperature(ºC) | -40 | | 125 |
| Compensation temperature(ºC) | 40Kpa | 0 | | 50 |
| 100Kpa | 0 | | 70 |
| >100Kpa | -10 | | 70 |
| Zero temperature Error(%FS) | | ±0.75 | ±1.0 |
| Full-scale temperature Error(%FS) | | ±0.75 | ±1.0 |
| Temperature Hysteresis (%FS) | | 0.1 | |
| Zero long-term stability(±%FS/year) | | 0.1 | |
| Full-scale long-term stability(±%FS/year) | | 0.1 | |
| Power supply(VDC) | | 10 | 14 |
| Input resistance(kΩ) | 6 | 8 | 10 |
| Output resistance(kΩ) | 2.5 | 3 | 3.7 |
| Output load resistance(MΩ) | 5 | | |
| Insulation resistance (MΩ/50V) | 50 | | |
| Pressure range | 0-40KPa…7MPa or 0-10MPa…70MPa |
| Pressure overload 0-40KPa…7MPa | ≤4Mpa | 2times |
| 7Mpa | 1.5times |
| Pressure overload 0-10MPa…70MPa | ≤40Mpa | 2times |
| 70Mpa | 100MPa |
| Measuring medium | Liquid, gas and steam compatible with 316L stainless steel |

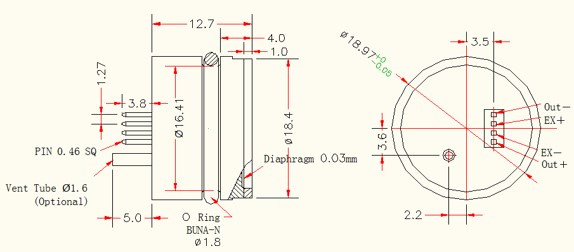

Dimensions
Cable
Pin
Ordering Informaiton
| JC-CZ01 Pressure Sensor |
| Model | Descrption |
| JC-CZ01 | Dia.ϕ 19mm |
| | Code | Powder Supply |
| | C | Constant current |
| | V | Constant voltage |
| | | Code | Pressure Range |
| | | 40K | 0-40Kpa |
| | | 100K | 0-100Kpa |
| | | 160K | 0-160Kpa |
| | | 400K | 0-400Kpa |
| | | 600K | 0-600Kpa |
| | | 1M | 0-1Mpa |
| | | 1.6M | 0-1.6Mpa |
| | | 2.5M | 0-2.5Mpa |
| | | 4M | 0-4Mpa |
| | | 7M | 0-7Mpa |
| | | 10M | 0~10MPa |
| | | 20M | 0~20MPa |
| | | 40M | 0~40MPa |
| | | 70M | 0~70MPa |
| | | XX | Customized |
| | | | Code | Pressure Type |
| | | | G | Gauge pressure |
| | | | A | Absolute pressure |
| | | | SG | Seal Gauge pressure |
| | | | | Code | Electric |
| | | | | 1 | Connector pin |
| | | | | 2 | Ribbon Cable 90mm |
| | | | | X | Customized |
Remark:
1. Best fit straight line.
2. Measured at vacuum for absolute (A), ambient for gage (G).
3. Maximum temperature range for product with standard cable is -20°C to +105°C.
4. Over the compensated temperature range with respect to 25°C.
5. Load resistance to reduce measurement errors due to output loading.
6. Between case and sensing element.
