| Prod Model: |
JC-CZ02 |
| Measuring Medium: |
The Gas or Liquid Compatible with 316 Stainless St |
| Output Signal Type: |
Mv |
| Thread Type: |
Customized |
| Certification: |
Ce ISO9001 |
| Wiring Type: |
Customized |
Product Description

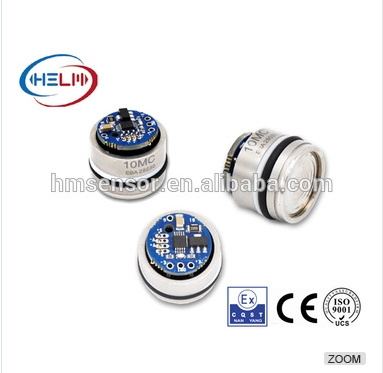

Product overview JC-CZ02 series are based on piezoresistive silicon pressure sensors packaged in a 316L stainless steel housing. The sensing package utilizes silicon oil to transfer pressure from the 316L diaphragm to the sensing element. This digital output pressure sensor supports I2C interface protocols, may come in a 3.3 or 5.0Vdc supply voltage.
It is designed for o-ring mounting for the applications where compatibility with corrosive media is required.A custom ASIC is used for temperature compensation, offset correction, and provides a digital output of 10~90% or 5~95%.
Features and Application Features Application* High accuracy, high stability * Automatic control system
* Pressure range:0-40Kpa…7Mpa * Pressure instrument
* widely temperature compensation range * Pressure transmitter
* Compatible with corrosive media * Freshwater,waste water survey
* Standard mounting size,mV output * Medical instruments
* I2C Interface protocols
Technical ParametersExcitation voltage 3.3VDC, Environment temperature 25
ºC| Parameter | Min. | Typical | Max. |
| Interface Type | I2C |
| Accuracy(%FS) | 40Kpa | | ±0.20 | ±0.30 |
| >40KPa | | ±0.10 | ±0.20 |
| Overall error | -1 | | 1 |
| Output(mV) | 10% -- 90% (A type) |
| Zeron Output(FS) | | 666 | |
| Full-scale output(FS) | | 399A | |
| Resolution-pressure(%FS) | 0.008 | | |
| Temperature accuracy(ºC) | -1.5 | | 1.5 |
| Resolution-Temperature(ºC) | -40 | | 125 |
| Compensation temperature(ºC) | 40Kpa | 0 | | 50 |
| >40KPa | 10 | | 70 |
| Power Supply(V) | 2.7 | 3.3 | 5.5 |
| Power current(mA) | | 3 | |
| Load resistance(KΩ) | 10 | | |
| Insulation resistance(MΩ/50V) | 50 | | |
| Response time | | 0.5 | |
| Measuring medium | The gas or liquid compatible with 316 stainless steel |
| Over pressure | 4MPa | 2x | | |
| 7MPa | 1.5x | | |
Ordering Guide| JC-CZ02 Pressure sensor |
| Model | Descrption |
| JC-CZ02 | Dia. Φ19mm |
| | Code | Power supply |
| | V | Current voltage |
| | Output | I2C |
| | | Code | Pressure range |
| | | 40K | 0-40Kpa |
| | | 100K | 0-100Kpa |
| | | 160K | 0-160Kpa |
| | | 400K | 0-400Kpa |
| | | 600K | 0-600Kpa |
| | | 1M | 0-1Mpa |
| | | 1.6M | 0-1.6Mpa |
| | | 2.5M | 0-2.5Mpa |
| | | 4M | 0-4Mpa |
| | | 7Mpa | 0-7Mpa |
| | | XX | customized |
| | | | Code | Pressure type |
| | | | G | Gauge pressure |
| | | | A | Absolute pressure |
| | | | SG | Seal gauge pressure |
| | | | | Code | Electric |
| | | | | 1 | Connector pin |
| | | | | 2 | Ribbon Cable90mm |
| | | | | X | customized |
Tips for Type Selection:1. The medium measured shall be compatible with the material contacting with the product.
2. As an additional function code for type selection, the code "E" for intrinsically safe explosion-proof type Ex ia II CT5 denotes that power source must be supplied via safety barrier.
3. For other special requirements, please discuss with us and clearly indicate them in the order. Certifications
