Jc-CZ04 Diffused Silicon Pressure Sensor, Cheap Gas Sensor, 0~2.5MPa Air Pressure Sensor

Name: Jc-CZ04 Diffused Silicon Pressure Sensor, Cheap Gas Sensor, 0~2.5MPa Air Pressure Sensor
Brand: all-electronics-online.com
SKU: 836842575
Availability: InStock
Rating: 4.9 (87 reviews)

Price:	US $ 10-15/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JC-CZ04
Output Signal Type:	Mv

Product Description

Product overview
JC-CZ04 series are based on piezoresistive silicon pressure sensors packaged in a 316L stainless steel housing. The sensing package utilizes silicon oil to transfer pressure from the 316L diaphragm to the sensing element. Each sensor was strictly temperature compensated for both zero and span.

Features and Application
Features Application
* Measuring medium: no-corrosion, clean gas * Tire Gauge
* Simply structure, low cost OEM * Natural gas measurement
* Apply to 0-40KPa…2.5MPa * Pressure transmitter
* 0~70ºC temperature compensation * Air conditioning refrigerant
* Typical output:0~100Mv * Air compressor

Technical Parameters
Excitation voltage 10VDC, Environment temperature 25ºC

Parameter		Min.	Typical	Max.
Accuracy(%FS)
Non-linear	40Kpa		±0.20	±0.30
	≥100Kpa		±0.15	±0.30
Hysteresis			±0.05	±0.10
Repeatability			±0.05	±0.10
Zero Output(FS)		-2	±1	2
Full-scale output(FS)		50	100±1	150
Temperature characteristic
Operating temperature(ºC)		-40		125
Compensation temperature(ºC)		0		70
Zero temperature error (%FS)		-0.75	±0.5	0.75
Full-scale temperature error (%FS)		-0.75	±0.5	0.75
Temperature hysteresis(%FS)			0.1
Long-term stability(±%FS/year)
Zero			0.2
Full scale			0.2
Power supply(VDC)			10	14
Input resistance(kΩ)		6	8	10
Output resistance(kΩ)		2.5	3.0	3.7
Output load resistance( MΩ)		5
Pressure range		0-40Kpa…2.5Mpa
Pressure overload		2Xrated pressure or 3.5Mpa
Breaking pressure		3Xrated pressure or 4Mpa
Measuring medium		Clean gas compatible with ceramic, glass, silicone(range less than 1MPa)/epoxide-resin glue(range more than 1MPa)

Ordering Guide

JC-CZ04 Pressure Sensor
Code	Description
JC-CZ04	Dia ϕ 18mm
	Code	Power Supply
	V	Constant voltage
	xxx	Constant current
		Code	Pressure Range
		40K	0-40Kpa
		100K	0-100Kpa
		160K	0-160Kpa
		400K	0-400Kpa
		600K	0-600Kpa
		1M	0-1Mpa
		1.6M	0-1.6Mpa
		2.5M	0-2.5Mpa
		XX	customized
			Code	Pressure Type
			G	Gauge Pressure
			SG	Seal Gauge Pressure
				Code	Electric
				1	Connector Pin
				2	Ribbon cable 90mm
				X	customized

Tips for Type Selection: For other special requirements, please discuss with us and clearly indicate them in the order.

Certifications

Packaging & Shipping

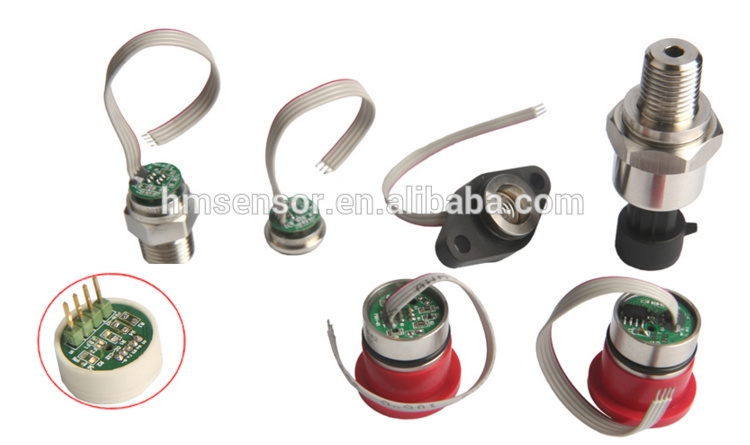

Established in 2006, Nanjing Helm Sci-tech Co., Ltd. (Nanjing Jiucheng technology Co., Ltd) is specialized in R&D and production of pressure measuring and controlling instruments. It has introduced the internationally advanced production technology, equipment and process as well as strict product quality standards and ODM cooperation concept to China, so as to manufacture and sell JC pressure / differential pressure / liquid level sensors and transducers in mainland China.

Our products have been fallen into six categories totaling hundreds of specifications in dozens of series. Main products include: High-accuracy Pressure Sensor, General-purpose Pressure transducer, Liquid Level transducer, Anti-lightning/Anti-corrosive Liquid Level transducer, Special Pressure transducer for Air Conditioner, Refrigeration and Compressor, Special Pressure transducer for Oilfield and Mining Well, Economical Pressure Sensor and transducer, Ceramic Capacitor Pressure transducer, Vacuum Pressure transducer, Sapphire Pressure transducer, Digital Pressure transducer, Micro Differential Pressure / Air Pressure transducer, Intelligent Digital Pressure Gauge, Intelligent Digital Pressure Switch, Anti-corrosive Pressure transducer, Anti-explosive Pressure transducer, Hygienically Flat-membrane Pressure transducer, High-temperature Pressure transducer, High-frequency Pressure transducer, Micro Pressure transducer, Integrated Temperature transducer, and Capacitance Pressure transducer.
