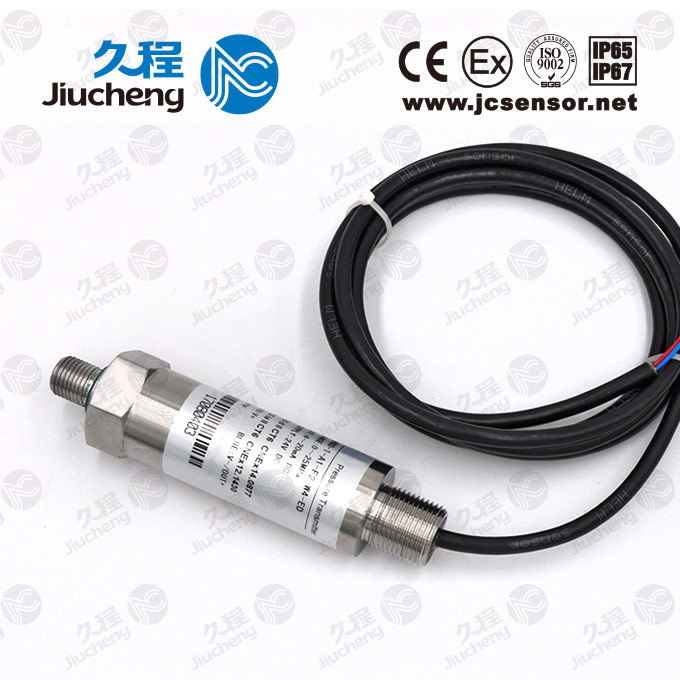

Jc660 (01) Anti-Explosion Pressure Sensor, Absolute Pressure Transmitter, Differential Pressure Transducer
| Price: |
US $ 40-350/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
JC660(01) |
| Thread Type: |
NPT G Customized |
| Measuring Medium: |
Gas Liquid Steam |
Product Description

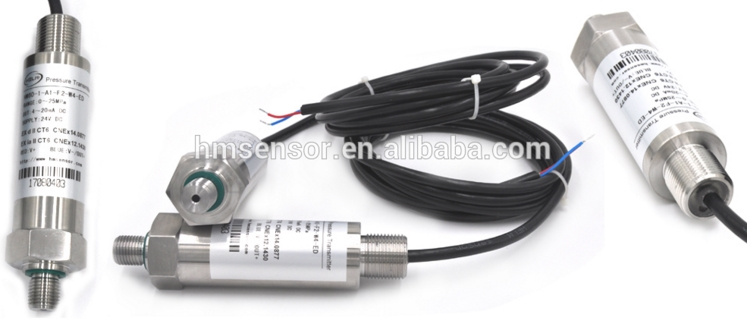

Product overview JC660 series of anti-explosion pressure transducer is specially designed for high-explosion dangerous site. It can provide stable and accurate measurement at an absolute pressure, gauge pressure and differential pressure of liquid or gas medium from -100KPa to 200MPa. It welds the existing multi -crystalline silicon film sensing element of HELM with the enclosure using welding technology and can be customized rapidly according to the regulations to meet the individualized needs of different users. Moreover, this product has maintained all the features of the original HELM pressure sensing chip. With built-in amplification circuit and diversified structural forms, it can be equipped with M 20 x 1.5 or G1 / 2 internal thread explosion-proof flexible tube connector.

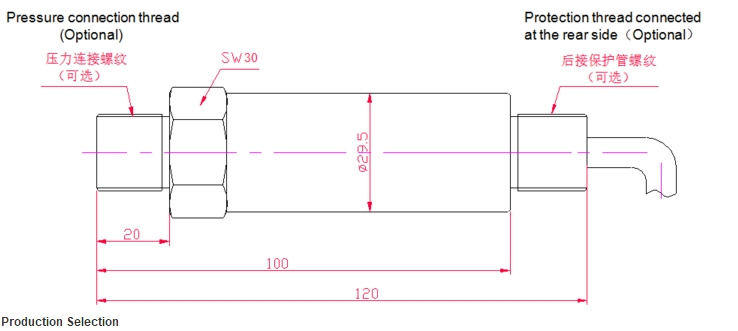

Product Features •Intrinsically safe and flameproof certification: Ex iaCT6, Ex dCT6•Measuring range: -100KPa~0~200Pa...100KPa...200MPa•Gauge pressure, absolute pressure and differential pressure are available•Adoption of explosion-proof genuine HELM multi - crystalline silicon film chip, with stable and reliable performance and long service life•Reverse polarity and over-voltage protection of power supply•Explosion - proof design, safe and reliable•Strong anti-interference and immunity to vibration and excellent long -term stabilityOutline Drawing
| JC660 | Anti-explosion Pressure Transducer |
| | Pressure type | Gauge pressure; absolute pressure (A); differential pressure (D) |
| | Range | (0~ X MPa) Measuring range |
| | | Code | Overall accuracy (linearity + repeatability + lagging) |
| | 1 | ±0.5%FS |
| | 2 | ±0.25%FS |
| | 3 | ±0.1%FS |
| | Code | Signal Output |
| | A1 | 4~20mA |
| | V1 | 1~5V DC |
| | V2 | 0~5V DC |
| | V3 | 0.5~4.5V DC |
| | Code | Additional functions |
| | F1 | M20x1.5 external thread |
| | F2 | G1/4 external thread |
| | F0 | Special |
| | W1 | Cable type (IP67, 2m) |
| | W2 | HSM socket type (IP65, DIN43650) |
| | W3 | Outline drawing (I) |
| | W4 | Outline drawing (II) |
| | W0 | Special |
| | L1 | Pointer scale (0 ~ 100%) display |
| | L2 | 4LCD display |
| | L3 | 4LED display |
| | P | Flush diaphragm |
| | E | Intrinsically safe Ex iaII CT5 |
| | D | Flameproof Ex dII CT6 |
| JC660 -1 -A1 -F1 -W3 -D Anti-explosion Pressure Transducer |
Tips of Selection1.The measured medium shall be compatible with the material contacting with the product.2.The code E, an additional function code for selection, namely, intrinsically safe explosion-proof Ex iaIICT6 must be power supplied via safety barrier.3.The code D, an additional functional code for selection, namely, flameproof Ex dIICT6 is preferably provided with explosion - proof flexible hose for the electrical power cable connected at the rear side.4. The options W1 and W2 are general structural encapsulation and only used for HM60 - E intrinsically safe explosion-proof pressure transducer.5. It is unnecessary to install safety barrier on HM60 - ED intrinsically safe flameproof pressure transducer during system use.6. Please contact us for other special requirements and clearly indicate them in the order.
Established in 2006, Nanjing Helm Sci-tech Co., Ltd. (Nanjing Jiucheng technology Co., Ltd) is specialized in R&D and production of pressure measuring and controlling instruments. It has introduced the internationally advanced production technology, equipment and process as well as strict product quality standards and ODM cooperation concept to China, so as to manufacture and sell JC pressure / differential pressure / liquid level sensors and transducers in mainland China.
Our products have been fallen into six categories totaling hundreds of specifications in dozens of series. Main products include: High-accuracy Pressure Sensor, General-purpose Pressure transducer, Liquid Level transducer, Anti-lightning/Anti-corrosive Liquid Level transducer, Special Pressure transducer for Air Conditioner, Refrigeration and Compressor, Special Pressure transducer for Oilfield and Mining Well, Economical Pressure Sensor and transducer, Ceramic Capacitor Pressure transducer, Vacuum Pressure transducer, Sapphire Pressure transducer, Digital Pressure transducer, Micro Differential Pressure / Air Pressure transducer, Intelligent Digital Pressure Gauge, Intelligent Digital Pressure Switch, Anti-corrosive Pressure transducer, Anti-explosive Pressure transducer, Hygienically Flat-membrane Pressure transducer, High-temperature Pressure transducer, High-frequency Pressure transducer, Micro Pressure transducer, Integrated Temperature transducer, and Capacitance Pressure transducer.
