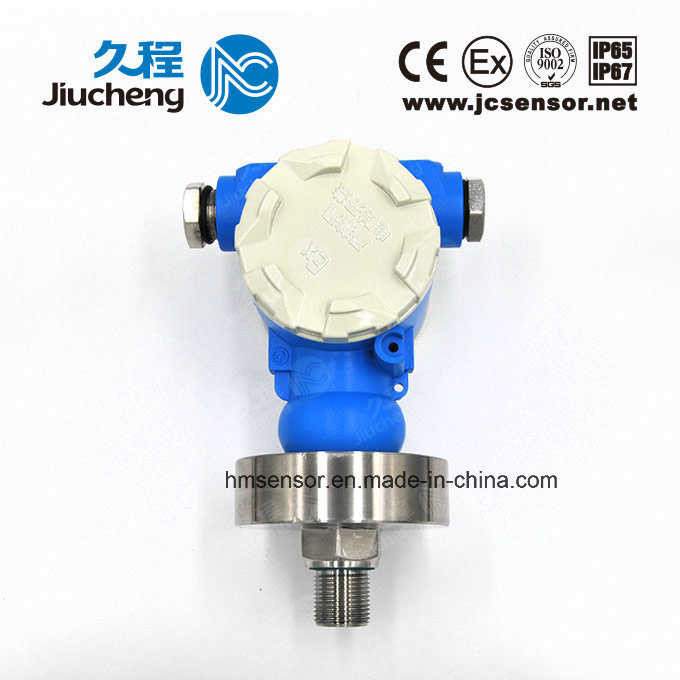

Jc660ca Thin Film Absolute Pressure Transmitter, Anti-Explosion Diaphragm Pressure Sensor

Name: Jc660ca Thin Film Absolute Pressure Transmitter, Anti-Explosion Diaphragm Pressure Sensor
Brand: all-electronics-online.com
SKU: 836145745
Availability: InStock
Rating: 4.7 (130 reviews)

Price:	US $ 40-300/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JC660CA
Measuring Medium:	Gas Liquid Steam

Product Description

Product overview
Featured by good performance, small size and flexible design, JC660 series anti-explosion pressure transducer has the advantages of a very high ratio of performance to cost and long service life compared with traditional explosion-proof transducers. It is widely used in oilfield, mining well, chemical, electric power, boiler, natural gas and other fields. With built-in amplification circuit and diversified structural forms, it can be equipped with M 20 x 1.5 or G1 / 2 internal thread explosion-proof flexible tube connector

Product Features
•Adoption of explosion-proof genuine multi - crystalline silicon film chip, with stable and reliable performance and long service life
•Reverse polarity and over-voltage protection of power supply
•Explosion - proof design, safe and reliable
•Strong anti-interference and immunity to vibration and excellent long -term stability

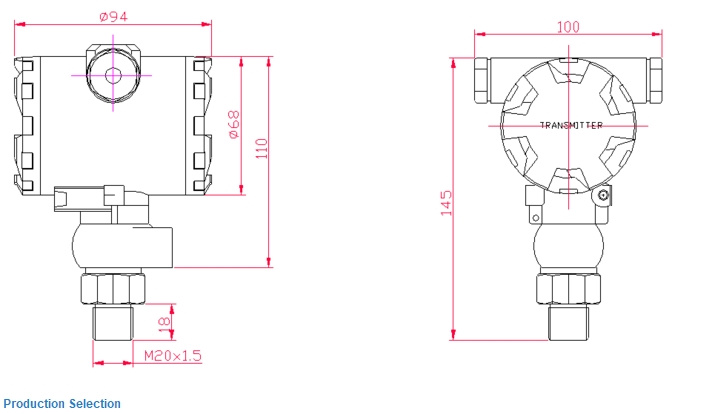

Outline Drawing

JC660	Anti-explosion Pressure Transducer
	Pressure type	Gauge pressure; absolute pressure (A); differential pressure (D)
		Range	(0~ X MPa) Measuring range
			Code	Overall accuracy (linearity + repeatability + lagging)
			1	±0.5%FS
			2	±0.25%FS
			3	±0.1%FS
				Code	Signal Output
				A1	4~20mA
				V1	1~5V DC
				V2	0~5V DC
				V3	0.5~4.5V DC
					Code	Additional functions
					F1	M20x1.5 external thread
					F2	G1/4 external thread
					F0	Special
					W1	Cable type (IP67, 2m)
					W2	HSM socket type (IP65, DIN43650)
					W3	Outline drawing (I)
					W4	Outline drawing (II)
					W0	Special
					L1	Pointer scale (0 ~ 100%) display
					L2	4LCD display
					L3	4LED display
					P	Flush diaphragm
					E	Intrinsically safe Ex iaII CT5
					D	Flameproof Ex dII CT6
JC660 -1 -A1 -F1 -W3 -D Anti-explosion Pressure Transducer
