| Prod Model: |
JCM1L |
| Rated Current: |
63A,100A,160A,250A,400A,630A,800A |
| Rated Voltage: |
230V, 400V |
| Rated Insulation Voltage: |
400,500,690V |
| Pole: |
2pole, 3pole, 4pole |
| Breaking: |
Low, Medium, High |
| Standard: |
IEC60947-2 |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Structure: |
ELCB |
| Certification: |
SGS |
| Operation: |
Manual |
| Installation: |
Fixed, Insert |
| Poles Number: |
2p/3p4p |
| Function: |
Earth Leakage Circuit Breaker |
Product Description

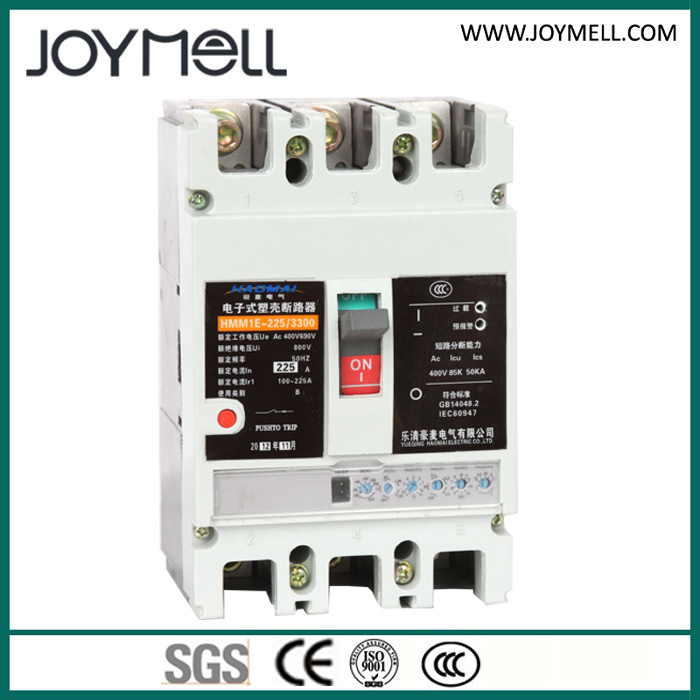

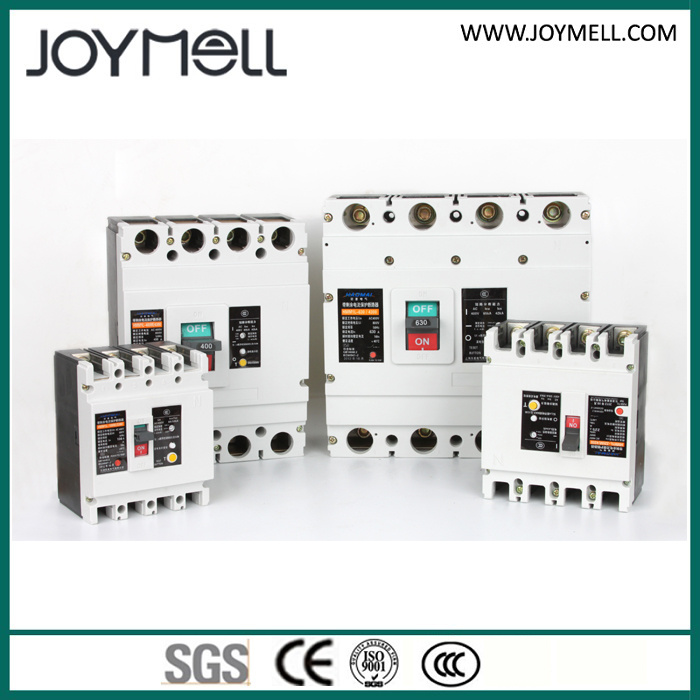

JCM1L Earth Leakage Circuit breaker 1A~800A (ELCB)
Application:JCM1L Series earth leakage circuit breaker is applicable for distribution network of AC50 Hz, rated voltage of 400V, and rated current of 800A, to provide indirect protection from electric shock, to prevent from fire caused by equipment insulation damage. The breaker also prevent power equipment from harm of overload, under-voltage and short circuit.

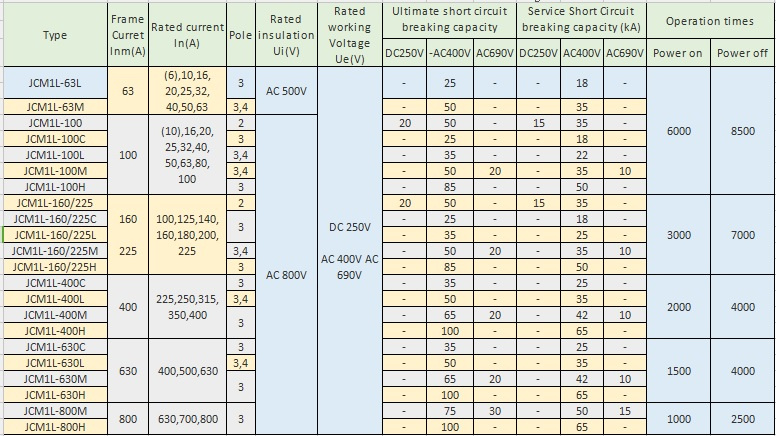

The product conforms to IEC60947-2 standards.Model optional:Working Conditions: 1. The ambient air temperature. -10 °C~+40 °C; 24h average does not exceed +35 °C
2. Altitude : Installation site altitude does not exceed 2000m
3. Relative humidity not over 95%, will impacted by humidity.
4. Pollution III grade, will impacted by salt-fog, oil mist.
5. Will impacted by Mildew
6. Max inclination ±22.5%

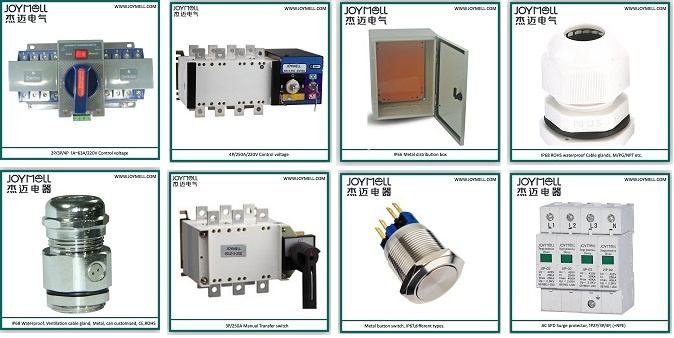

7. When normal vessel shake, earth-quake(4g) can work normallyPictures:Other our product series:| Manual transfer switch | 1A~1600A, 3P/4P. |
| Automatic Transfer switch | 1A~3200A, 2P/3P/4P. |
| Metal power distribution box | Metal box, size can color can be customized. |
| Plstic box | Different ways, competitive price, welcome to contact |
| Surge protector | B,C,D Class, AC, DC type you can choose. Different types and
discharge current you choose. |
| Power supply | Hot used in Gepenerator system, 120W 12/24V. And other types |
| Current transformer | Different size you can choose, quality guarantee,
hot used in Generator cabinets. |
| Push button | Metal or plastic, different types for power cabinet. |
