| Prod Model: |
JD1000NA/B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| I/P: |
300-1500nw:12VDC/24VDC |
| O/P: |
220V, 110V ±10 V |
| Capacity: |
300-1500W |
| Wave Form: |
Modified Sine Wave |
| Product Name: |
Jd1000na/B High Frequency Msw Power Inverter |
Product Description

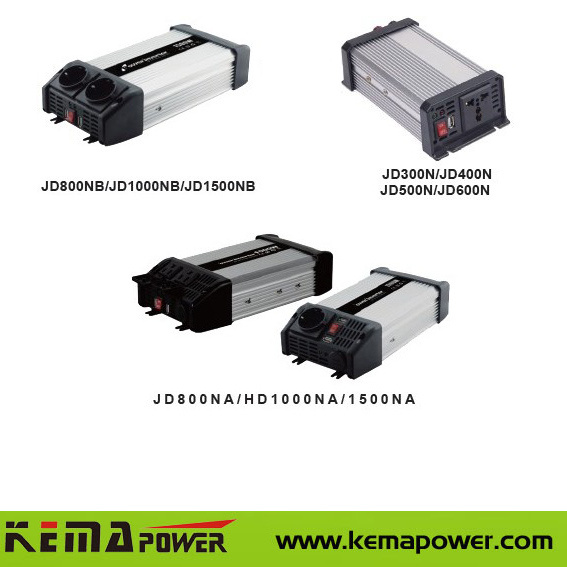

High Frequency MSW power inverter (JD1000NA/B)
* I/P:300-1500NW:12VDC/24VDC
* O/P:220V,110V ±10 V
* Capacity:300-1500W
* Wave Form:modified sine wave
* Bat.:External battery
* Stand by Function
* Special design for Off Grid Solar System inverter
Key Features1.High frequency DC-AC power inverter
2.Single phase modefied sine wave ouput
3.with USB port
4.Smaller and light
5.Modified sine wave
6.LED display and alarm
7.Two times surge power
8.Full range protection for the inverter and the battery.
Technical Specifications | Mode | JD300N | JD400N | JD500N | JD600N | JD800NA/B | JD1000NA/B | JD1500NA/B | | Continuous power (W) | 300 | 400 | 500 | 600 | 800 | 1000 | 2000 | | Surge capability (W) | 600 | 800 | 1000 | 1200 | 1600 | 2000 | 4000 | | DC input (VDC) | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 | | DC input range | 10.5V to 15.5V±0.3 or 21V to 31V±0.3 | | AC output | 220V,110V ±10 V | | Output frequency | 50/60±5 HZ | | Output waveform | Modified sine wave | | Efficiency | >85% | | Battery low alarm | 10.2-10.8V or 20.4-21.6V | | Over discharge protection | 10 ±0.5V or 20±0.5V shut off | | Resume voltage | 11.7V--12.8V or 23.4-25.6V auto restart | | Over voltage protection | 15V-16.5V, 30-33V shut off. | | Overload protection | Shut off while over 120% rated capacity | | With cooling fan | Yes | | USB | Yes | | DC conection | With cable | | Connection convertor | Yes | Yes | Yes | Yes | No | No | No | | Product package | Paper skin | | Running temperature | 20 to 40 degree | | High temperature protection | Yes | | Short circuit protection | Yes | | Reverse polarity protection | Yes | | Product size(mm) | 165*95*50 | 165*95*50 | 215*100*55 | 215*100*55 | 265*136*65 | 265*136*65 | 265*136*65 | | Carton size (mm) | 420*305*365 | 420*305*365 | 515*305*365 | 515*305*365 | 560*335*180 | 560*335*180 | 560*335*180 | | Carton weight (kg) | 17.5 | 18 | 22 | 23 | 11.5 | 11.5 | 13 | | PCS /CTN | 20 | 20 | 20 | 20 | 10 | 5 | 5 | | Remark | JD*NA with DC port of max 150W |
|
|
|
