| Prod Model: |
JLD830-200MW |
| Wavelength: |
830nm |
| Optical Output Power: |
200MW Cw |
| Can Type: |
To18-5.6mm |
| Light Color: |
Infrared |
| Threshold Current: |
35mA Typ. |
| Life Time: |
10000 Hours |
| Reverse Voltage: |
3V |
| Operating Current: |
250mA |
| Operating Voltage: |
1.5V |
| Operating Temperature: |
-20~+50 Degree |
Product Description
Features:
1. 200 mW kink-free power
2. Narrow spectral width
3. High efficiency
Laser Characteristics
| Parameter | Symbol | Min. | Typ. | Max. | Unit |
| CW output power,kink-free | Po | - | - | 200 | w |
| Center wavelength | λc | - | 830 | - | nm |
| Spectral width | Δλ | - | 3 | 5 | nm |
| Slope efficiency | ηD = P o/(Iop -Ith ) | 0.75 | 0.85 | - | mW/ mA |
| Conversion efficiency | η= P o /(Iop V op ) | - | 30 | - | % |
| Emitting dimensions | W x H | - | 3 x 1 | - | µm |
| Beam Divergence Parallel to the junction | θ// | - | 9 | - | degree |
| Beam Divergence Perpendicular to the junction | θ⊥ | - | 30 | - | degree |
| Threshold Current | Ith | - | 35 | 45 | mA |
| Operating Current | If | - | 250 | 350 | mA |
| Operating Voltage | Vop | - | Forward voltage is typically:Vf = 1.5 V + Iop x Rs | - | V |
| Series resistance | Rs | - | 4.0 | 6.0 | Ω |
| Thermal resistance | Rth | - | 60 | - | °C/W |
| Recommended case temperature | T c | -20 | - | 30 | °C |
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Typ. | Max. | Unit |
| Reverse voltage | Vrl | - | - | 3 | V |
| Case operating temperature | Top | -20 | - | 50 | °C |
| Storage temperature range | Tstg | -40 | - | 80 | °C |
| Lead soldering temperature | Tis | - | - | 250 | °C (5 sec.) |
Monitor Photodiode
| Parameter | Symbol | Min. | Typ. | Max. | Unit |
| Sensitivity | - | 0.1 | - | 20 | µA/mW |
| Capacitance | - | - | 6 | - | pF |
| Breakdown voltage | Vbd | - | 25 | - | V |
| Operating voltage | Vop | - | 10 | - | V |
Description:

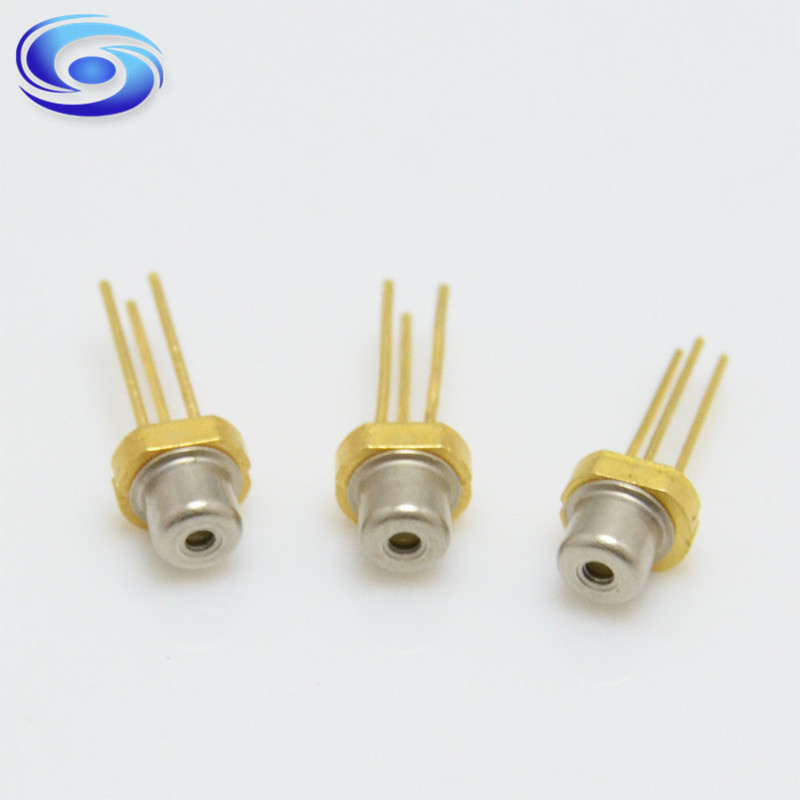

1. Small Package 5.6mm Diameter.
2. Low astigmatism and high reliability.
3. Cheap price high quality single mode 830nm 200mw infrared laser diode .
4. Package details: Plastic box package, it depends on different kinds of laser diodes with different sizes.Normally 100pcs in one tray, 10 trays in one bag ,then 10 bags in one carton box.
