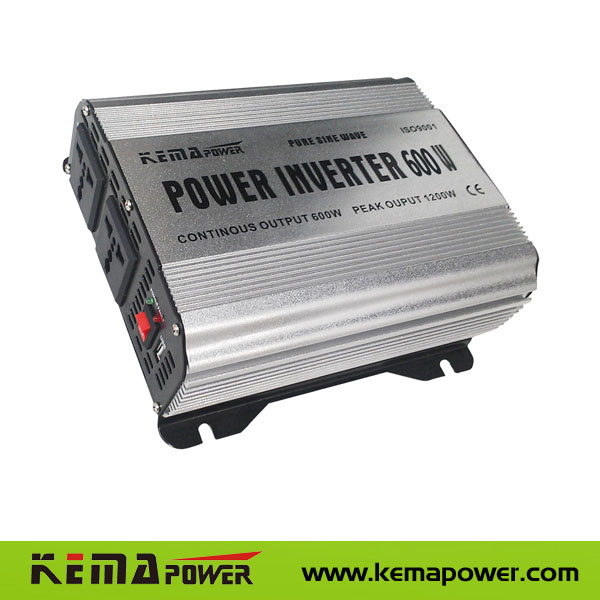

Jdsw 600 (D) High Frequency Power Inverter

Name: Jdsw 600 (D) High Frequency Power Inverter
Brand: all-electronics-online.com
SKU: 831122595
Availability: InStock
Rating: 4.7 (148 reviews)

Price:	US $ 64.05-76.43/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JDSW600(D)
Product Name:	Jdsw 600(D) High Frequency Power Inverter

Product Description

JDSW 600(D) High Frequency Power Inverter

1 Pure sine wave high frequency design

2 Small and light, high efficiency

3 Lower static current

4 Full protection for over temperature, over load and short circuit

5 With USB port

6 LED or digital display and alarm

7 Aluminous case

8 Fan cooling

9Use for off grid solar power system and the others

Technical Specifications

MODEL	JDSW600 (D)
DC INPUT VOLTAGE	12/24VDC
DC INPUT RANGE	11V-15VDC or 22-30VDC
OUTPUT CAPACITY	600W
SURGE CAPACITY	960W
STATIC CURRENT	0.85A
THD	≤5%
EFFICIENCY(FULL LOAD )	≥85%
MAX EFFICIENCY	≥90%
OUTPUT VOLTAGE(NO LOAD )	110V or 220V
OUTPUT FREQUENCY	50 or 60HZ±0.5HZ
USB OUTPUT	5V 500Ma
BATTERY LOW ALARM	10.2V-10.8V or 20.4V-21.6V
BATTERY LOW CUT POINT	9.2V-9.8V or18.4V-19.6V
RESUME VOLTAGE	11.7V-12.3V or 23.4V-24.6V
SHUT OFF VOLTAGE AT OVER-VOLTAGE	15.0V-16.0V or 30V-32V
OVER LOAD PROTECTION	Yes
OVERCURRENT PROTECTION	Yes
SHORT CUICIRT	Yes
OVER TEMP. PROTECTION	Yes
LED DISPLAY	Green LED (Power) Red( Fail or protection ), JDSW and JDSW-D
Digital display	AC ON (888), I/P VAC (U) O/P Watts (P), JDSW-D only
Product Size(mm)	33521473mm
Carton size(mm)	425390250mm
Carton weight (kg)	11.2
PCS /CTN	3

Product Show:

Trade Show:

Certification:

Foshan Kemapower Electronics Co., Ltd. is a leading manufacturer and trader of electronics and electrical equipment with over 10 years experience in this field, and with wide worldwide export in many other countries and regions as well as over 30 sales branches and agents in China. We specialize in manufacturing and supplying UPS, Power inverter, Battery charger, Battery, Solar street lamp kit, solar power system, AC voltage regulator, and other electrical power products. We are a company with ISO certificate and all of our products are designed and produced in accordance with ISO rules. The most of products have passed the CE certificate of EU, UL certificate of U. S. A.

Our products not only occupy a large share in Chinese market but also export to many other countries and regions including USA, Arabia, Middle East, Europe and Southeast Asia with a wide recognition.

Our motto:

- Take Quality First. We believe that success is in the details.

- Good Faith Utmost. We believe that quality products start with quality people.

- Specialized and professional with well skilled focus

Quality requirements of our products and services will be specified into every step of the whole process. Honesty is the most essential quality and character that every our employee shall have.

Market and sales policies

We, Kemapower Electronics Co., Ltd believe that our large success in market is based on three main policies.

- Long-term cooperation

It is our aim in establishing our relationship with every customer and helping him to win a constant development.

- Price positioning strategy

Small profits but quick turnover is our business experience. We always supply our high quality products with the best prices based on our quality criterion.

- After-sale service and support

As we all know, in the global world, where there are no limits anymore, the competition in every field is getting more thorough. High quality products based on strategy of total quality management is the key point. We believe that high quality is a must. Meanwhile, we believe that we need to differentiate ourselves in order to create customer satisfaction.

Obviously Customer satisfaction is the key word for the success. We believe that both our customers and we will achieve great successes in global market as well as in Chinese market in a win-win situation based on our abundant resource and Specialized and professional experience in the Power Products field.
