Jdsw300-3000W (D) DC to AC Power Inverter

Name: Jdsw300-3000W (D) DC to AC Power Inverter
Brand: all-electronics-online.com
SKU: 828622525
Availability: InStock
Rating: 5 (69 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JDSW300-3000W(D)
Product Name:	Jdsw300-3000W(D) DC to AC Power Inverter
Efficiency(Full Load ):	≥ 85 %
Input:	11V-15VDC or 22-30VDC

Product Description

JDSW300-3000W(D) DC TO AC power inverter

Key features

1.Pure sine wave high frequency design

2.Small and light, high efficiency

3.Lower static current

4.Full protection for over temperature, over load and short circuit

5.With USB port

6.LED or digital display and alarm

7.Aluminous case

8.Fan cooling

9.Use for off grid solar power system and the others

Technical Specifications

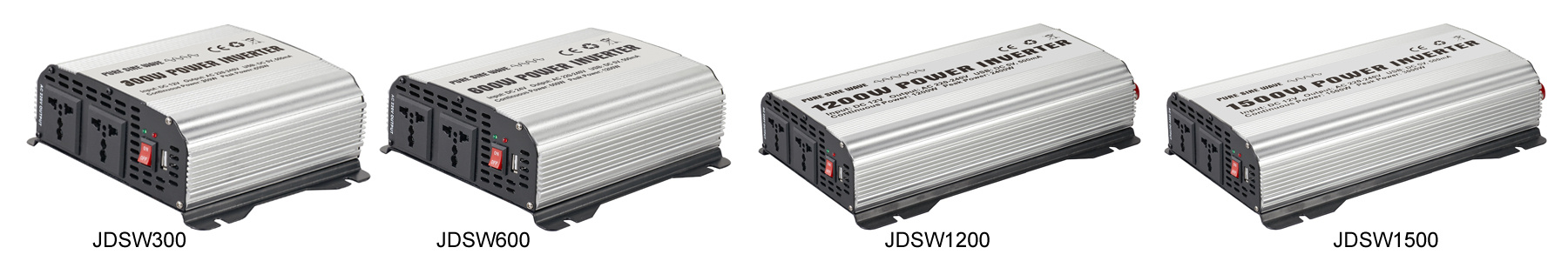

MODEL	JDSW300 (D)	JDSW600 (D)	JDSW1200 (D)	JDSW1500 (D)	JDSW 2200W(D)	JDSW 3000W(D)
DC INPUT VOLTAGE	12/24VDC	12/24VDC	12/24VDC	12/24VDC	12/24VDC	12/24VDC
DC INPUT RANGE	11V-15VDC or 22-30VDC
OUTPUT CAPACITY	300W	600W	1200W	1500W	2200W	3000W
SURGE CAPACITY	480W	960W	1920W	2400W	4400W	6000W
STATIC CURRENT	0.7A	0.85A	0.9A	0.95A	1.00A	1.05A
THD	≤5%
EFFICIENCY(FULL LOAD )	≥85%
MAX EFFICIENCY	≥90%
OUTPUT VOLTAGE(NO LOAD )	110V or 220V
OUTPUT FREQUENCY	50 or 60HZ±0.5HZ
USB OUTPUT	5V 500Ma
BATTERY LOW ALARM	10.2V-10.8V or 20.4V-21.6V
BATTERY LOW CUT POINT	9.2V-9.8V or18.4V-19.6V
RESUME VOLTAGE	11.7V-12.3V or 23.4V-24.6V
SHUT OFF VOLTAGE AT OVER-VOLTAGE	15.0V-16.0V or 30V-32V
OVER LOAD PROTECTION	Yes
OVERCURRENT PROTECTION	Yes
SHORT CUICIRT	Yes
OVER TEMP. PROTECTION	Yes
LED DISPLAY	Green LED (Power) Red( Fail or protection ), JDSW and JDSW-D
Digital display	AC ON (888), I/P VAC (U) O/P Watts (P), JDSW-D only
Product Size(mm)	33521473	33521473	46021473	46021473	355250180	355250181
Carton size(mm)	425390250	425390250	550265250	550265250	460315250	460315250
Carton weight (kg)	10.8	11.2	9.6	9.8	6.6	9
PCS /CTN	3	3	2	2	1	1

Product Show:

Trade Show:

Certification:
