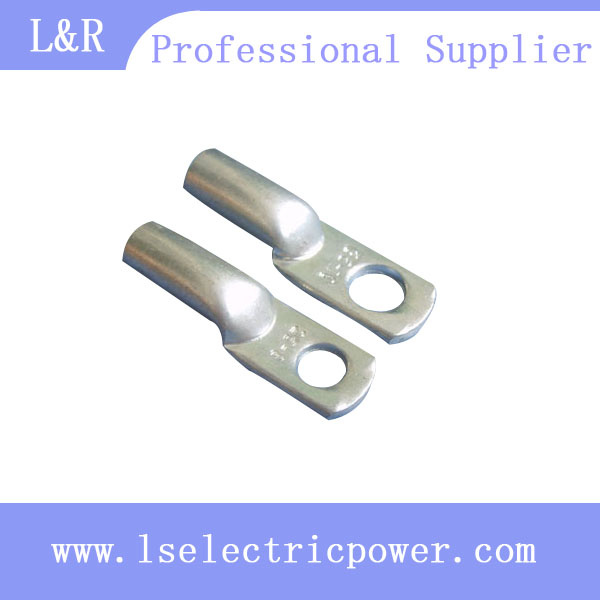

Jg Cable Lug/Connecting Terminals/Copper Lug

Name: Jg Cable Lug/Connecting Terminals/Copper Lug
Brand: all-electronics-online.com
SKU: 783695685
Availability: InStock
Rating: 4.4 (120 reviews)

Price:	US $ 0.01-5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	JG10-6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Screw Hole:	8.5mm-21mm
Surface:	Tin Plating
Samples:	Free Samples
Tin Plating:	Corrosion Resistance
Material:	Copper
Brand:	L&R

Product Description

These products are appliable to the connection of wires in distribution equipent power supply cable with eledctrinic apparatus,it is made of (T2) copper tube by die cast and coated tin.

Model	φ(mm)	d(mm)	D(mm)	L(mm)	W(mm)
JG6-6	6.1	4.5	6.1	31.5	9
JG10-6	6.1	5.9	8.2	38	11.4
JG10-8	8.1	5.9	8.2	38	11.4
JG16-6	6	6.3	9	41	12.5
JG16-8	8	6.7	9.1	41	13.1
JG16-10	10	5.4	9.1	41	13.2
JG25-6	6.1	7.1	9.9	45.3	15
JG25-8	9	7.6	10	46.6	14.3
JG25-10	10	7.1	10	46.6	14
JG35-8	8.2	8.7	11.4	51.1	16.2
JG35-10	10	8.4	11	52	15.6
JG35-12	12.5	8.6	11.3	51.6	17.3
JG50-8	8	9.9	12.8	53.7	18.8
JG50-10	10	10.3	13	53.7	19
JG50-12	12.3	9.9	13	55	18.7
JG70-8	8	12.3	16	61.7	22.8
JG70-10	10	12.1	16	61.7	22.8
JG70-12	12	12.4	16.1	61.9	23.3
JG95-8	8	13.4	17	64.7	24.7
JG95-10	10	14.4	18.1	65.5	26.2
JG95-12	12.2	13.9	17.3	65.5	26
JG95-14	14.4	13.7	17.2	65.5	26
JG120-8	8.5	14.8	18.8	73.3	27.6
JG120-10	10.8	15	19.1	72.5	27.9
JG120-12	12.5	14.8	19	72.7	27.1
JG120-14	14.5	14.5	18.6	72.5	27.1
JG120-16	16.5	14.5	19	74.1	27.6
JG150-12	12.7	17.2	21.3	78.3	30.8
JG150-14	14.5	17.2	20.8	79.7	30.4
JG150-16	16.5	16.8	22	78.6	32
JG185-12	12.7	19.3	24.7	85.8	34.6
JG185-14	14.5	19.2	24.5	86	34.7
JG185-16	16.5	18.4	23.2	87.4	34.5
JG240-12	12.7	20.8	26	92.7	37.8
