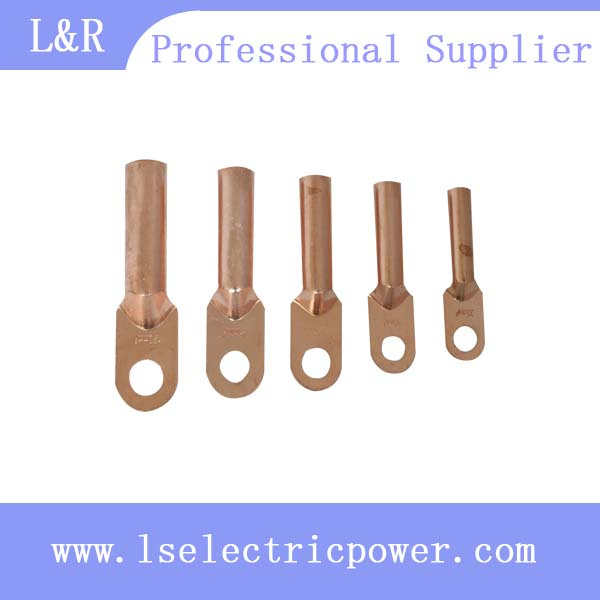

Wholesale Dt Copper Cable Lug (Oil-plugging) / Terminal /Connector/Cable Lug

Name: Wholesale Dt Copper Cable Lug (Oil-plugging) / Terminal /Connector/Cable Lug
Brand: all-electronics-online.com
SKU: 783681835
Availability: InStock
Rating: 4.7 (82 reviews)

Price:	US $ 0.01-5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DT-10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Single Hole Terminals
Material:	Copper
Application:	Conduct Electricity
Brand:	L&R

Product Description

Connecting terminals are suitable for the conjunction of wires,cables in the distribution and the electrical equipment.DL series of aluminium connecting terminals are pressed with aluminium bar(L3),DT series of connecting terminals with copper bar(T2).

m No.	Cable spec(mm2)	Dimensions(mm)
m No.	Cable spec(mm2)	D	d	L	L1	W	φ	T
DT-10	10	9	5	68	28	16	8.5	3.8
DT-16	16	10	6.4	68	33	16	8.5	4
DT-25	25	11	7.4	70	34	16	8.5	4
DT-35	35	12	8.7	80	38	20	10.5	4
DT-50	50	14	9.7	90	43	23	10.5	5
DT-70	70	16	11.7	95	45	26	12.5	5
DT-95	95	18	13.7	105	49	28	12.5	5
DT-120	120	20	15.2	112	53	30	14.5	6
DT-150	150	22	16.7	120	55	33	14.5	6
DT-185	185	24	18.7	126	57	37	17	6.5
DT-240	240	27	21	136	58	40	17	6.5
DT-300	300	30	23	160	67	50	17	7
DT-400	400	32	26	168	75	50	21	7.5
DT-500	500	35	29	190	75	60	21	9.5
DT-630	630	45	35	220	85	80	21	9.5
DT-800	800	50	38	260	85	80	21	10

Zhejiang Lawrence Electric Co., Ltd (referred as L&R) is located in Zhejiang China. It is composed by some branch companies, we also invested some domestic and foreign EPC projects.

L&R has possessed one of the major suppliers in the power and electrical fields for electrical

Projects in the world. Almost all products manufactured by the L&R members have been certified

By KEMA, CE, SGS and CNAS approved Lab.

L&R have been supplying Zinc Oxide Varistors, Surge Arresters, insulators, Fuse Cutouts, Air

Break switch, Load break switch, Vacuum Circuit Breaker, Isolators, Transformers, Switchgear,

Earth rods, Stay Rods, Pole Make Off, Guy grip, stay wire, Crossarm, clamp, bolts, Line hardware

And so on. Our member companies are required to have a long term proven track record of meeting contract

Obligations, superior quality, current technology and state-of-the-art manufacturing facilities.

Over a period of 10 years, our business has extended to South America, Middle East, Southeast

Asia, Africa, and other regions, and we had our sale agent and 4S maintenance company in some countries. To achieve the strategic objective of development, we are seeking for partners

For our sale agent and maintenance company in all the worldwide.
