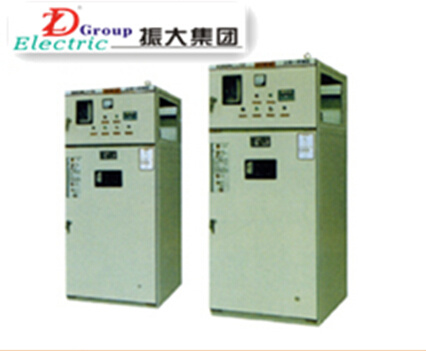

Jj1 Series of Auto Voltage Reducing Starting Control Cabinet Switch Cabinet
| Price: |
US $ 1500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Product Description
Note: the first working combination: 8 hours working time; uninterrupted working system; short-time working system; 3 times each hour during intermittent periodic duty , and 6 times each hour during the aperiodic operation, and then the temperature should be the same as that of the ambient.
The second working combination: 8 hours working time; uninterrupted working system; short-time working system; 3 times each hour during intermittent periodic duty , and 12times each hour during the aperiodic operation, and then the temperature should be the same as that of the ambient.
1) the main technical parameters see table 1
2) the starting performance
a. 2 times of uninterrupted starting, starting time 15s, interval time 30s
b. one time or several times of uninterrupted starting., the total starting time see table 1. the temperature of the autotransformer should be the same or lower than the ambient temperature when restart- current transfer realize the transfer from starting to operation: when the starting current is 1.5 times lower than the rated working current, 4) the protection of the autotransformer is by forced transfer of the current-time equipment
| Serial No. | Specification | Working current reference value (A) | Current transfer reference value (A) | Thermal relay current reference value (A) | MAX total starting time (S) | Automatic switch electromagnetic trip rated current (A) |
| 1 | JJ1B-11/380-1 | 22 | 3.3 | 22 | 30 | 32 |
| 2 | JJ1B-15/380-1 | 29 | 4.4 | 29 | 30 | 40 |
| 3 | JJ1B-18/380-1 | 36 | 5.3 | 36 | 40 | 40 |
| 4 | JJ1B-22/380-1 | 42 | 4.2 | 42 | 40 | 40 |
| 5 | JJ1B-30/380-1 | 57 | 5.7 | 57 | 40 | 63 |
| 6 | JJ1B-37/380-1 | 70 | 5.3 | 70 | 60 | 80 |
| 7 | JJ1B-45/380-1 | 84 | 6.3 | 84 | 60 | 100 |
| 8 | JJ1B-55/380-1 | 103 | 3.8 | 103 | 90 | 125 |
| 9 | JJ1B-75/380-1 | 140 | 5.2 | 140 | 90 | 180 |
| 10 | JJ1B-100/380-2 | 184 | 4.6 | 3.0 | 90 | 200 |
| 11 | JJ1B-115/380-2 | 219 | 5.4 | 3.7 | 90 | 250 |
| 12 | JJ1B-135/380-2 | 252 | 3.1 | 2.1 | 90 | 315 |
| 13 | JJ1B-190/380-2 | 351 | 4.3 | 2.9 | 90 | 400 |
| 14 | JJ1B-225/380-2 | 407 | 3.8 | 2.5 | 90 | 500 |
| 15 | JJ1B-260/380-2 | 469 | 4.4 | 2.9 | 90 | 530 |
| 16 | JJ1B-300/380-2 | 537 | 5.0 | 3.4 | 90 | 630 |
| 17 | JJ1K-100/380-2 | 184 | 4.6 | 3.0 | 90 | 200 |
| 18 | JJ1K-115/380-2 | 219 | 5.4 | 3.87 | 90 | 250 |
| 19 | JJ1K-135/380-2 | 252 | 3.1 | 2.1 | 90 | 315 |
| 20 | JJ1K-190/380-2 | 351 | 4.3 | 2.9 | 90 | 400 |
| 21 | JJ1K-225/380-2 | 407 | 3.8 | 2.5 | 90 | 500 |
| 22 | JJ1K-260/380-2 | 469 | 4.4 | 2.9 | 90 | 500 |
| 23 | JJ1K-300/380-2 | 537 | 5.0 | 3.4 | 90 | 600 |
Established in the middle of 90's, Shanghai Zhenda group has a dozens of subsidiary companies. The group mainly engaged in transmission and distribution equipment, metallurgical industry, green energy, real estate and energy efficient electrical products.
Shanghai Zhenda Complete sets of Electrical Co., Ltd which is managed and holded by the group mainly manufacture busway, cable bridge and complete sets of HV/LV switchgear. As producing designated enterprise of HV/LV complete sets of equipment of departments of national machinery and power supply industry, Shanghai Zhenda Complete sets of Electrical Co., Ltd has two production bases in Taizhou city named Jiangsu Zhongyuan Electrical Limited Company and Jiangsu Aiqing cable bridge and busway equipment Company. The factories cover an area of 35, 000 square meters with the building area of 20, 000 square meters. The company has international advanced production equipment including 3 flexible production lines, stored energy spot, welding machine, CNC bus machine, CNC punching machine and more than 20 sets of large equipment and so on. All of the employees is more than 150 people, including over 20 professional engineers. Based in the center of the international metropolis Shanghai, with the support of the Group's production scale, manufacturing standards and R&D capabilities, Zhenda has become one of the largest scale and most competitive manufacturer of transmission and distribution equipment company.
Shanghai Zhenda Complete sets of Electrical Co., Ltd takes the lead to pass the authentication of ISO9001-2000 and CCC National Compulsory authentication and makes a number of product patents in particular ZDMC series busway (Patent Number: ZL-2008.2013538.8) that has reach international first-class level.
The company has modern enterprise management, complete quality inspection system, strict testing standards and good after-sales service, which make us get into the market evaluation to be the best. Company is evaluated as "China star enterprise", "A level honor enterprise" and "contract and credit enterprise" and so on.
Adhering to the innovation development double win business philosophy, Group is growing at an annual rate of more than 30% expansion and establish long term cooperation with many well-known domestic and foreign electrical automation companies.
