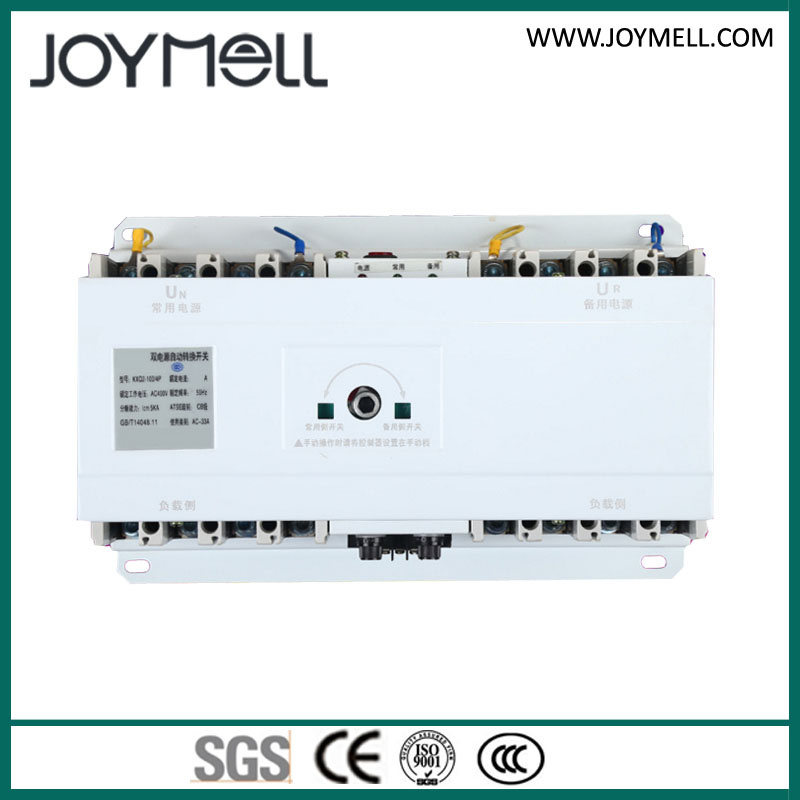

Jq3m Generator MCCB Transfer Switch 16A~630A

Prod Model:	JQ3M
Rated Current:	16A~630A
Pole:	3pole, 4pole
Frequency:	50Hz, 60Hz
HS Code:	853650000
Install:	Screw Install

Product Description

JQ3M Generator MCCB Transfer switch 16A~630A


Application:
JQ3M series Automatic Transfer switch is MCCB type transfer switch. Widely used at the field of important power supply site, which transport, distribution power supply system. For fire protection,hospital,bank,building, etc, where doesn't allow power off. According to IEC60947, GB14048 etc.

Features:
1. Compact size, easy operation, mechanical and electric interlock double protection, stable performance. Rated current up to 1600A.
2. Working modes: Automatic, Manual, Power indicator, Main-power close indicator, standby power close indicator.
3. Protections are : Overload protection, Short-circuit protection, Isolating, Short-voltage protection, Over-current protection, output indicator.

Drawing &Dimension:

Type	External dimensions			Mounting dimensions
	L	W	H	L1	W1	Φd
JQ3M-3P/100	285	260	210	190	135	8
JQ3M-4P/100	315	285	210	190	135	8
JQ3M-3P/225	325	300	215	195	155	8
JQ3M-4P/225	360	330	215	195	155	8
JQ3M-3P/400	465	430	310	285	210	8
JQ3M-4P/400	500	450	310	285	210	8
JQ3M-3P/630	525	470	315	295	215	8
JQ3M-4P/630	580	540	315	295	215	8
JQ3M-3P/800	670	602	350	320	340	8
JQ3M-4P/630	728	658	350	320	340	8
JQ3M-3P/1250	710	680	370	340	350	8
JQ3M-4P/1250	780	740	370	340	350	8

Other your products series:

Manual transfer switch	1A~1600A, 3P/4P.
Automatic Transfer switch	1A~3200A, 2P/3P/4P.
Metal power distribution box	Metal box, size can color can be customized.
Plstic box	Different ways, competitive price,  welcome to contact
Surge protector	B,C,D Class, AC, DC type you can choose. Different types and  discharge current you choose.
Power supply	Hot used in Gepenerator system, 120W 12/24V. And other types
Current transformer	Different size you can choose, quality guarantee,  hot used in Generator cabinets.
Push button	Metal or plastic, different types for power cabinet.

Q&A:
1) Q:Your company ?
     A:   Joymell is factory for ATS, Enclosure, Power supply, Current transformer etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 etc.
2)  Q:   Do you have forwarder?
      A:   Yes, we have good forwarder cooperated over 7years, they help us import and export . For small package orders, suggest to use by Express.
3)   Q:   Your address ?
      A:    Locates in Zhejiang province, Baixiang town, Chandong industrial zone.
4)   What's the ATS guarantee?
       A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
5)    What's about MOQ? Delivery time ?
       A: 1pcs for ATS. Normally less than 1000A ATS with stock, quick support.
6)    What's the payment term?
       A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.
7)    What's your contact information ?
        Website: www.joymell.com, welcome to contact us anytime.
