Yueqing Winston Electric Co., Ltd. >> Jqx-115f Mini Relay Miniature PCB Relay with CE

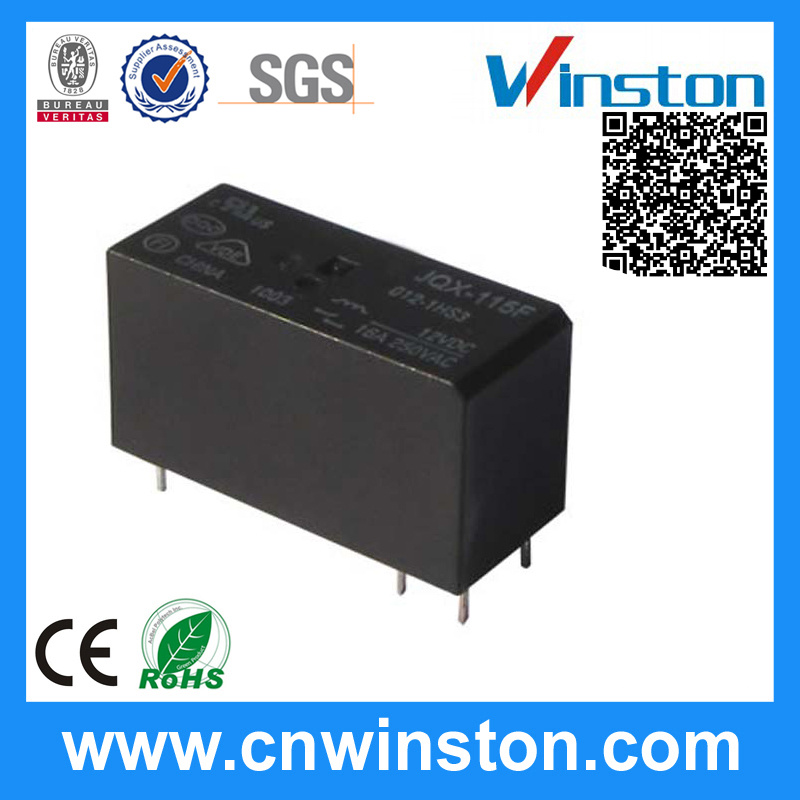

Jqx-115f Mini Relay Miniature PCB Relay with CE

Jqx-115f Mini Relay Miniature PCB Relay with CE
Price: US $ 0.1-1/Piece
Trade Terms: FOB
Min Order: 100/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: JQX-115F
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe
Current: 20A
Brand: Winston
Protect Feature: Sealed
Contact Load: : Low Power
Contact Form: 1z, 1h, 1d 2z, 2h, 2D
Max. Switching Current: 10A
Terminal Type: PCB Mounting
Coil Power: 0.4W

Product Description

Specifications

JQX-115F Miniature relay / pcb relay / pcb mounting relay
1 widely exported to middle east, Asia, Europe, etc
2 fast delive

Product Description
JQX-115F Miniature relay / pcb relay / pcb mounting relay

Our company have more other Power relay, PCB relay, Air-conditioning relay, General-purpose relay, Automotive relay, Magnetic latching relay, Time relay, Solid state relay types, welcome to contact us for deails.

Contact Specification


Contact form


1Z, 1H, 1D 2Z, 2H, 2D


Contact resitance


≤100mΩ ( 1A 6VDC )


Contact material


AgCdO AgSnO 2


Contact capacity


16A 250VA/30VDC 8A 250VAC/30VDC



Technical Specification


Insulation resistance


≥1000 Mω(500VDC)


Dielectric strength


Between coil and contacts≥5000VAC 1min


Between open contacts≥1000VAC 1min


Between contacts of different poless≥2500VAC 1min


Operate/Release time


≤15ms/5ms


Terminal type


PCB mounting



Coil Specification


Rated coil power


0.4W



Coil Data


Nominal voltage


Operate voltage


Release voltage


Coil resistance


VDC


VDC


VDC


Ω± 10%


5


3.75


0.5


55


6


4.5


0.6


68


12


9.0


1.2


270


24


18.0


2.4


1087


48


36.4


4.8


4347


60


48.0


6.0


7500


110


82.5


11.0


27170



Coil Data


Nominal voltage


Operate voltage


Release voltage


Coil resistance


VAC


VAC


VAC


Ω± 10%


24


19.2


7.2


350


110


88.0


33.0


8100


230


184.0


69.0


32500
