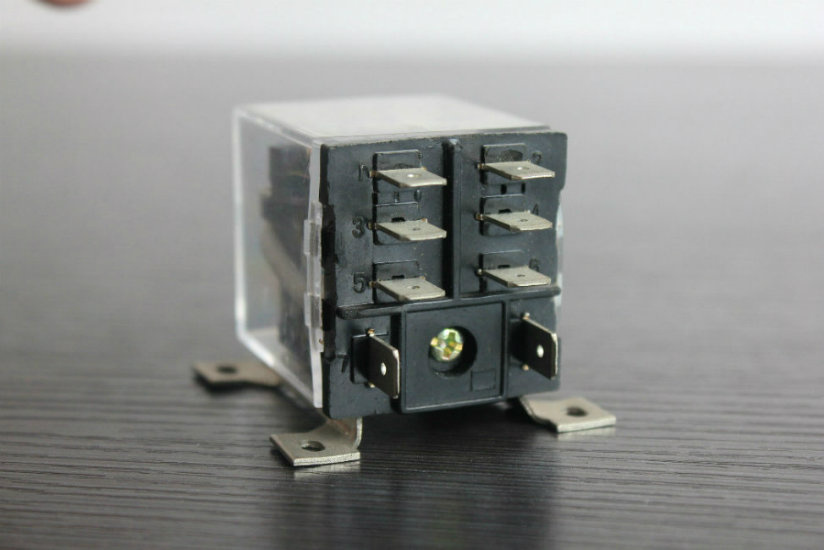

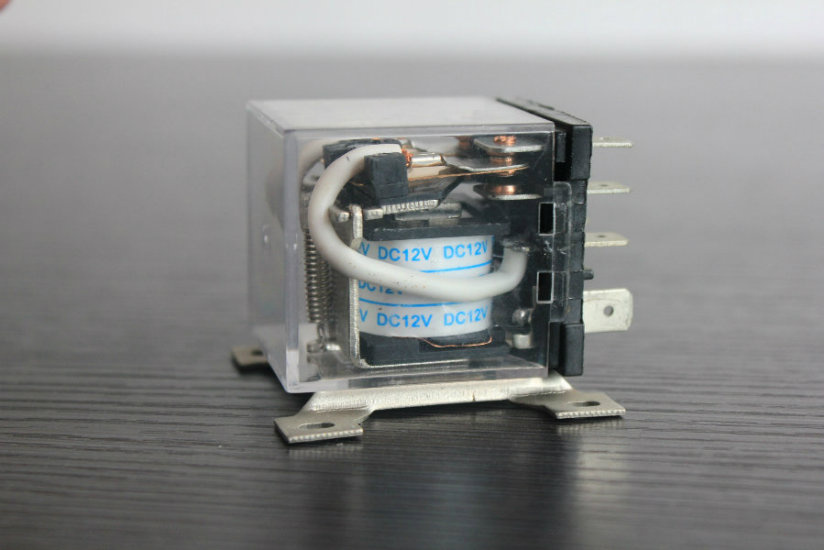

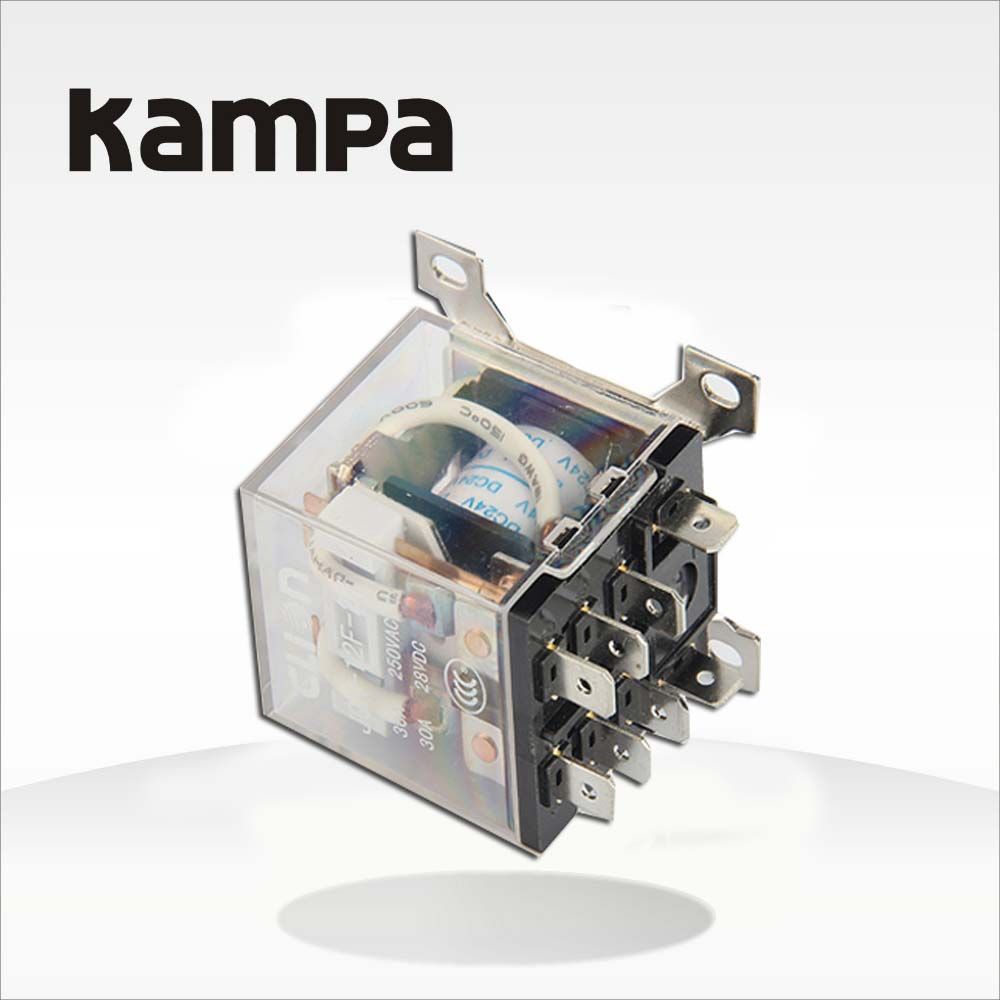

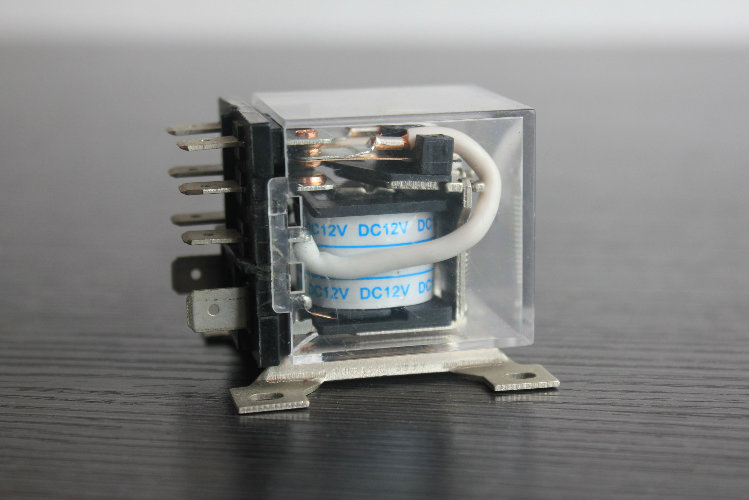

Jqx-12f 2z DC 12V 30A Dpdt 8 Pin General Purpose Big Power Relay

Name: Jqx-12f 2z DC 12V 30A Dpdt 8 Pin General Purpose Big Power Relay
Brand: all-electronics-online.com
SKU: 818421835
Availability: InStock
Rating: 4.9 (96 reviews)

Price:	US $ 3.62/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JQX-12F
Form:	2A,2b,2c
Rated Load:	30A
Max Switching Voltage:	250VAC/30VDC
Contact Resistance:	≤100mΩ
Material:	Silver Alloy

Product Description

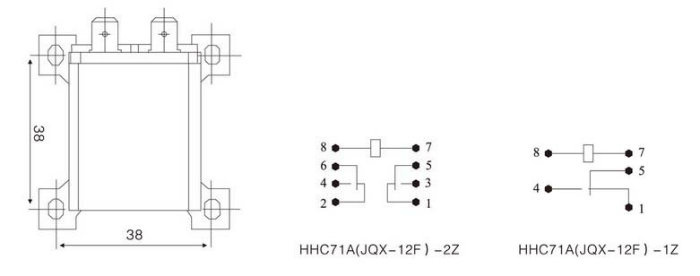

Dimension		*40mm40mm40mm*
Contact	Contact form	1Z.1H.1D	2Z,2H,2D
	Rated load	20A	30A
	Max switching voltage	240VAC/28VDC
	Contact resistance	≤100mΩ
	Material	Sliver alloy
	Electrical life	≥100000
	Mechanical life	≥1000000
Max allowed voltage		DC≤75%x rated voltage
Release voltage		AC≤60%xrated voltage
Nominal voltage	DC	6V~220V
	AC	6V~380V
Coil voltage	DC	DC:2.0W
	AC	AC:4VA
Operate time		≤25ms
Release time		≤15ms
Insulation resistance		>100mΩ(500VDC)
Ambient temperature		-25~5ºC
Ambient Humidity		45%~75%RH
Weight		70g/150PCS/CTN/12.5KG/CTN
