Jqx-30f 220VDC 30A Coil Miniature Electromagnetic Power Relay

Name: Jqx-30f 220VDC 30A Coil Miniature Electromagnetic Power Relay
Brand: all-electronics-online.com
SKU: 818415095
Availability: InStock
Rating: 4.7 (69 reviews)

Price:	US $ 2.5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JQX-30F
Form:	2A,2b,2c
Rated Load:	30A
Max Switching Voltage:	250VAC/30VDC
Contact Resistance:	≤100mΩ
Material:	Silver Alloy

Product Description

Power Relay: JQX-30F
Coil voltage:DC5-60V,AC12-220V
Contact Specification
Contact form		2Z,2H,2D
Contact resistance		≤100MΩ(1A 6VDC)
Contact material		AgCdO AgSnO2
Contact capacity		30A 250VAC/30VDC
Technical Specification
Insulation resistance		≥1000MΩ.500VDC
Dielectric strength		BCC ≥ 2500VAC 1min
		BOC ≥1200VAC 1min
Operate / Release Time		≤20ms/15ms
Terminal type		Quick terminal mounting
Coil Specification
Rated coil power: DC1.5W AC2.5VA
Coil Data
Nominal voltage VDC	Operate voltage VDC	Release voltage VDC	Coil resistance Ω±10%	Nominal voltage VAC	Operate voltage VAC	Release voltage VAC	Coil resistance Ω±10%
6	4.80	0.60	24	12	9.60	3.60	20
12	9.60	1.20	96	24	19.20	7.20	80
24	19.2	2.40	384	48	38.40	14.4	320
48	38.4	4.80	1540	110	88.00	36	1700
60/110	48.0/88	6.00/11.0	2400/8060	220/240	176/176	72/72	6770/806

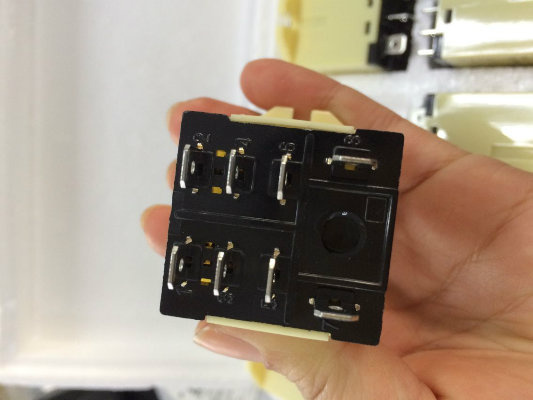

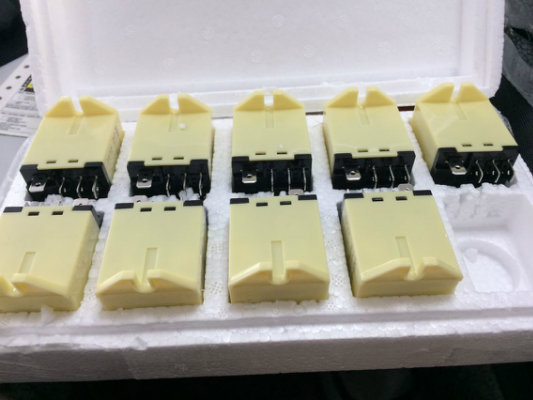

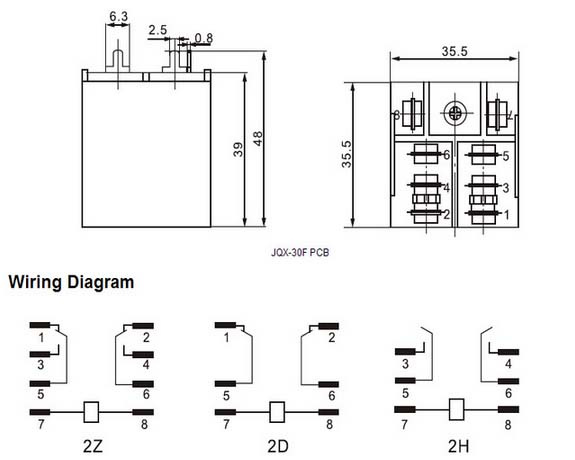

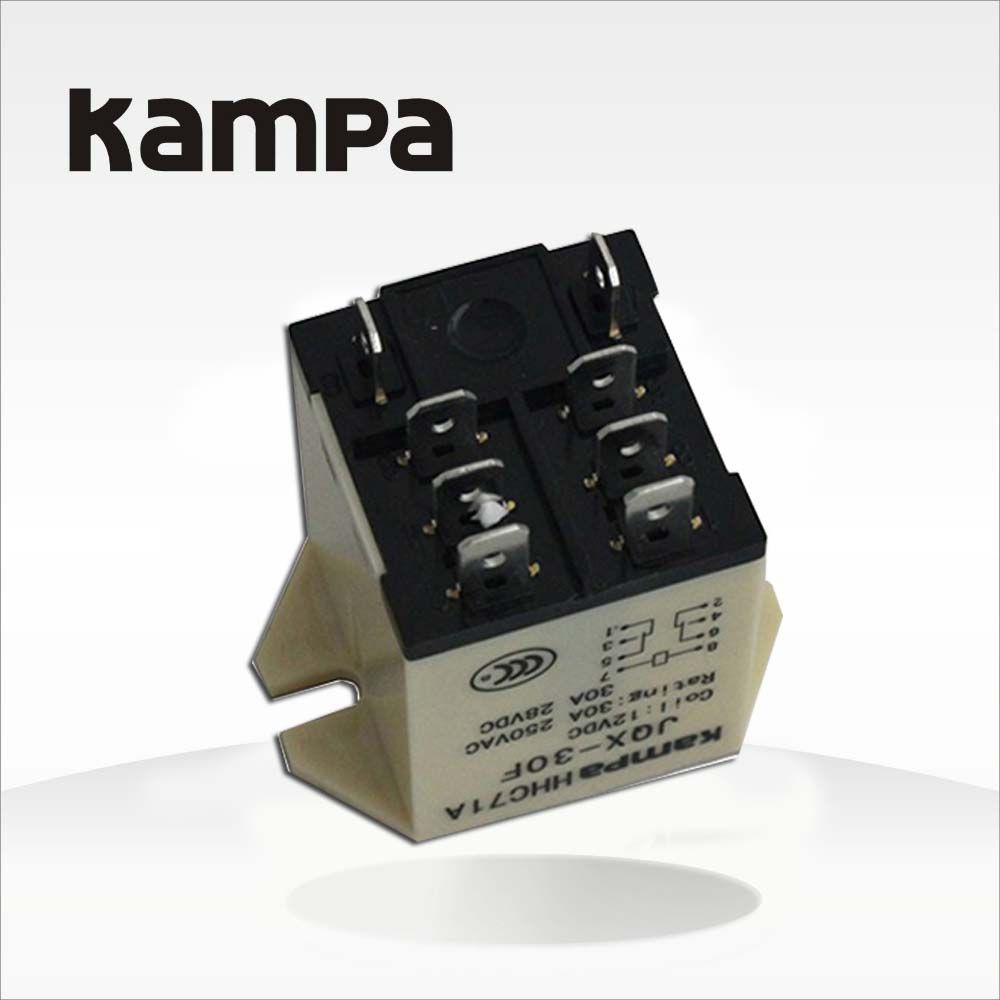

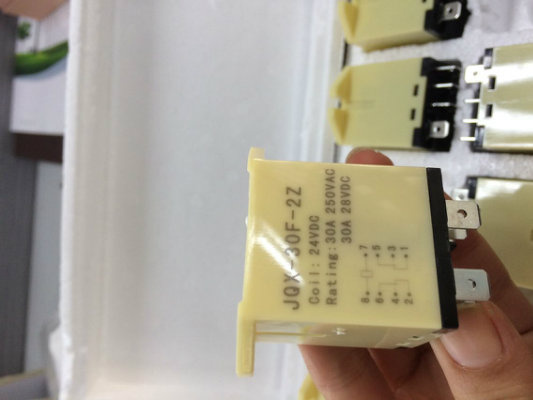

2.Picture
