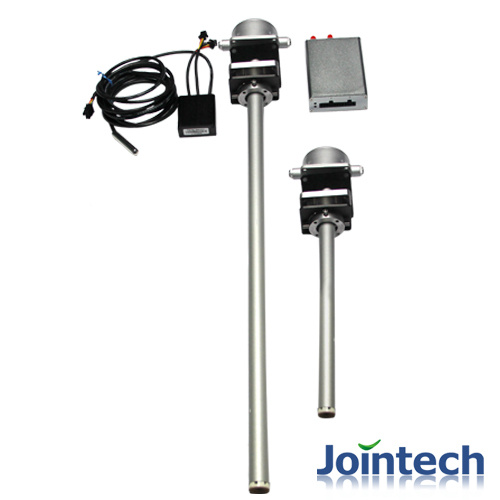

Jt606- High Precision Fuel Level Sensor

Name: Jt606- High Precision Fuel Level Sensor
Brand: all-electronics-online.com
SKU: 674541872
Availability: InStock
Rating: 4.6 (102 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	JT606
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Customized Between 550mm-1m
Function:	Fuel Consumption Monitor
Wide Input:	4-70V
Resolution:	0.5mm
Medium Types:	Diesel, Biodiesel, Kerosenne, Petrol
Digital:	RS232 Eia-485 Can
Accuracy:	0.5%
Sealing:	IP67
Usage:	Liquid Level Sensor
Theory:	Fuel Monitoriing
Material:	Aluminium

Product Description

Fuel level sensor with high precision
1. It can be cut off according to the fuel tank size
2. The accuracy is 0.5%
JT606 is a capacitance type of fuel sensor of high precision, the accuracy is 0.5% and the resolution is 1mm, Voltage type, Current type and Digital type are available, in addition, it can replace the original fuel sensor and support CANBUS.
High precision fuel sensor for tracking system
Working principle:
The sensor part is a coaxes container, capacity between the sensor body and induction electorde would be changed when the oil gets into the container, which can be transformed by the circuit, then get the required signal by precise compensation of linear and temperature.
Accuracy: 0.5%
Resolution: 1mm
Working current: <10mAh
Voltage input: DC 12-28V
Signal outpt:
Resistance, current, voltage(analog signal output)
RS485, RS232(digital signal output)
Installation:
M20× 1.5, M27× 2, M18× 1.5, M16× 1
Flange installation DN25, DN40, DN50
Full/Empty tank adjusment: Remote command configuration
