| Prod Model: |
JY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Core Wire: |
Copper |
| Number Of Stator: |
Single-Phase |
| Function: |
Driving |
| Number Of Poles: |
2, 4 |
| Starting Mode: |
Capacitor Starting |
| Certification: |
CE |
| Brand: |
Qizhen |

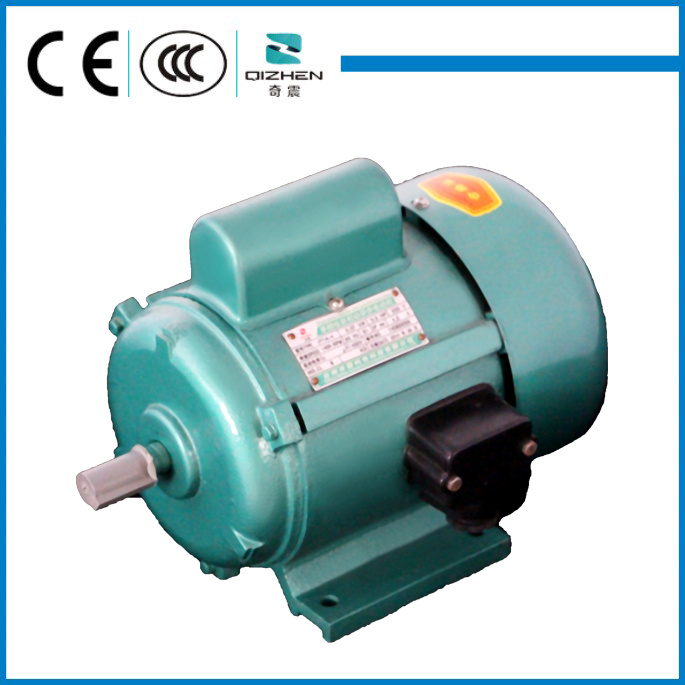

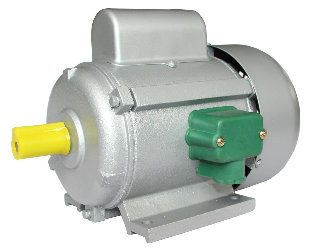

Product Description
JY series asynchronous ac electric fan motor with single phase JY series motor has three types of frame size : 09, 1 and 2. It is totally enclosed fan-cooled.The frames can be of cast iron or aluminum according to customer's request
Construct
|
| Motor | Single phase | |
| aluminum casing |
| 100% Copper Wire |
| Class F insulation |
| IP44/54 Protection |
| Continous work duty type |
| external Ventilation cooling |
Details :Application scope :where a larger starting torque and a limited starting current are required, and can be used as driving motor of air compressors, refrigerators, medical apparatus and any other small machines which demand full load starting.
Technical Data
Frame Size | Model | Power ( KW) | Speed (r/min ) | Efficiency Eff % | power factor | locked rotor torque
Rated torque | Breakdown torque rated torque |
| 2 | JY2A-2 | 1.1 | 2850 | 77 | 0.71 | 2-3.5 | 1.8-2 |
| JY2B-2 | 0.75 | 2850 | 75 | 70 | 2-3.5 | 1.8-2 |
| JY2A-4 | 0.75 | 1400 | 68 | 69 | 2-3.5 | 1.8-2 |
| JY2B-4 | 0.55 | 1400 | 68 | 67 | 2-3.5 | 1.8-2 |
| 1 | JY1A-2 | 0.55 | 2800 | 72 | 66 | 2-3.5 | 1.8-2 |
| JY1B-2 | 0.37 | 2800 | 72 | 66 | 2-3.5
| 1.8-2 |
| JY1A-4 | 0.37 | 1400 | 62 | 64 | 2-3.5 | 1.8-2 |
| JYAB-4 | 0.25 | 1400 | 62 | 60 | 2-3.5 | 1.8-2 |
| 09 | JY09A-2 | 0.25 | 2800 | 72 | 63 | 2-3.5
| 1.8-2 |
| JY09B-2 | 0.18 | 2800 | 72 | 60 | 2-3.5 | 1.8-2 |
| JY09A-4 | 0.18 | 1400 | 62 | 56 | 2-3.5 | 1.8-2 |
Packing
To avoid damp, inner layer wrapped with plastic paper
To lessen vibration, middle layer filled with foam
To avoild squeeze, motor are packed with plywood or wooden case
Customized package is also accept
Our Company
1.We are professional manufacturer with more than 17 years experience in Electric motor
2. We are Alibaba Assessed Gold Supplier and Trade Assurance.
3. Every year 500,000 to 600,000pcs of electric motor were exported to others countries.
4.we test the material before production and three to four times when producing to ensure
the goods in good quality,also we produce according to your quirement
5.Best production capability,best quality control,best service
6.we can be your OEM manufacturer with your authorization of brand.
FAQ
1. Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container, but for the first time cooperation, we accept samples order to check quality.
2. Q: Is it all right to make customers' own brand name?
A: Sure, we can be your OEM manufacturer with your authorization of brand.
3. Q: What are your payment terms?
A: 30% T/T deposit, 70% balance before shipment or L/C at sight.
4. Q: How long is your warranty?
A: One year after receive B/L.
5. Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.
